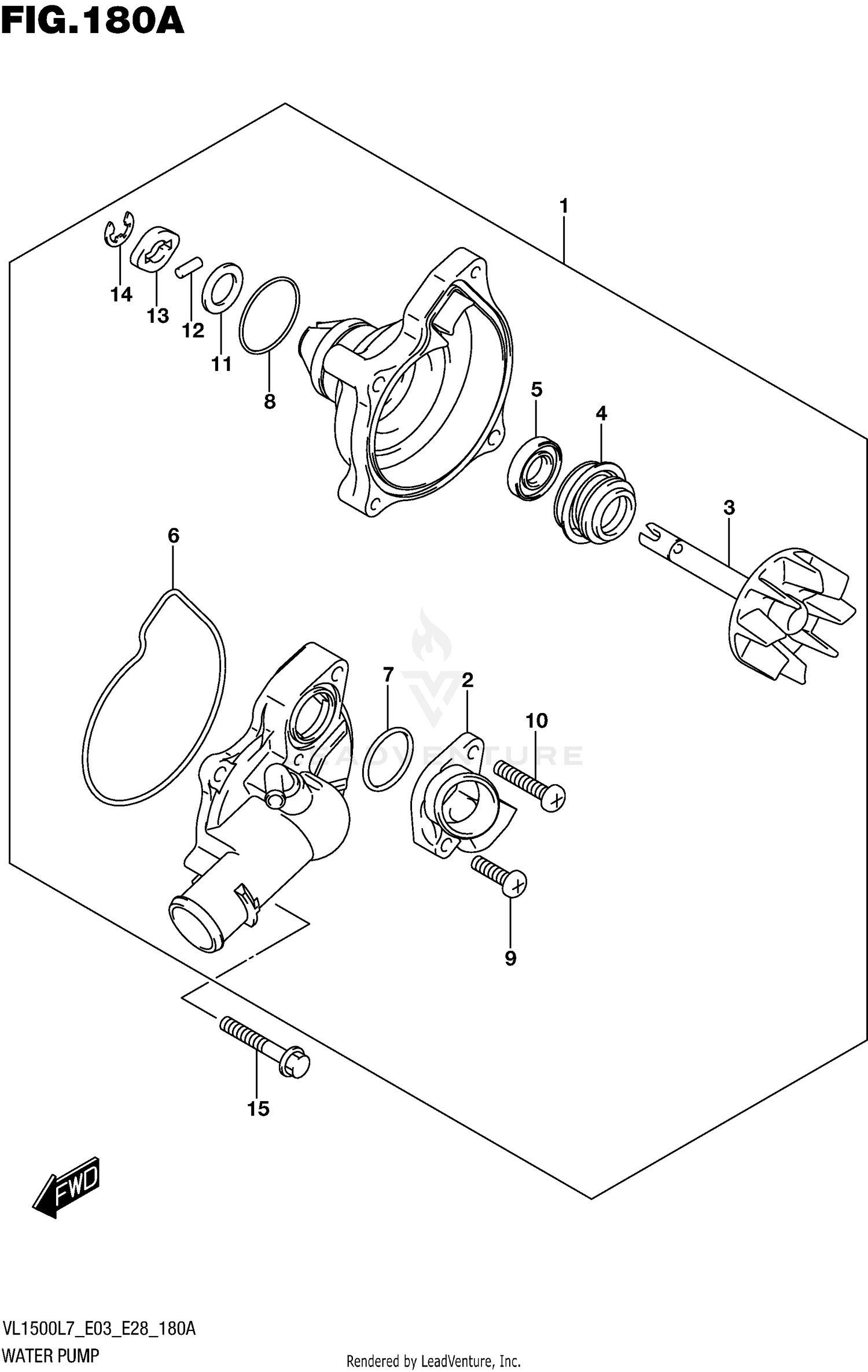

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-40H00
Superseded by 17400-40H01
|
$318.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CONNECTOR
17412-40H00
|
$33.82 | ||
|
Unavailable |
|||
|
#3
.IMPELLER
17491-40H00
|
$43.62 | ||
|
Unavailable |
|||
|
#4
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$36.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
.OIL SEAL
17461-48G00
|
$16.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
17418-40H00
Superseded by 17418-40H01
|
$9.35 | ||
|
Unavailable |
|||
|
#7
.O RING
17417-38A00
Superseded by 17417-38A01
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O RING
17435-33400
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
02112-0620A
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SCREW
02112-0635A
|
|||
|
Unavailable |
|||
|
#11
.WASHER
17432-07G00
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PIN
17482-03G00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CAP
17432-11H00
|
|||
|
Unavailable |
|||
|
#14
.E RING
08332-1108A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0645A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
