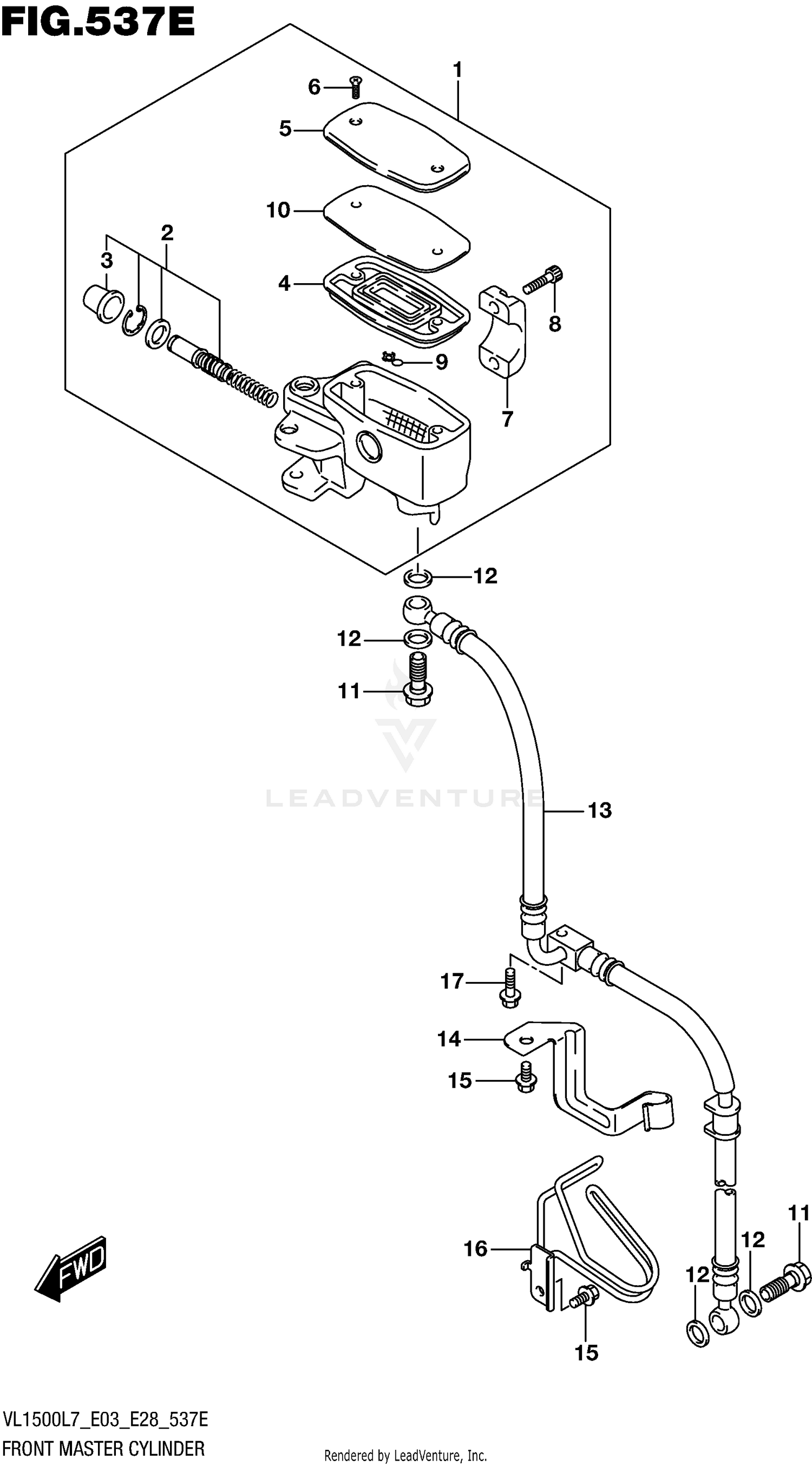

Front Master Cylinder (vl1500tl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-10FM0
|
$294.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
59600-03820
|
$53.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
59666-44300
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
.DIAPHRAGM
59667-10F00
|
$10.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CAP
59669-10F50
|
$37.88 | ||
|
Unavailable |
|||
|
#6
.SCREW
69689-49300
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
.HOLDER
59671-10F20
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
07130-06207
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
.PROTECTOR
59664-32F00
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
.PLATE
57437-10F00
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
UNION
09360-10062
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10X15X1.5)
09161-10009
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
59480-06J10
Superseded by 59480-06J11
|
$122.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, FRONT BRAKE HOSE LH
59271-06J00
|
$9.86 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, FRONT BRAKE HOSE
59540-06J00
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
