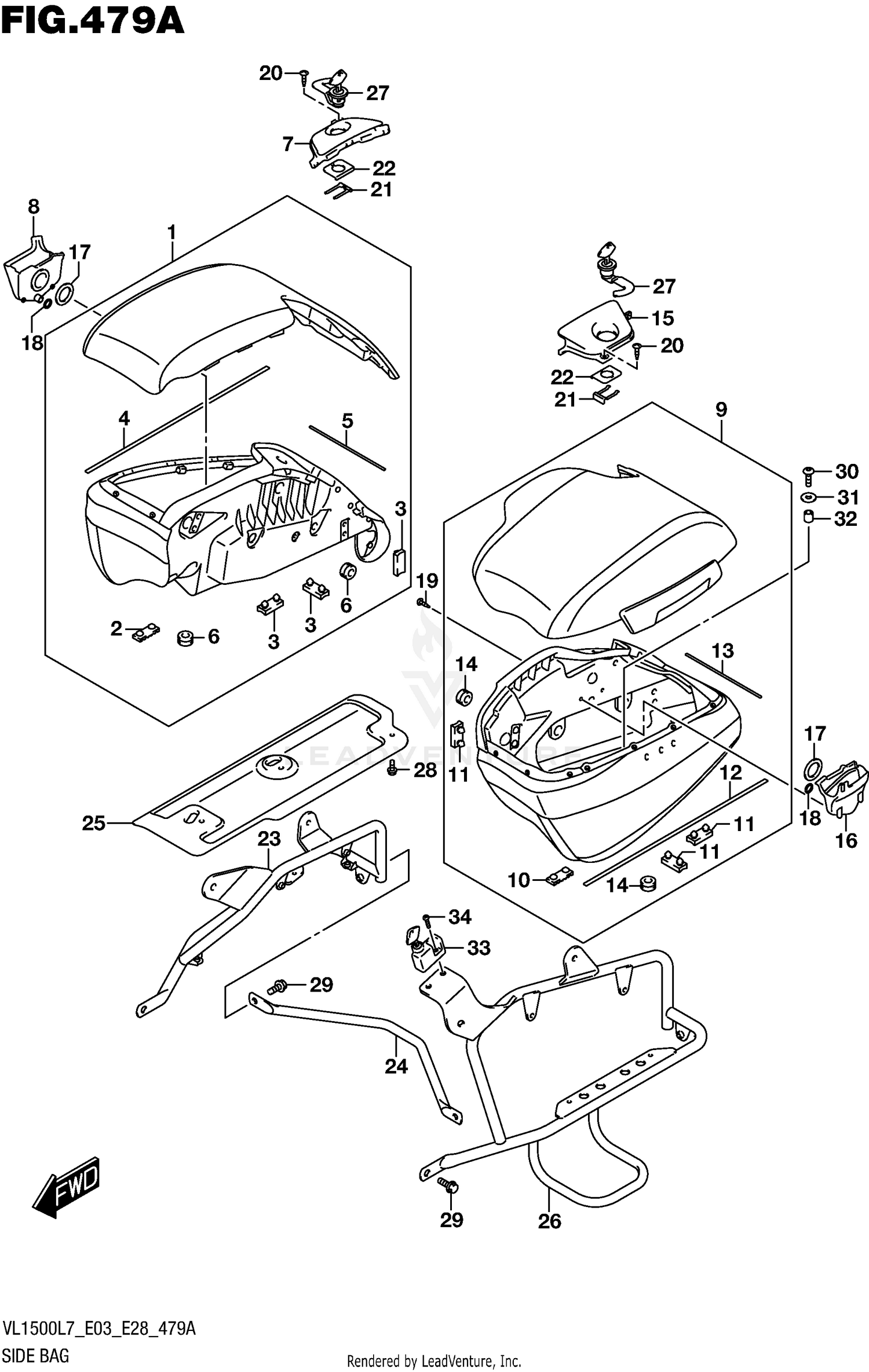

Side Bag (vl1500btl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAG ASSY
95400-06J50
Superseded by 95400-06J51
|
$2,481.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION,SEAT (40X20X6)
45149-12C00
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION, BRACE NO.2
95424-06J00
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CUSHION, UPPER
95439-06J00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION, LOWER
95536-06J00
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CUSHION
09320-11008
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, KEY CYLINDER RH
95418-06J00
|
$40.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TRAY, SIDE BAG RH
95419-06J00
|
$15.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAG ASSY,SIDE,L
95500-06J40
Superseded by 95500-06J42
|
$2,406.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,SEAT (40X20X6)
45149-12C00
|
$7.18 | ||
|
Unavailable |
|||
|
#11
.CUSHION, BRACE NO.2
95424-06J00
|
$4.31 | ||
|
Unavailable |
|||
|
#12
.CUSHION, UPPER
95439-06J00
|
$5.65 | ||
|
Unavailable |
|||
|
#13
.CUSHION, LOWER
95536-06J00
|
$3.34 | ||
|
Unavailable |
|||
|
#14
.CUSHION
09320-11008
|
$3.02 | ||
|
Unavailable |
|||
|
#15
COVER, KEY CYLINDER LH
95518-06J00
|
$13.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
TRAY, SIDE BAG LH
95519-06J00
|
$13.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, TRAY
95533-06J00
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (D:2.4,ID:11.8)
09280-12002
Superseded by 09280-12012
|
$5.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW
03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
03541-0520B
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, SIDE BAG LOCK
45289-11F00
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, SIDE BAG LOCK
95425-06J00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACE, SIDE BAG RH
95470-06J00
|
$243.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACE, SIDE BAG CENTER
95481-06J00
|
$76.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, HEAT SHIELD
95482-06J00
|
$75.46 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACE, SIDE BAG LH
95570-06J00
|
$271.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCK SET, SIDE BAG
95700-06810
|
$110.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01550-0816B
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (6X25)
09139-06196
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER (6.5X20X1.6)
09160-06154
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPACER (6.5X11.5X12)
09180-06120
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#33
LOCK SET,HELMET
95700-41821
|
$165.01 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW (6X20)
09139-06048
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
