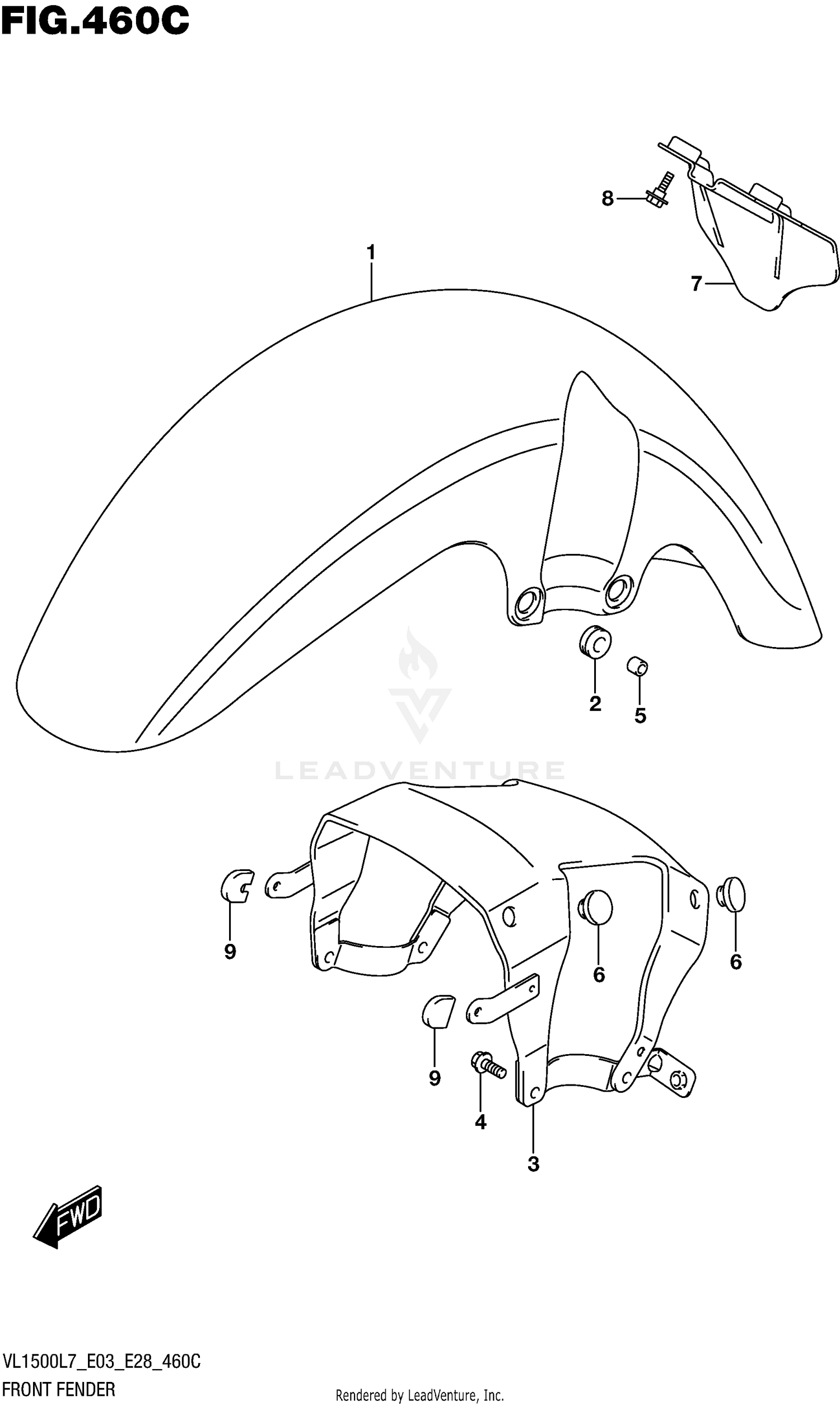

Front Fender (vl1500bl7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (ORANGE)
53111-06J00-YUK
|
$306.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
09320-12084
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACE, FRONT FENDER
53120-06J10
|
$138.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER (6.5X12X9)
09180-06300
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09321-10044
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, FRONT UPPER
53181-06J00
|
$11.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X16.5)
09111-06094
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, BRACE
53112-06J00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
