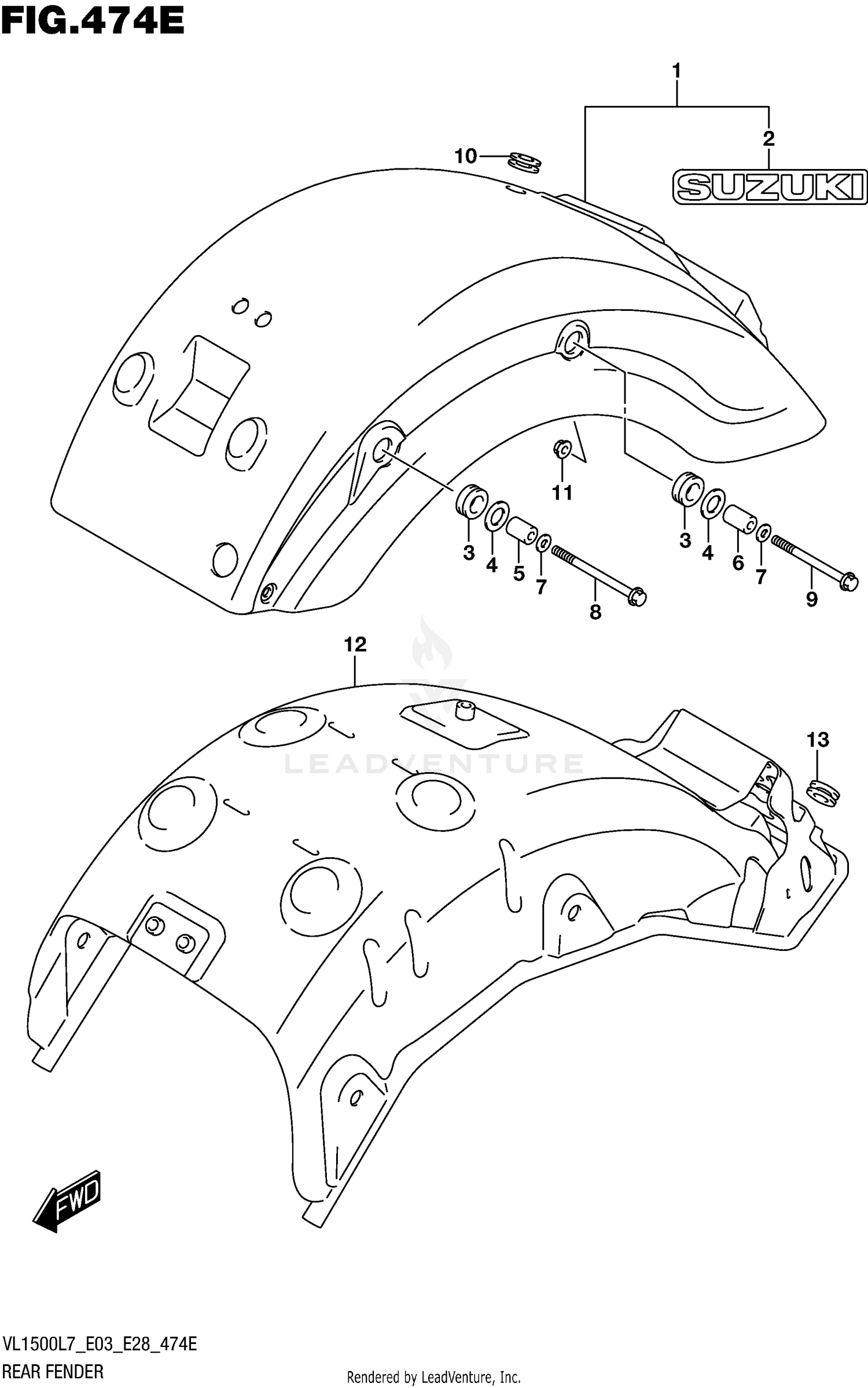

Rear Fender (vl1500tl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR
63110-06J00-YVB
Superseded by 63110-06J01-YVB
|
$1,396.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,"SUZUKI" (SILVER)
68271-34A00-YES
Superseded by 68271-34A01-YES
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,FRAME COVER,UP,REAR
47191-24F00
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (15.5X26X2.3)
09160-15002
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, FRONT
95428-06J00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REAR
95429-06J00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (8.2X12X6)
09180-08047
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0895A
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0885A
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-15008
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-1008A
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
REINFORCE, REAR FENDER
63130-06J01
|
$333.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
09308-10017
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
