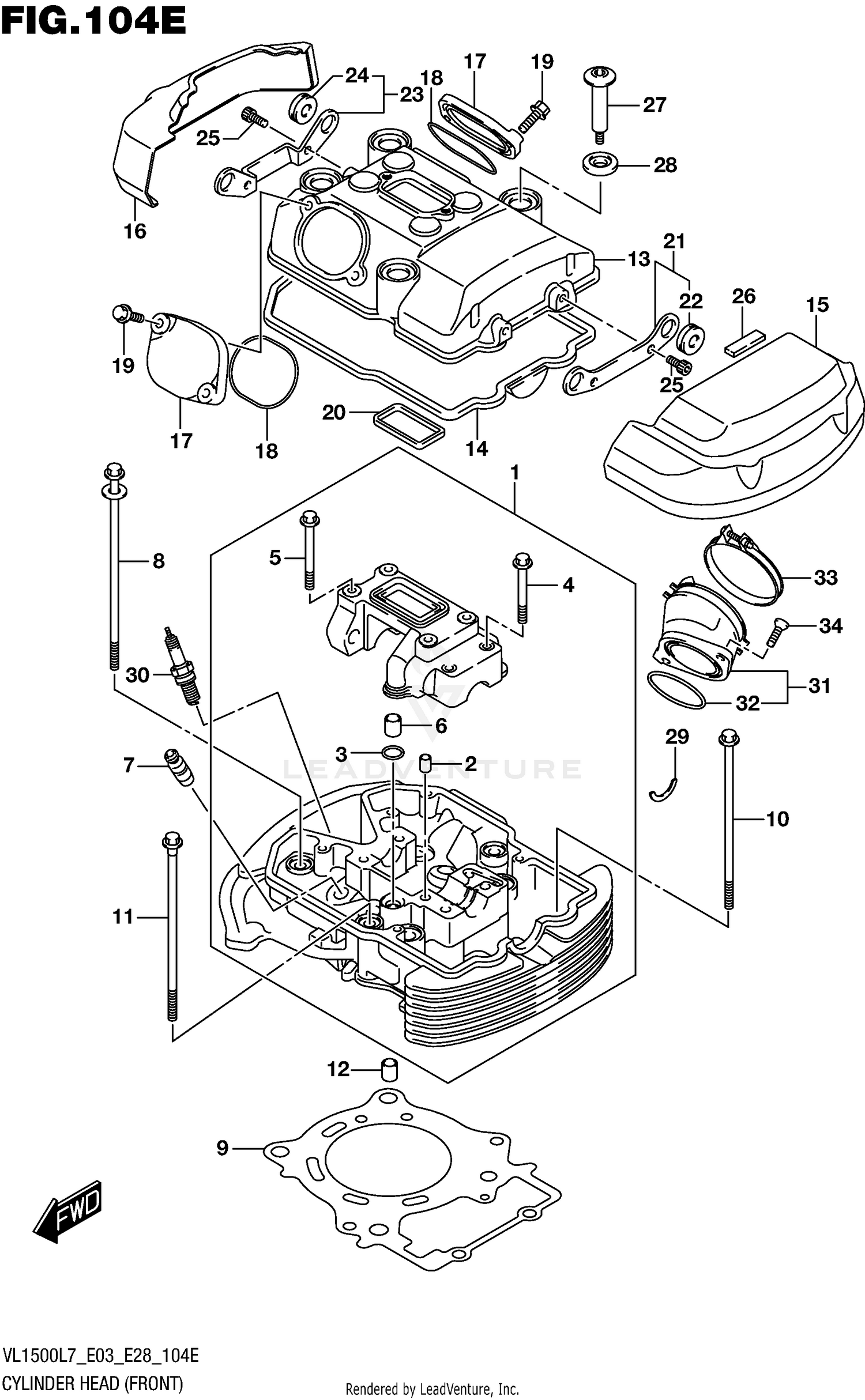

Cylinder Head (front) (vl1500tl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER FRONT
11101-40H10
|
$1,396.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PIN (8X11)
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING (D:2.4,ID:10.8)
09280-11001
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0650A
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0665A
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PIN
04211-11129
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, VALVE (OS:0.3)
11115-32E70
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CYLINDER HEAD
11117-05H00
|
$16.46 | ||
|
Unavailable |
|||
|
#9
GASKET, CYLINDER HEAD FRONT
11141-40H00
|
$69.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8X160)
09103-08528
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X180)
09103-08529
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COVER, CYLINDER HEAD
11171-40H00
|
$169.45 | ||
|
Unavailable |
|||
|
#14
GASKET, HEAD COVER NO.1
11173-40H00
|
$35.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CYLINDER HEAD COVER NO.1
11174-40H00
|
$132.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, CYLINDER HEAD COVER NO.2
11175-40H00
|
$107.61 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, INSPECTION
11176-40H00
|
$15.64 | ||
|
Unavailable |
|||
|
#18
O RING (D:2.4,ID:23)
09280-60004
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, HEAD COVER NO.2
11177-40H00
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, HEAD COVER CAP NO.1
11180-40H00
|
$9.08 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, HEAD COVER CAP NO.2
11180-40H10
|
$10.69 | ||
|
Unavailable |
|||
|
#24
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.32 | ||
|
Unavailable |
|||
|
#25
BOLT
07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
CUSHION, HEAD COVER CAP
94424-03H00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (7X57)
09106-07022
|
$9.57 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CYL HEAD COVER (L:5.5
11191-27E00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
C-RING
09390-22002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#30-1
SPARK PLUG (CPR6EA-9)
09482-00620
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30-2
SPARK PLUG (U20EPR9)
09482-00626
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#30-3
SPARK PLUG (CPR7EA-9)
09482-00621
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#30-3
SPARK PLUG (CPR7EA-9)
09482-00621
|
$9.98 | ||
|
Unavailable |
|||
|
#30-4
SPARK PLUG (U22EPR9)
09482-00627
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#30-4
SPARK PLUG (U22EPR9)
09482-00627
|
$13.84 | ||
|
Unavailable |
|||
|
#31
PIPE ASSY, INTAKE
13101-40HA0
|
$81.17 | ||
|
Available to order. Add to View Price |
|||
|
#32
.O RING (D:2.4,ID:44.7)
09280-45004
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
13170-40H01
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT (6X20.5)
09120-06008
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
