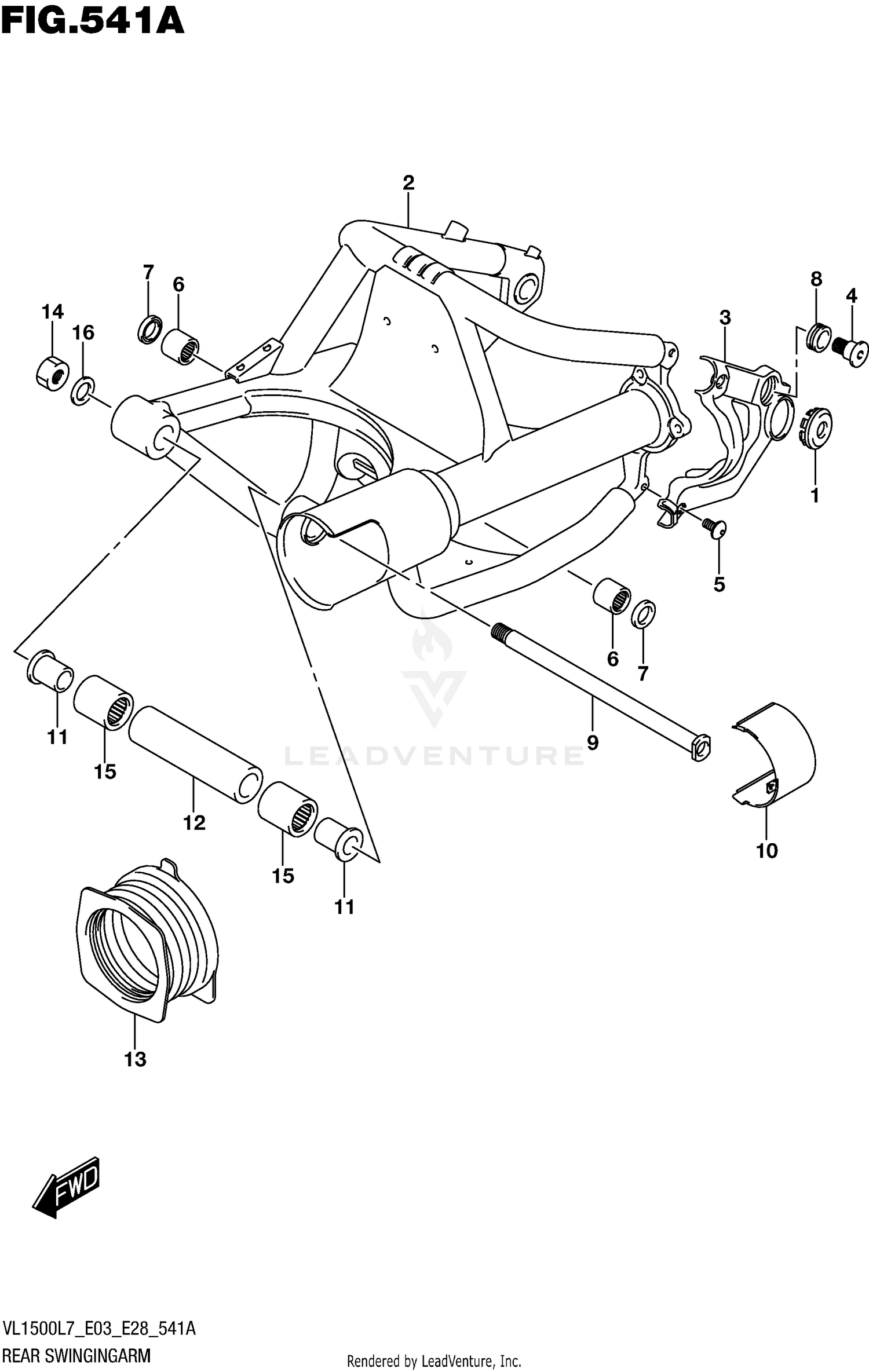

Rear Swingingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, REAR SWINGINGARM COVER
41899-42F10
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWINGINGARM, REAR (BLACK)
61100-06J00-019
|
$1,483.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, LH (BLACK)
61126-40H00-019
|
$269.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, COVER REAR
61127-41F20
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (8X16)
09139-08007
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING (22X29X25)
09263-22071
|
$27.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
.OIL SEAL
09285-22001
Superseded by 09285-22006
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-22003
Superseded by 09320-22004
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT, PIVOT
61211-22D00
|
$83.33 | ||
|
Unavailable |
|||
|
#10
COVER, PIVOT LH
61230-40H00
|
$31.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,RR SWGARM PIVOT,BRG
61251-31E00
|
$64.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, PIVOT CENTER
61280-48G01
|
$46.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT, PROPELLER SHAFT
61372-40H10
|
$20.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09159-18007
|
$20.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING (25X33X35)
09263-25059
Superseded by 09263-25073
|
$37.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08322-0118B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
