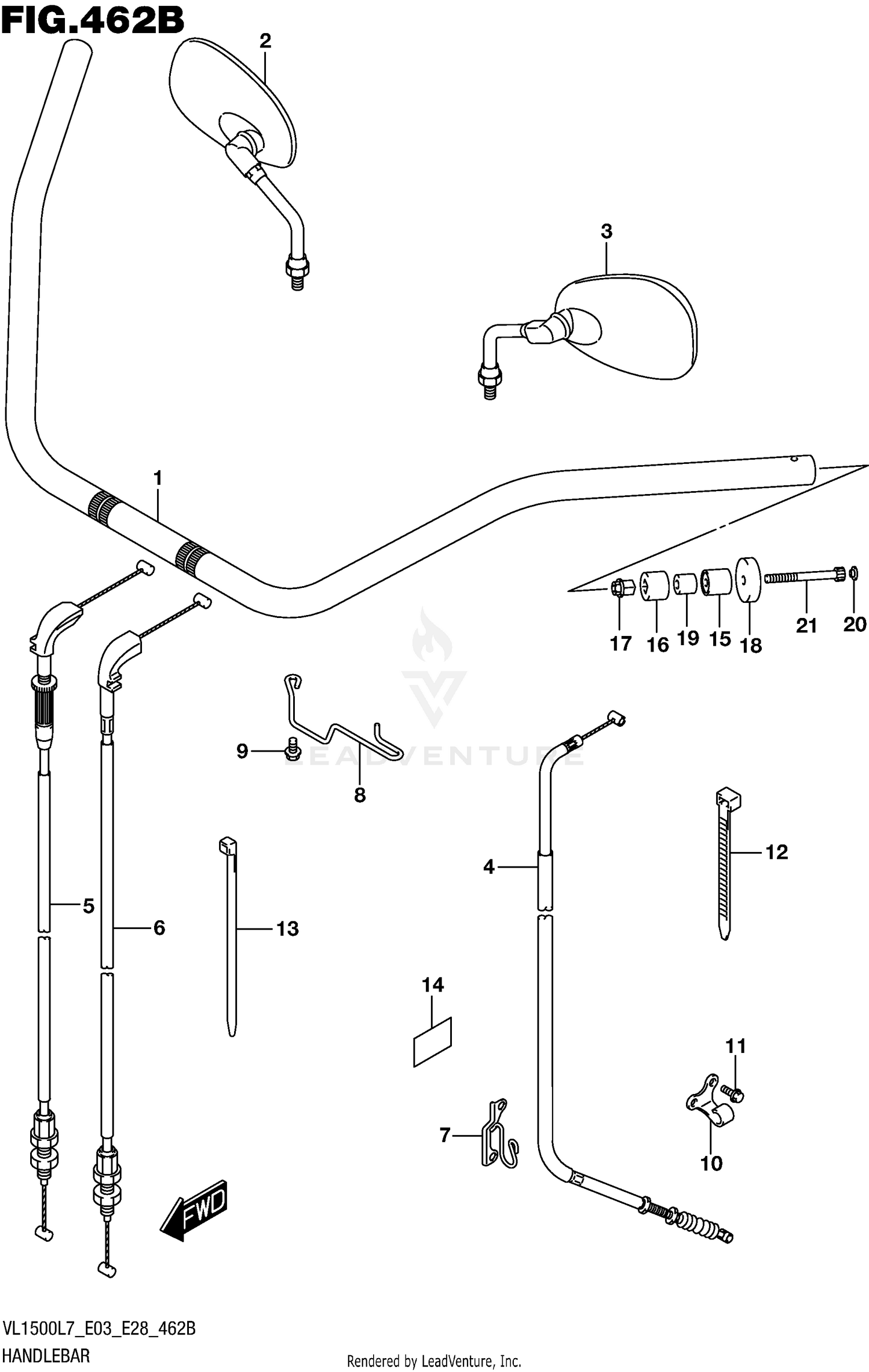

Handlebar (vl1500bl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56111-06J10
|
$175.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
MIRROR ASSY, REAR VIEW RH
56500-41F90
|
$165.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
MIRROR ASSY, REAR VIEW LH
56600-41F90
|
$164.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE ASSY, CLUTCH
58200-06J01
|
$56.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE ASSY,THRO
58300-06J00
Superseded by 58300-06J01
|
$32.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE ASSY,THRO
58300-06J10
Superseded by 58300-06J11
|
$29.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, CLUTCH CABLE
58620-06J10
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, CABLE
58621-06J00
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
STOPPER, CLUTCH CABLE
58634-40H00
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PROTECTOR, THROTTLE CABLE
94474-17H00
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
EXPANDER, BALANCER NO.2
56271-26D20
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
EXPANDER, BALANCER
56272-10G10
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
56273-10G10
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, HANDLEBAR
56278-22H00
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER (6.5X16X15)
09180-06161
|
$6.87 | ||
|
Unavailable |
|||
|
#20
CAP (OD:10)
09250-05008
|
$4.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT
07130-0660A
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
