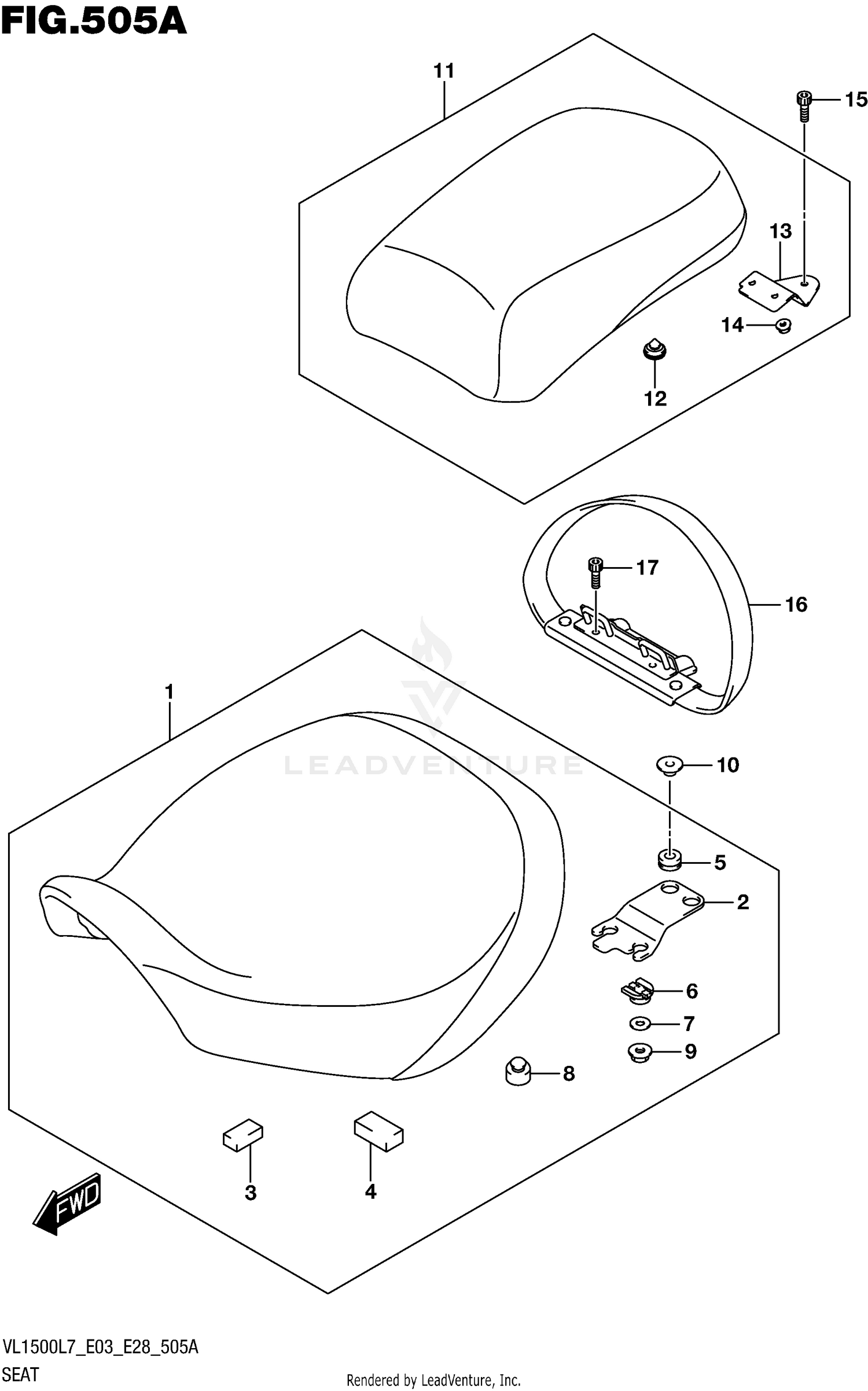

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-06J00-V4Y
Superseded by 45100-06J01-V4Y
|
$452.43 | ||
|
Unavailable |
|||
|
#2
.BRACKET, SEAT
45115-06J00
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION
45148-40H00
|
$4.98 | ||
|
Unavailable |
|||
|
#4
.CUSHION
45149-40H00
|
$3.90 | ||
|
Unavailable |
|||
|
#5
.CUSHION
45149-06J00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
45215-06B00
Superseded by 45215-06B01
|
$4.41 | ||
|
Unavailable |
|||
|
#7
WASHER (6.5X20X1.6)
09160-06088
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CUSHION
09321-10011
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08319-3106A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09169-06077
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT ASSY,PILLI
45300-06J00-V4Y
Superseded by 45300-06J01-V4Y
|
$208.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CUSHION (11.5X22X20)
09321-10002
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BRACKET
45315-06J00
|
$23.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
.NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT (8X16)
09106-08140
|
$7.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BAND,SEAT
45180-06J00-V4Y
Superseded by 45180-06J01-V4Y
|
$52.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X18)
09106-06064
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
