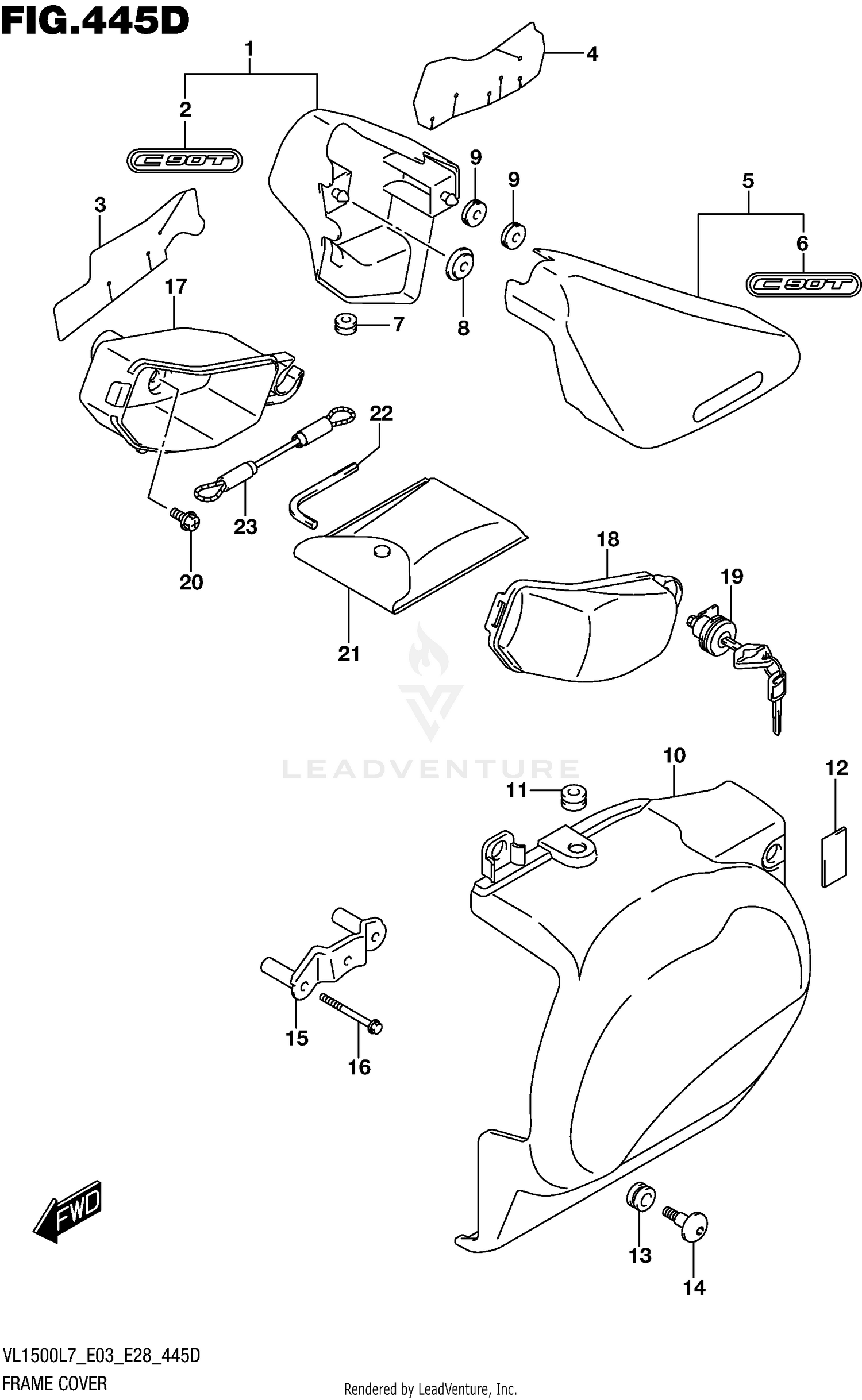

Frame Cover (vl1500btl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE RH (BLACK)
47110-06JA0-YVB
|
$108.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM, "C90T" (SILVER)
68131-06JA0-YES
|
$20.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIELD, SIDE COVER RH
47166-06J10
|
|||
|
Unavailable |
|||
|
#4
SHIELD, SIDE COVER RH
47166-06J20
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SIDE LH (BLACK)
47210-06JA0-YVB
|
$113.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
.EMBLEM, "C90T" (SILVER)
68131-06JA0-YES
|
$20.09 | ||
|
Unavailable |
|||
|
#7
CUSHION, SIDE COVER LOWER RH
47167-06J00
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,COVER SIDE FR LH
47191-06J00
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-08018
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, LOWER LH
47231-40H20
|
$129.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-06504
|
$6.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CUSHION
51827-01A00
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-09016
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X20)
09139-06190
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, LOWER COVER LH
47250-06J00
|
$31.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0650A
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
BODY, LUGGAGE BOX
92211-06J00
|
$17.68 | ||
|
Unavailable |
|||
|
#18
LID
92212-06J00
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK SET,COVER
95700-07860
Superseded by 95700-07861
|
$93.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (6X12)
09111-06107
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
TOOL ASSY
09800-21056
Superseded by 09800-21100
|
$42.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPANNER, 6 HEXAGON
09816-00050
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE,HELMET LO
95740-06G00
Superseded by 95740-06G01
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
