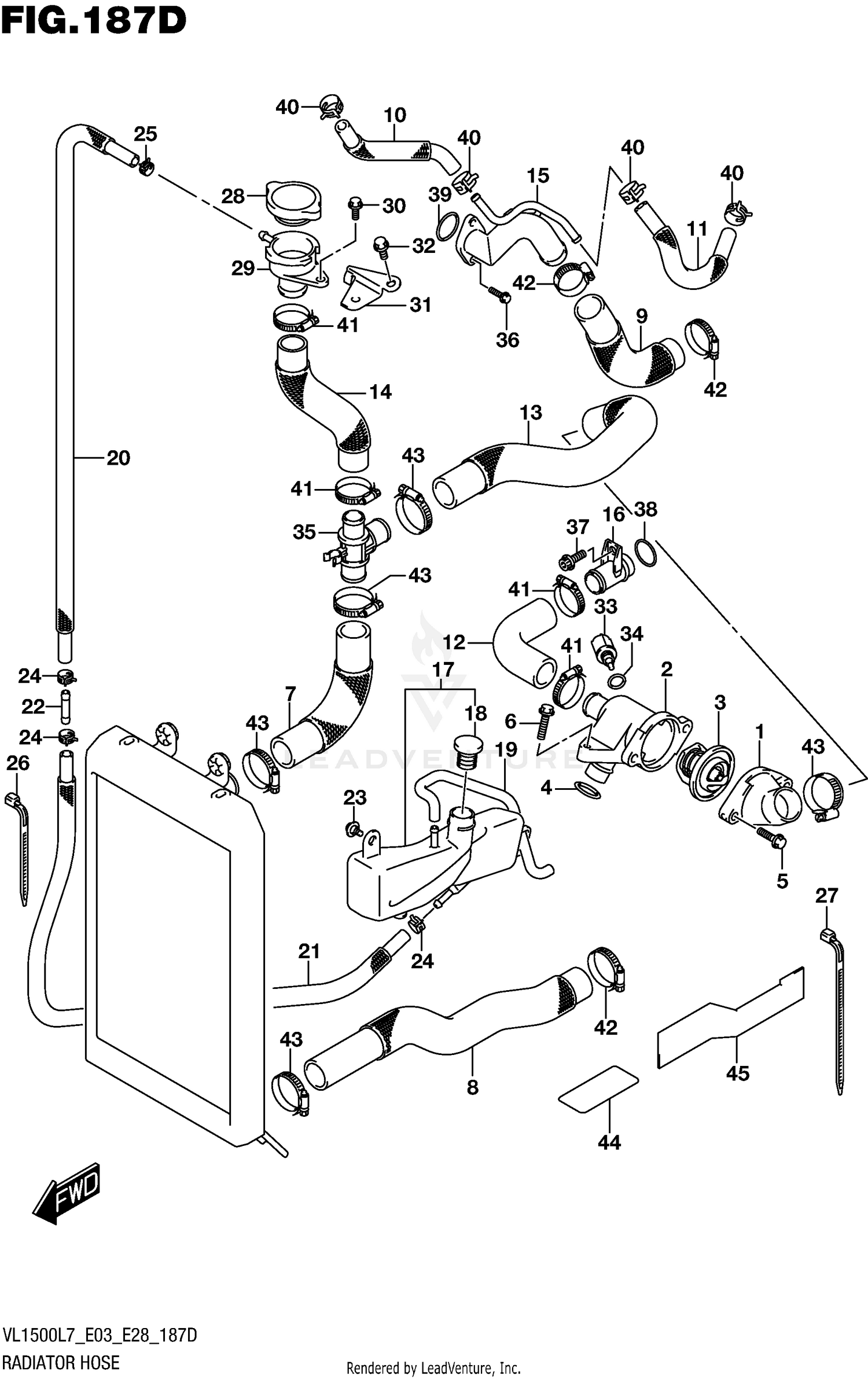

Radiator Hose (vl1500btl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, THERMOSTAT
17661-48G10
|
$33.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR, THERMOSTAT INLET
17662-40H00
|
$65.97 | ||
|
Unavailable |
|||
|
#3
THERMOSTAT,WATER
17670-06G50
Superseded by 17670-06G51
|
$33.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING (D:3.2,ID:17.8)
09280-18008
Superseded by 09280-18009
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, RADIATOR INLET
17851-40H10
|
$29.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, RADIATOR OUTLET
17852-40H10
|
$56.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, CYLINDER INLET
17853-40H00
|
$18.98 | ||
|
Unavailable |
|||
|
#10
HOSE, WATER BYPASS UPPER
17854-40H00
|
$16.85 | ||
|
Unavailable |
|||
|
#11
HOSE, WATER BYPASS LOWER
17855-40H00
|
$22.66 | ||
|
Unavailable |
|||
|
#12
HOSE, RR CYLINDER HEAD OUTLET
17856-40H00
|
$26.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, THERMOSTAT OUTLET
17857-40H10
|
$55.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, CONDUCTION
17858-40H00
|
$36.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, CYLINDER WATER INLET
17860-40H00
|
$124.72 | ||
|
Unavailable |
|||
|
#16
UNION
17890-06G20
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
TANK ASSY, RESERVOIR
17910-40H00
|
$48.87 | ||
|
Unavailable |
|||
|
#18
.CAP
17931-02FA0
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, TANK OVERFLOW
17982-40H00
|
$11.35 | ||
|
Unavailable |
|||
|
#20
HOSE, TANK INLET NO.1
17981-40H00
|
$26.82 | ||
|
Unavailable |
|||
|
#21
HOSE (5X9X600)
09352-50901-600
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
UNION
09364-06005
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (6X12)
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
09401-10411
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP ASSY, RADIATOR
17730-14G00
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
CONDUCTION, RADIATOR
17791-14G00
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01547-0512A
|
$1.88 | ||
|
Unavailable |
|||
|
#31
BRACKET, CONDUCTION
17792-40H00
|
$7.68 | ||
|
Unavailable |
|||
|
#32
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SENSOR, WATER TEMP
13650-49X00
|
$116.42 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET (12X17X1)
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
JOINT, 3 WAY
17891-48G00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT (6X16)
09103-06274
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#38
O RING (D:3.2,ID:17.8)
09280-18008
Superseded by 09280-18009
|
$7.31 | ||
|
Unavailable |
|||
|
#39
O RING (D:2.4,ID:26.2)
09280-26005
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
09401-12414
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
09402-32512
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
09402-38512
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
09402-35501
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#44
TAPE,RR FENDER (30X75X0.2)
63131-10F00
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#45
CUSHION, RESERVOIR TANK HOSE
17912-06J00
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
