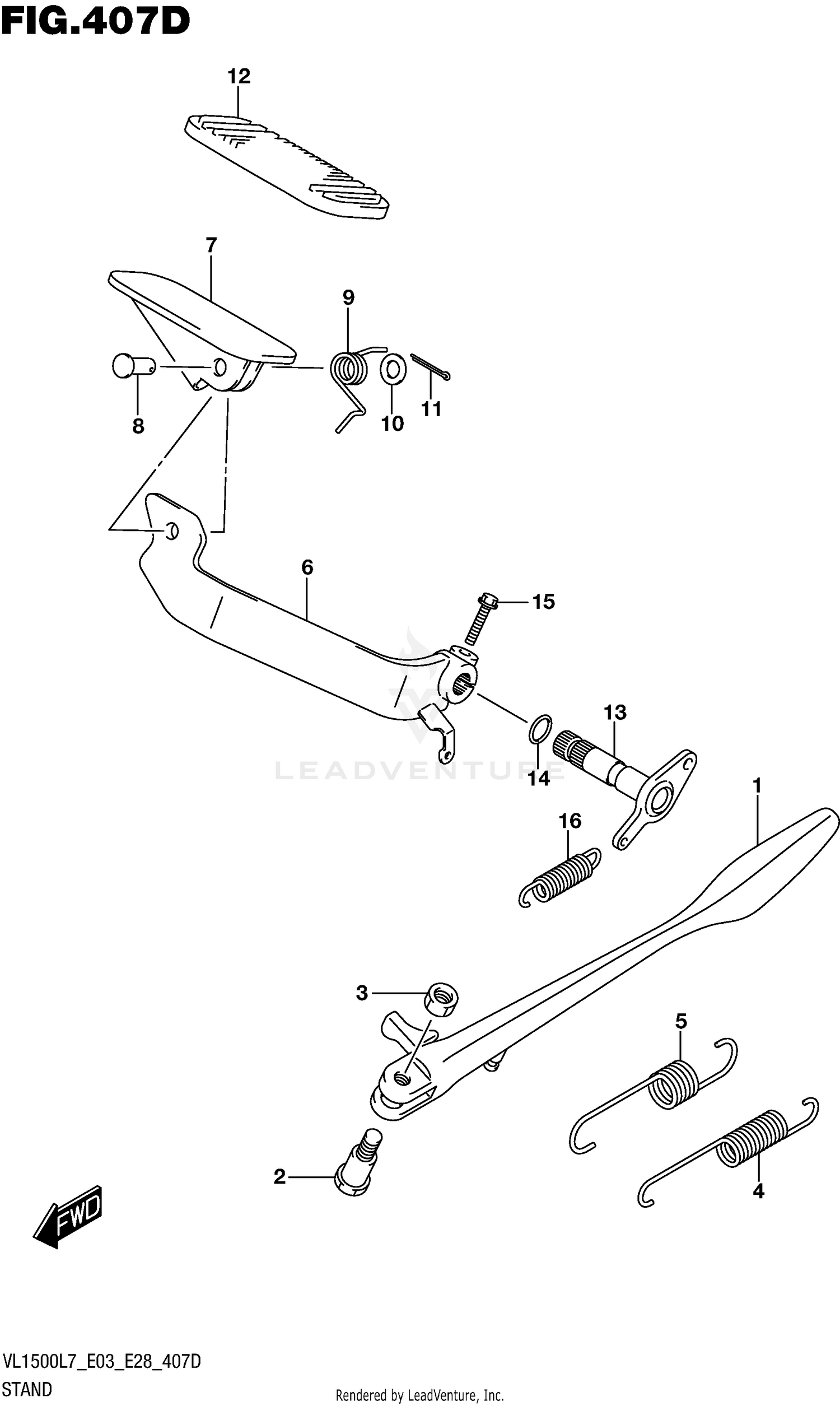

Stand (vl1500btl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-06J10
|
$166.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X37.5)
09111-10058
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,PROP STAND
42321-03FK0
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
09443-14069
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09443-19012
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, BRAKE PEDAL
43140-06J00
|
$117.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE
43110-22H10
|
$65.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
43117-22H00
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
43116-22H00
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,LOCK
08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
COTTER PIN
04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER,BRAKE PEDAL
43151-10F00
Superseded by 43151-10F01
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, BRAKE ROD
43120-40H00
|
$86.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:2.5,ID:13.8)
09280-14011
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
07120-0625A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09443-11030
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
