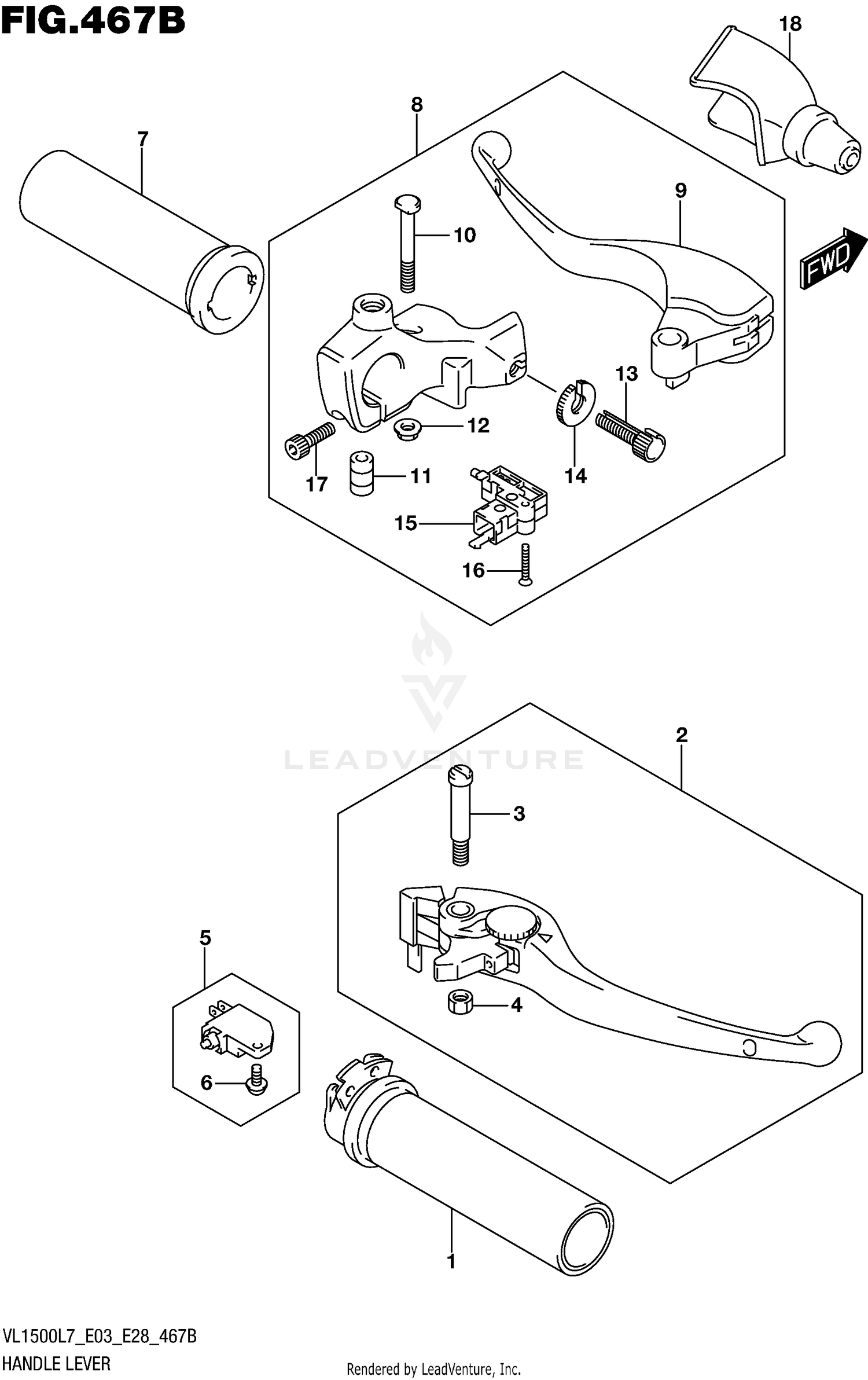

Handle Lever (vl1500bl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP,THROTTLE
57110-26D10
Superseded by 57110-26D11
|
$53.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY, BRAKE
57300-48G20
|
$111.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOLT, PIVOT
57431-48G00
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
.NUT
08319-2106A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY,FR BRAKE
57460-14J01
Superseded by 57460-14J02
|
$47.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP,L
57210-26D00
Superseded by 57210-26D01
|
$37.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER ASSY,CLUTCH
57500-48G31
Superseded by 57500-48G33
|
$90.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
.LEVER, CLUTCH
57621-48G20
|
$45.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT, PIVOT
57531-48G00
|
$40.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
.COLLAR
57623-48G00
|
$32.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08319-3106A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
.ADJUSTER,WIRE
57441-08C00
Superseded by 57441-08C01
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
.NUT,LOCK
57442-08C00
Superseded by 57442-08C01
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SWITCH ASSY,CLUTCH
57560-05A10
|
$39.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SCREW,CLUTCH SWITCH
57562-41G01
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
.BOLT
07130-06207
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,CLUTCH LEVER
57541-48G10
Superseded by 57541-48G11
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
