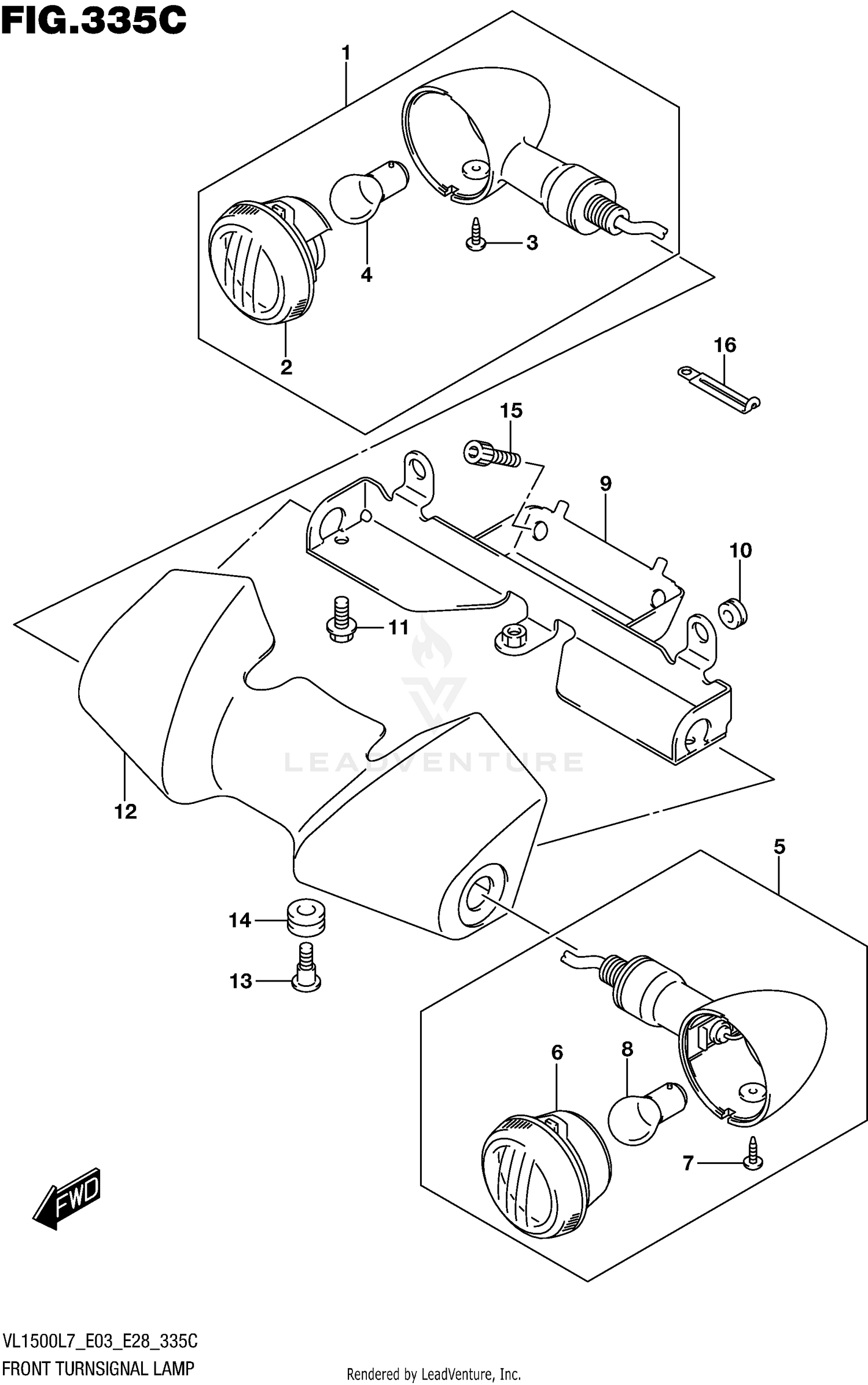

Front Turnsignal Lamp (vl1500bl7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL R
35601-38AA0
|
$144.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS
35610-38AE1
|
$38.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BULB (12V,21W)
09471-12045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY, FRONT TURNSIGNAL L
35602-38AA0
|
$151.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
.LENS
35630-38AE1
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#8
.BULB (12V,21W)
09471-12045
|
$3.99 | ||
|
Unavailable |
|||
|
#9
BRACKET
35620-06J00
|
$63.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (6.5X14X6)
09320-06016
Superseded by 09320-06027
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X8)
09103-06275
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FRONT TURNSIGNAL
35641-06JB1
|
$149.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X16)
09139-06146
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-09016
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
07130-0816B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
