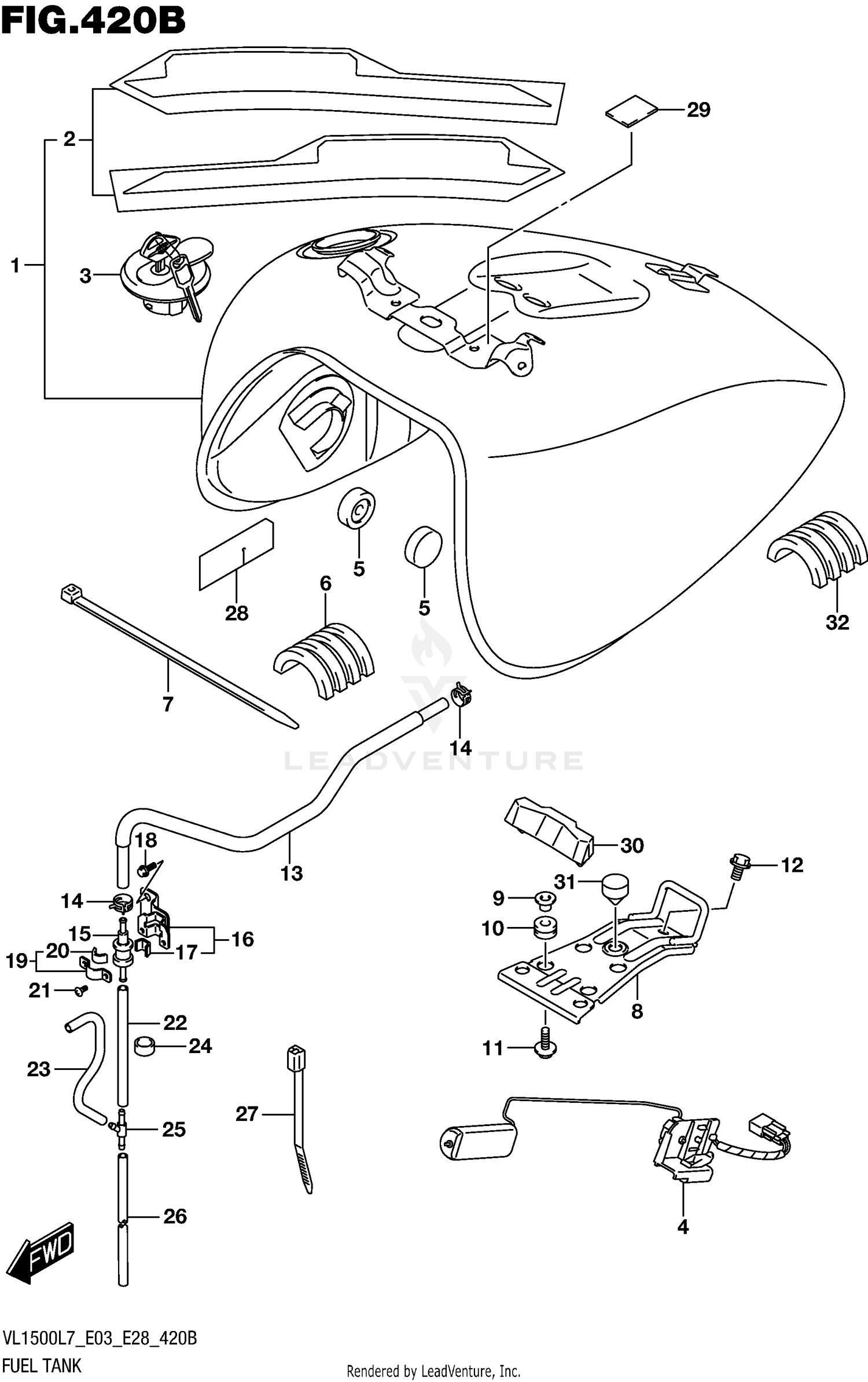

Fuel Tank (vl1500bl7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-06J50-YUK
Superseded by 44100-06J51-YUK
|
$1,272.27 | ||
|
Unavailable |
|||
|
#2
.TAPE SET FUEL TANK
68110-06J10-JGS
|
$62.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
(ORANGE/BLACK)
68110-06J10-JGS
|
$62.71 | ||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TA
44200-41840
Superseded by 44200-41842
|
$124.16 | ||
|
Unavailable |
|||
|
#4
GAUGE ASSY,FUEL
34810-40H00
Superseded by 34810-40H01
|
$109.74 | ||
|
Unavailable |
|||
|
#5
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CUSHION, TANK SIDE
44541-04F00
|
$11.87 | ||
|
Unavailable |
|||
|
#7
CLAMP (L:300)
09407-30402
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, REAR
44530-06J00
|
$42.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09169-06062
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X20)
09116-06192
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOSE, TANK & VALVE
44434-40H00
|
$43.99 | ||
|
Unavailable |
|||
|
#14
CLIP (ID:11)
09401-11413
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE, BREATHER
44240-38A00
|
$69.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, BREATHER VALVE
44880-40H00
|
$22.27 | ||
|
Unavailable |
|||
|
#17
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0610A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE,FUEL TANK BREATHER,NO.2
44892-24A00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Unavailable |
|||
|
#21
SCREW
02142-0408A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
.HOSE (5X9X600)
09352-50903-600
Superseded by 09352-50006-600
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE,FUEL TANK BRTHR NO.3
44424-15H10
Superseded by 44424-15H11
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (13.5X16.5X10)
09352-13162-010
|
$1.97 | ||
|
Unavailable |
|||
|
#25
3 WAY
09367-06007
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
PROTECTOR,FUEL TANK
44283-06J00
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION (30X40)
63191-25C00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION
44545-06J00
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION
09321-10011
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CUSHION, TANK SIDE REAR
44541-06J00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
