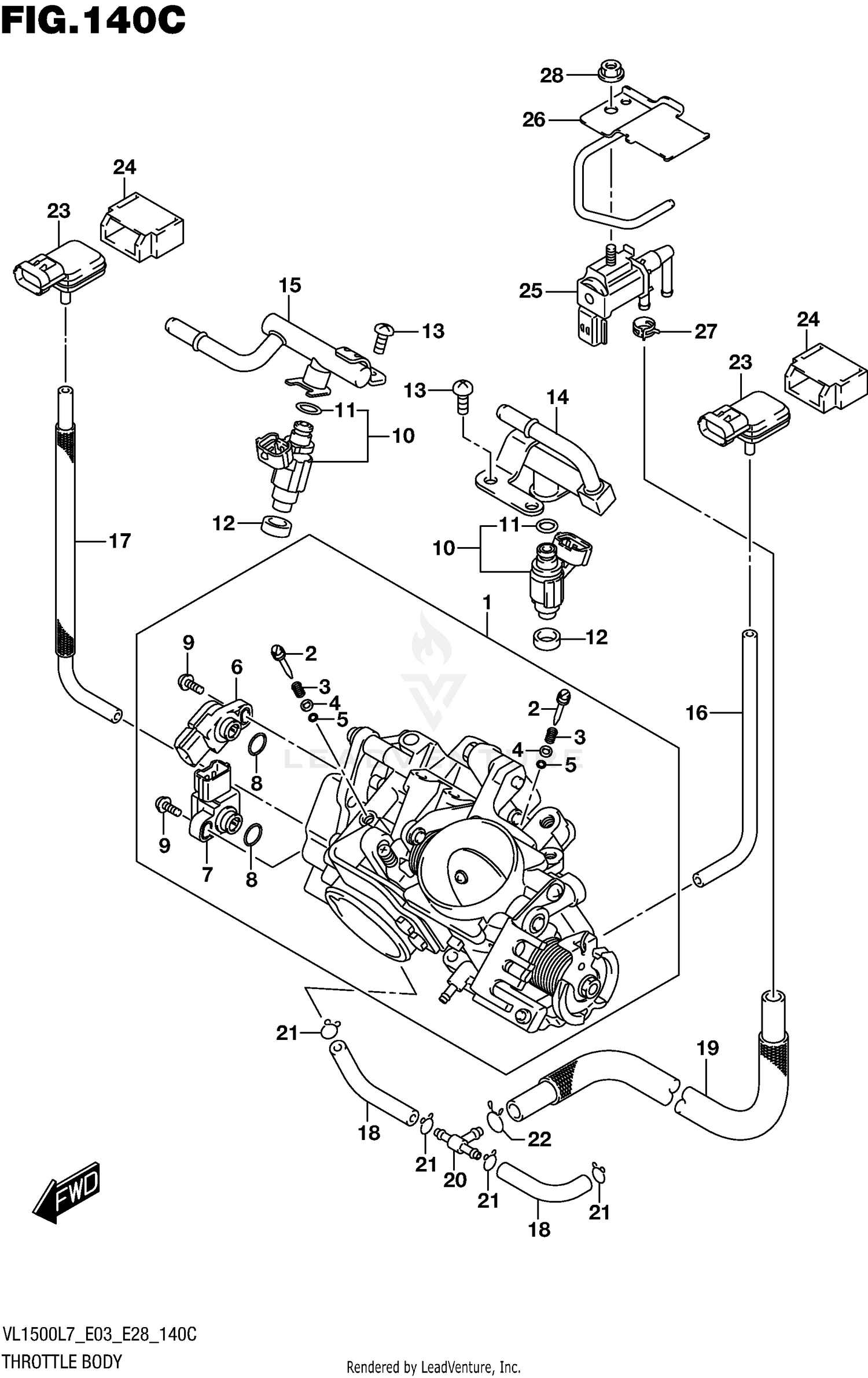

Throttle Body (vl1500bl7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, THROTTLE
13405-40HB0
|
$1,430.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SCREW
13269-33E00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SPRING,THROTTLE SCREW
13268-48700
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
13606-47A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SENSOR ASSY
13580-48G10
|
$161.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SENSOR ASSY
13580-48G00
|
$217.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O-RING
13575-29G00
Superseded by 13575-29G01
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
13605-02F00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
INJECTOR ASSY
15710-48G00
|
$339.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
..O-RING
15717-58B00
|
$12.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SEAL
15722-29G00
|
$13.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
13602-06148
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE ASSY, DELIVERY
15730-40H00
|
$127.26 | ||
|
Unavailable |
|||
|
#15
PIPE ASSY, DELIVERY
15730-40H10
|
$133.51 | ||
|
Unavailable |
|||
|
#16
HOSE
13683-48G00
Superseded by 13683-48G01
|
$34.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE
13683-40H10
|
$29.16 | ||
|
Unavailable |
|||
|
#18
HOSE
13683-48G21
|
$69.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE
13683-40H20
|
|||
|
Unavailable |
|||
|
#20
NIPPLE
13685-04F10
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
09401-06101
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
09401-10410
Superseded by 09401-10401
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SENSOR, PRESSURE
18591-41F00
|
$330.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER
18595-33G00
|
$17.83 | ||
|
Unavailable |
|||
|
#25
VALVE, CANISTER PURGE
18117-52G10
|
$161.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, PURGE VALVE
18119-06J00
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
09401-10411
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
