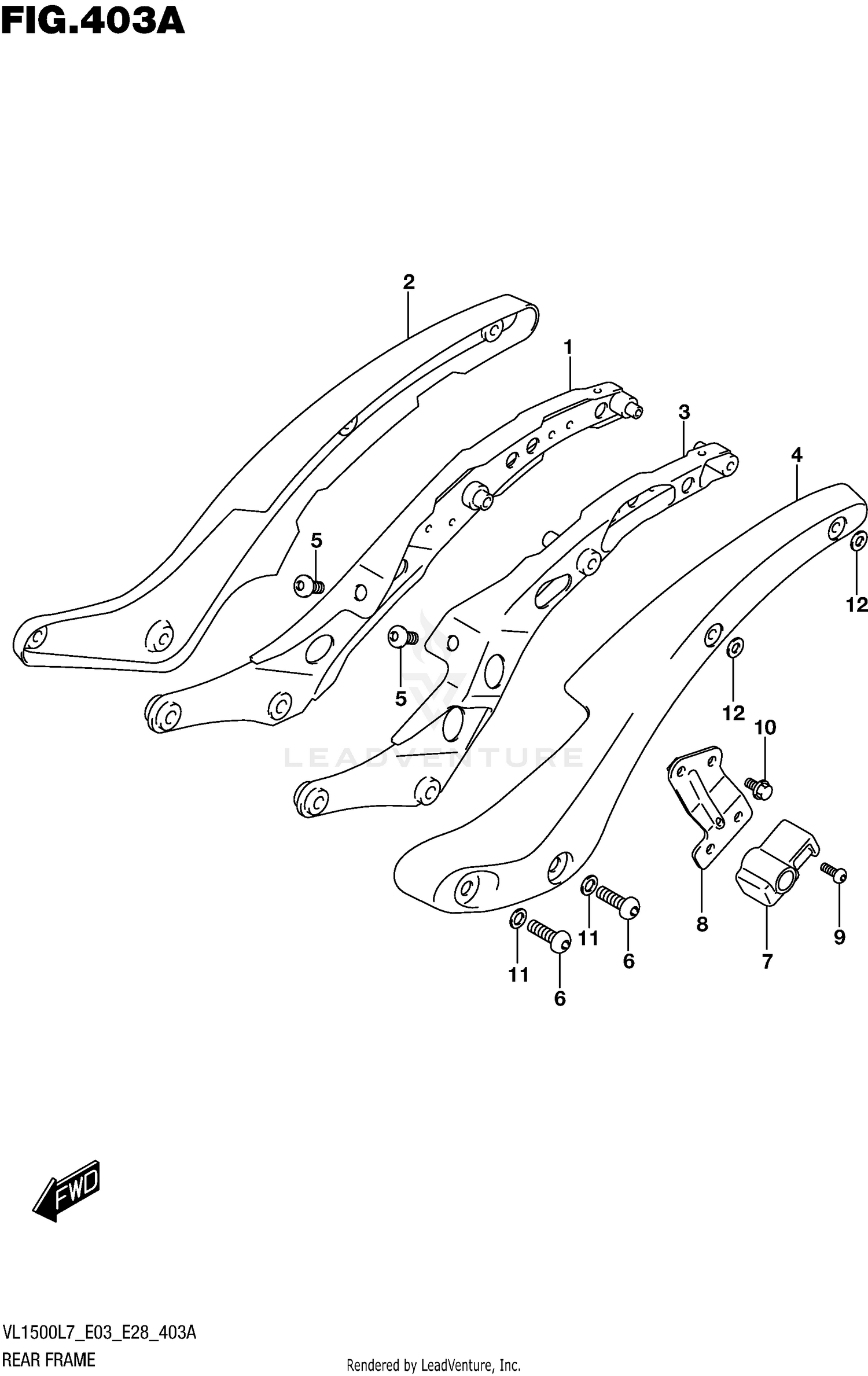

Rear Frame (vl1500bl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, REAR RH
42650-06J00
|
$239.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, REAR FRAME RH
42651-06J10
|
$290.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME, REAR LH
42660-06J00
|
$310.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, REAR FRAME LH
42661-06J10
|
$337.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (10X25)
09139-10003
|
$8.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT (10X35)
09139-10005
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK SET,HELMET
95700-41821
|
$165.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, HELMET LOCK
95710-06J00
|
|||
|
Unavailable |
|||
|
#9
SCREW (6X14)
09139-06089
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02162-0612A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10.5X19X2)
09160-10082
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (8.5X18X1)
09160-08043
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
