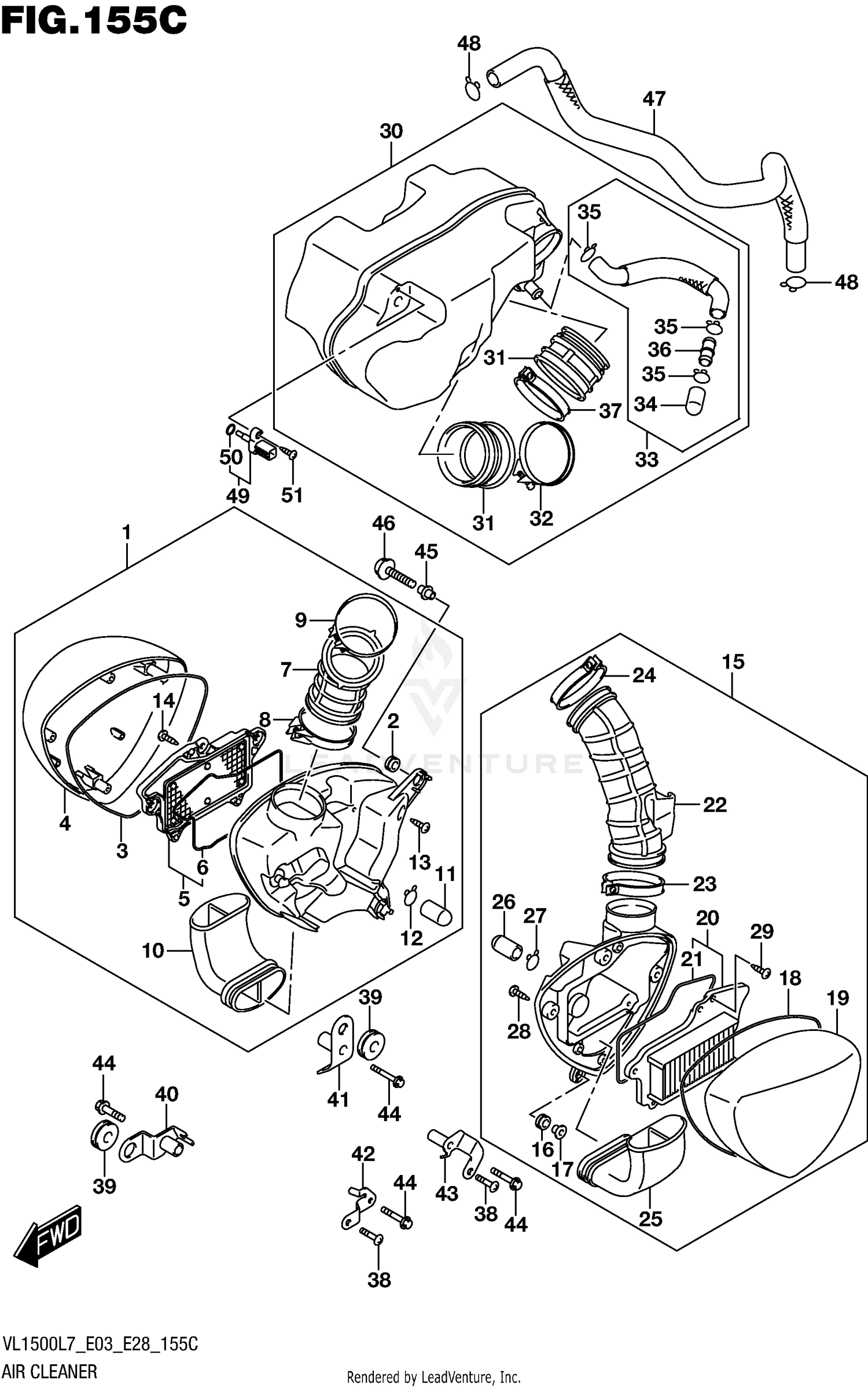

Air Cleaner (vl1500bl7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER,AIR,R
13701-40HB0
Superseded by 13701-40HB1
|
$325.42 | ||
|
Unavailable |
|||
|
#2
CUSHION
09320-09016
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
.GASKET
13756-40H00
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CAP, AIR CLEANER
13741-40HB0
|
$214.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FILTER ASSY
13780-40H00
|
$52.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
..GASKET
13787-40H00
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
.TUBE, JOINT RH
13738-40H00
|
$97.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CLAMP
13826-40HA0
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
.CLAMP
13826-40H00
|
$12.50 | ||
|
Unavailable |
|||
|
#10
.TUBE, INLET
13891-40H01
|
$34.41 | ||
|
Unavailable |
|||
|
#11
.PLUG,DRAIN
13878-09F00
Superseded by 13878-09F01
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP
09401-14101
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SCREW
03211-0520A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLEANER, AIR LH
13702-40HB0
|
$472.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
09320-09016
|
$2.37 | ||
|
Unavailable |
|||
|
#17
.COLLAR
13812-29C50
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
.GASKET
13756-40H00
|
$7.44 | ||
|
Unavailable |
|||
|
#19
.CAP, AIR CLEANER
13741-40HB0
|
$214.86 | ||
|
Unavailable |
|||
|
#20
.FILTER ASSY
13780-40H00
|
$52.66 | ||
|
Unavailable |
|||
|
#21
..GASKET
13787-40H00
|
$6.47 | ||
|
Unavailable |
|||
|
#22
.TUBE, JOINT LH
13739-40H00
|
$97.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
.CLAMP
13826-40HA0
|
$15.40 | ||
|
Unavailable |
|||
|
#24
CLAMP,INTAKE PIPE
13827-40H01
|
$16.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
.TUBE, INLET
13891-40H01
|
$34.41 | ||
|
Unavailable |
|||
|
#26
.PLUG,DRAIN
13878-09F00
Superseded by 13878-09F01
|
$6.97 | ||
|
Unavailable |
|||
|
#27
.CLIP
09401-14101
|
$2.85 | ||
|
Unavailable |
|||
|
#28
.SCREW
03211-0520A
|
$2.79 | ||
|
Unavailable |
|||
|
#29
.SCREW
03541-0516A
|
$1.65 | ||
|
Unavailable |
|||
|
#30
CHAMBER, AIR CLEANER
13710-40H01
|
$203.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
.TUBE, OUTLET
13881-40H01
|
$21.53 | ||
|
Unavailable |
|||
|
#32
.CLAMP
13170-39H00
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#33
.TUBE, DRAIN
13870-40H00
|
$28.05 | ||
|
Unavailable |
|||
|
#34
.PLUG
13859-41B10
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
..CLIP
09401-14101
|
$2.85 | ||
|
Unavailable |
|||
|
#36
JOINT,2ND AIR CLEANER HOSE
13888-19B00
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#37
.CLAMP
13826-40HB0
|
$12.50 | ||
|
Unavailable |
|||
|
#38
SCREW (6X20)
09139-06056
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CUSHION
09320-08028
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BRACKET, RH NO.1
13760-40H00
|
$12.56 | ||
|
Unavailable |
|||
|
#41
BRACKET, LH NO.1
13770-40H00
|
$11.02 | ||
|
Unavailable |
|||
|
#42
BRACKET, LH NO.2
13770-40H11
|
$21.14 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET, LH NO.3
13770-40H20
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT (6X30)
09103-06509
|
$2.59 | ||
|
Unavailable |
|||
|
#45
SPACER
13838-40H00
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW (6X35)
09136-06167
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#47
TUBE, BREATHER
13850-40H00
|
$49.03 | ||
|
Unavailable |
|||
|
#48
CLIP
09401-20405
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#49
SENSOR, AIR TEMP
13650-41F10
|
$68.33 | ||
|
Available to order. Add to View Price |
|||
|
#50
.O-RING
13655-41F10
|
$7.63 | ||
|
Unavailable |
|||
|
#51
SCREW
03511-0516B
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
