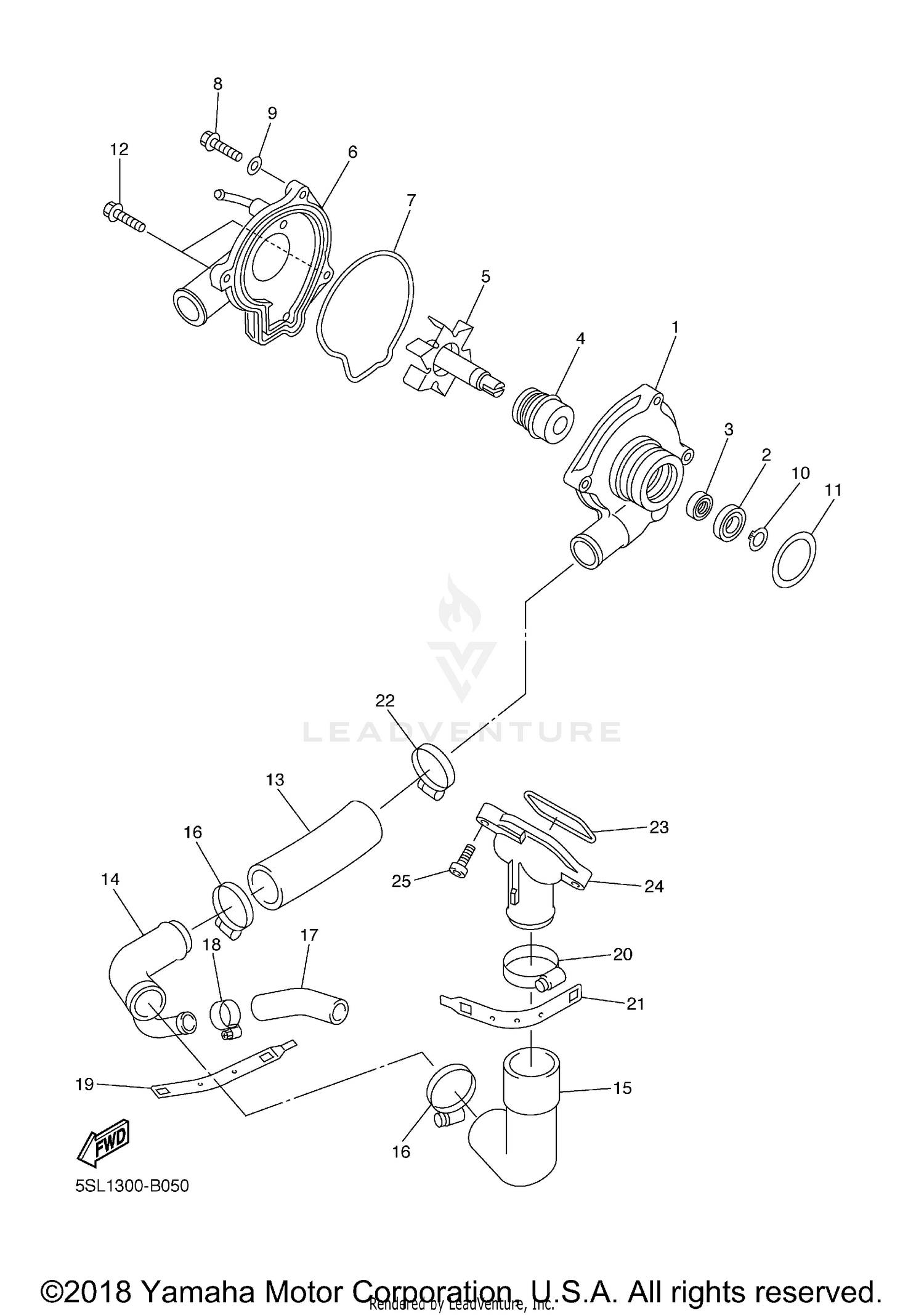

2005 Yamaha YZF R6 WATER PUMP OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 HOUSING, WATER PUMP
5EB-12421-00-00
Superseded by 5VX-12421-00-00
$144.99
Available: Ships in 7-12 days.
Add to View Price
#2 BEARING
93306-00106-00
Superseded by 93306-00105-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#3 OIL SEAL
93101-12173-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#4 SEAL, MECHANICAL
11H-12438-10-00
$50.99
In Stock: Ready to ship.
Add to View Price
#5 IMPELLER SHAFT ASSY
5EB-12450-00-00
$45.99
Available: Ships in 7-12 days.
Add to View Price
#6 COVER, HOUSING
5SL-12422-00-00
$79.99
Available: Ships in 7-12 days.
Add to View Price
#7 O-RING
5EB-12439-00-00
$13.99
In Stock: Ready to ship.
Add to View Price
#8 BOLT, FLANGE (SMALL HEAD)
95024-06020-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 GASKET
90430-06014-00
$7.99
Available: Ships in 7-12 days.
Add to View Price
#10 CIRCLIP
99009-12400-00
$3.30
In Stock: Ready to ship.
Add to View Price
#11 O-RING
93210-33133-00
$4.90
In Stock: Ready to ship.
Add to View Price
#12 BOLT
90110-06149-00
Superseded by 91317-06040-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#13 HOSE 4
4NK-12579-00-00
$10.99
In Stock: Ready to ship.
Add to View Price
#14 JOINT, HOSE 1
5EB-12581-00-00
Superseded by 20S-12581-01-00
$44.99
Available: Ships in 7-12 days.
Add to View Price
#15 HOSE 2
5EB-12577-01-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#16 HOSE CLAMP ASSY
90450-35001-00
$33.99
Available: Ships in 7-12 days.
Add to View Price
#17 HOSE 5
5SL-12588-01-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#18 HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#19 COVER 2
5GV-1246E-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#20 HOSE CLAMP ASSY
90450-38040-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#21 COVER 1
5GV-1246A-00-00
$3.05
Available: Ships in 7-12 days.
Add to View Price
#22 HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#23 O-RING
93210-47675-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#24 JOINT 1
5EB-12469-00-00
$55.99
Available: Ships in 7-12 days.
Add to View Price
#25 BOLT, FLG.(SMALL HEAD)
90105-06053-00
Superseded by 95024-06020-00
$6.49
Unavailable
