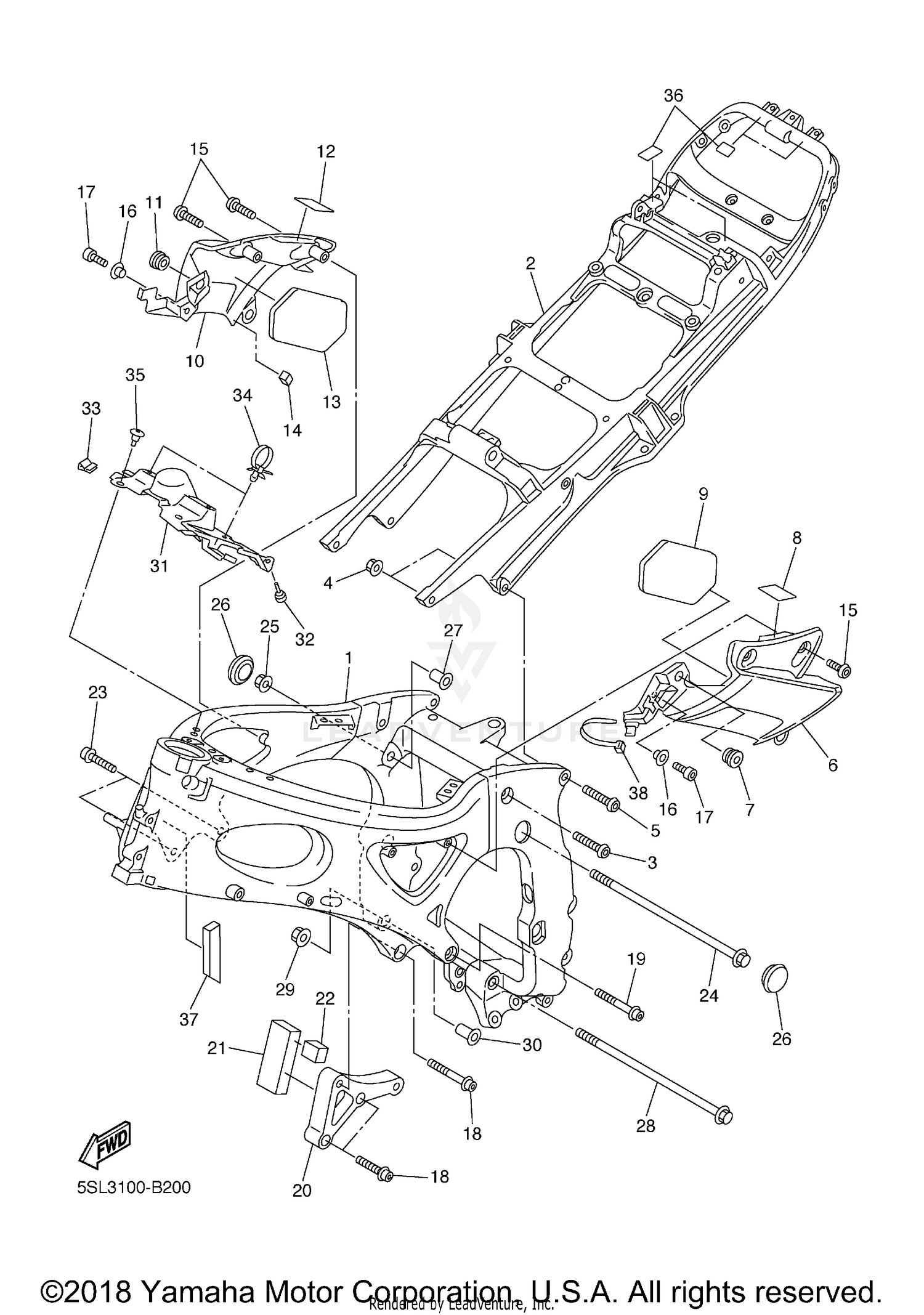

2005 Yamaha YZF R6 FRAME OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 FRAME COMP.
5SL-21110-01-00
$2,174.99
Available: Ships in 7-12 days.
Add to View Price
#2 REAR FRAME COMP.
5SL-21190-00-00
$398.99
Available: Ships in 7-12 days.
Add to View Price
#3 SCREW
90149-10007-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 NUT, U FLANGE
95607-10200-00
$3.30
In Stock: Ready to ship.
Add to View Price
#5 SCREW
90149-10006-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#6 COVER 7
5SL-2117V-00-00
$44.99
Available: Ships in 7-12 days.
Add to View Price
#7 GROMMET
90480-13398-00
Superseded by 90480-13014-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 DAMPER, SEAT
3KJ-24723-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 DAMPER 1
5SL-28415-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 COVER 8
5SL-2117W-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#11 GROMMET
90480-13398-00
Superseded by 90480-13014-00
$6.49
Unavailable
#12 DAMPER, SEAT
3KJ-24723-00-00
$6.49
Unavailable
#13 DAMPER 1
5SL-28415-00-00
$6.49
Unavailable
#14 DAMPER
5SL-21649-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#15 BOLT, HEX. SOCKET BUTTON
90111-05006-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#16 COLLAR
90387-050X4-00
$4.60
Available: Ships in 7-12 days.
Add to View Price
#17 BOLT
91317-05012-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#18 BOLT, HEXAGON SOCKET HEAD
90110-10008-00
$26.99
Available: Ships in 7-12 days.
Add to View Price
#19 BOLT, HEXAGON SOCKET HEAD
90110-10007-00
$3.99
Available: Ships in 7-12 days.
Add to View Price
#20 SUPPORT, ENGINE
5SL-21283-00-00
$130.99
Available: Ships in 7-12 days.
Add to View Price
#21 DAMPER
5SL-21488-00-00
$1.45
Available: Ships in 7-12 days.
Add to View Price
#22 DAMPER 2
5SL-21486-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#23 BOLT, HEXAGON SOCKET HEAD
90110-10008-00
$26.99
Unavailable
#24 BOLT, FLANGE
90105-10042-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#25 NUT
90179-10696-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#26 PLUG
90338-27007-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#27 BOLT, ENGINE ADJUSTING
5EB-21495-00-00
Superseded by 4C8-21495-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#28 BOLT, FLANGE
90105-106A2-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#29 NUT
90179-10696-00
$5.49
Unavailable
#30 BOLT, ENGINE ADJUSTING
5EB-21495-00-00
Superseded by 4C8-21495-00-00
$16.49
Unavailable
#31 COVER 2
5SL-2117M-10-00
$29.99
Available: Ships in 7-12 days.
Add to View Price
#32 DAMPER 2
36Y-21639-00-00
$9.49
Unavailable
#33 SEAL SET, 1
5SL-21208-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#34 CLAMP
90464-12036-00
Superseded by 90464-10112-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 RIVET
90269-07007-00
$3.30
In Stock: Ready to ship.
Add to View Price
#36 SEAL
5SL-21268-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#37 DAMPER
5SL-2139X-00-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#38 CLAMP
90464-15195-00
$3.30
In Stock: Ready to ship.
Add to View Price
