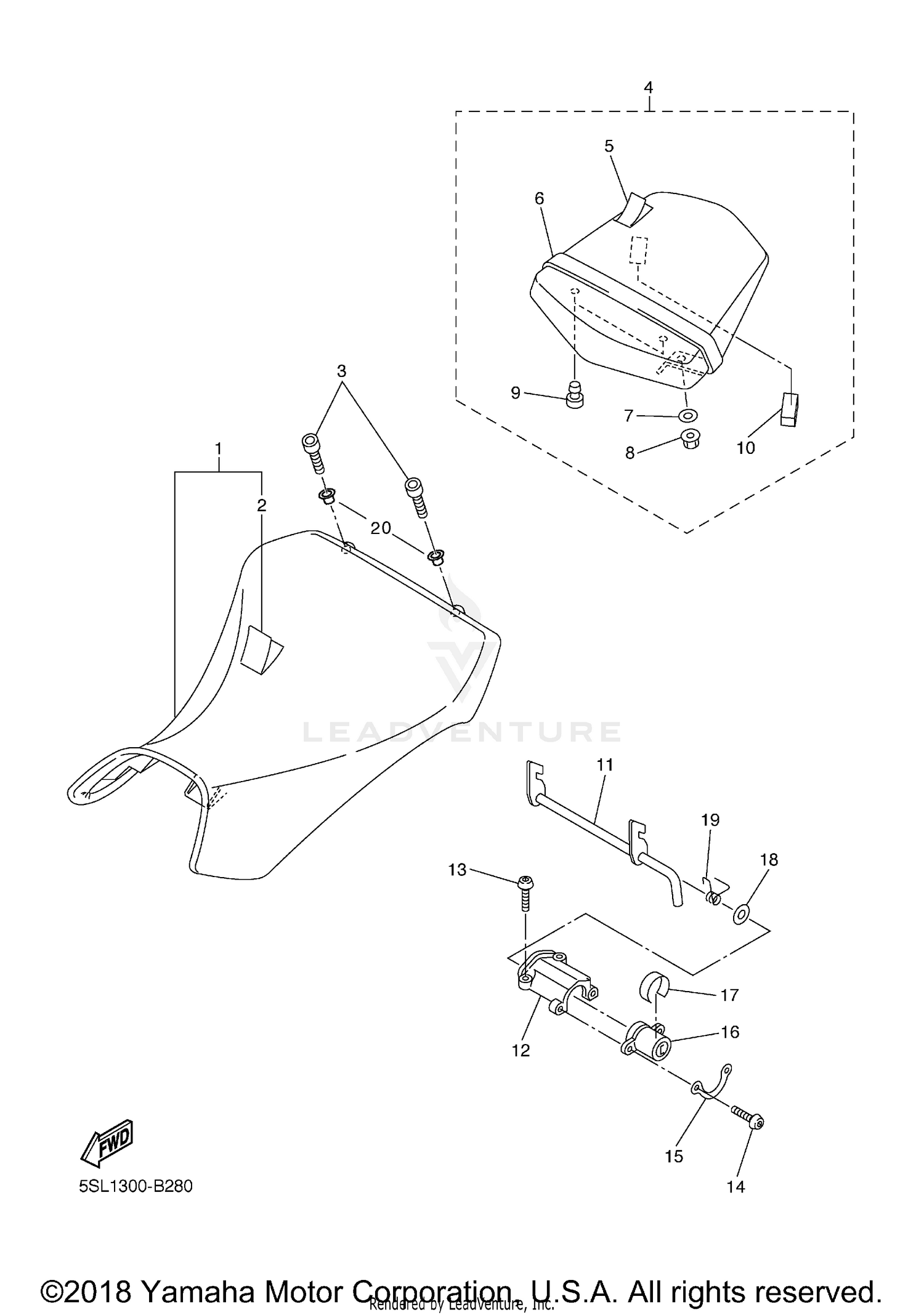

2005 Yamaha YZF R6 SEAT OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 SINGLE SEAT ASSY
5SL-24710-00-00
$188.99
Available: Ships in 7-12 days.
Add to View Price
#2 SEAT COVER COMP.
5SL-2470F-00-00
$84.99
Available: Ships in 7-12 days.
Add to View Price
#3 BOLT, HEXAGON SOCKET HEAD
90110-06258-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 TANDEM SEAT ASSY
5SL-24750-00-00
Superseded by 5SL-24750-01-00
$145.99
Available: Ships in 7-12 days.
Add to View Price
#5 COVER, TANDEM SEAT
5SL-24751-00-00
$53.99
Available: Ships in 7-12 days.
Add to View Price
#6 SEAT BAND ASSY
5SL-24720-00-00
$51.99
Available: Ships in 7-12 days.
Add to View Price
#7 WASHER, PLATE
90201-06008-00
Superseded by 90201-06M02-00
$2.10
In Stock: Ready to ship.
Add to View Price
#8 NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
$6.49
In Stock: Ready to ship.
Add to View Price
#9 DAMPER, SEAT
5SL-24723-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 DAMPER, SEAT
5SL-24724-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#11 SEAT LOCK ASSY
5SL-24780-00-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#12 PLATE
5SL-24792-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#13 BOLT, BUTTON HEAD
92017-06025-00
$6.49
In Stock: Ready to ship.
Add to View Price
#14 BOLT, BUTTON HEAD
92017-06014-00
$3.30
In Stock: Ready to ship.
Add to View Price
#15 PLATE, COVER
5SL-2479R-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#16 ROTOR SET
5SL-W2470-00-00
$61.99
Available: Ships in 7-12 days.
Add to View Price
#17 SEAL
5SL-24858-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#18 WASHER, PLATE
90202-08001-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#19 SPRING
5SL-24758-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#20 COLLAR
90387-06066-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
