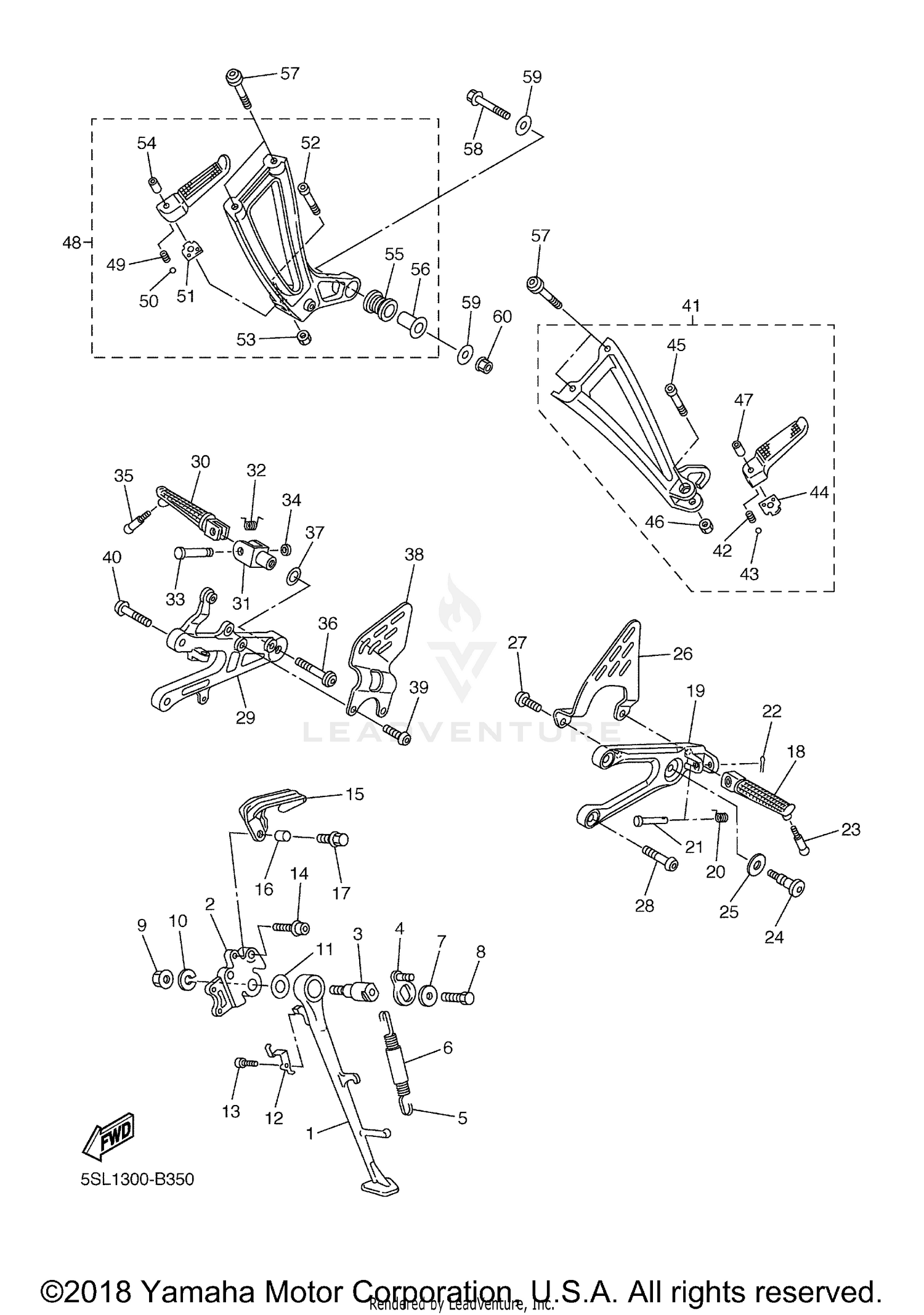

2005 Yamaha YZF R6 STAND FOOTREST OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 STAND, SIDE
5SL-27311-10-00
$111.99
Available: Ships in 7-12 days.
Add to View Price
#2 BRACKET, SIDE STAND
5SL-27321-00-00
$70.99
Available: Ships in 7-12 days.
Add to View Price
#3 GUIDE, SIDE STAND
4NX-27351-00-00
$72.99
Available: Ships in 7-12 days.
Add to View Price
#4 HOOK, SIDE STAND
5PW-27352-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#5 SPRING, TENSION
90506-18008-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#6 HOSE (L60)
90445-19002-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#7 WASHER, PLATE
90201-081R9-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 BOLT
90101-08662-00
Superseded by 97017-08020-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 NUT, U FLANGE
95607-10200-00
$3.30
In Stock: Ready to ship.
Add to View Price
#10 WASHER, PLATE
90201-101J1-00
$6.49
In Stock: Ready to ship.
Add to View Price
#11 WASHER, PLATE
90201-146F9-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#12 LINK, SIDE STAND
5JJ-27315-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#13 BOLT, HEXAGON SOCKET HEAD
91317-06012-00
$6.49
In Stock: Ready to ship.
Add to View Price
#14 BOLT, HEXAGON SOCKET
90109-105G7-00
Superseded by 90110-10012-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#15 GUIDE, CHAIN
5SL-22187-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#16 COLLAR
90387-073M0-00
Superseded by 90387-060U2-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#17 BOLT, WITH WASHER
90119-06192-00
$6.49
In Stock: Ready to ship.
Add to View Price
#18 FOOTREST
5SL-27451-00-00
Superseded by 2C0-27451-00-00
$45.99
In Stock: Ready to ship.
Add to View Price
#19 BRACKET 2
5SL-27442-00-00
Superseded by 5SL-27442-01-00
$58.99
Available: Ships in 7-12 days.
Add to View Price
#20 SPRING, TORSION
90508-18134-00
$6.49
In Stock: Ready to ship.
Add to View Price
#21 PIN
90240-08084-00
Superseded by 91701-08038-00
$3.30
In Stock: Ready to ship.
Add to View Price
#22 PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#23 BOLT
90109-08018-00
Superseded by 90109-08177-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#24 BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
$1.85
In Stock: Ready to ship.
Add to View Price
#25 WASHER, PLATE
90201-08326-00
$6.49
In Stock: Ready to ship.
Add to View Price
#26 PLATE 1
5SL-27445-00-00
$106.99
Available: Ships in 7-12 days.
Add to View Price
#27 BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
$5.99
In Stock: Ready to ship.
Add to View Price
#28 BOLT
90109-085G6-00
$2.15
Available: Ships in 7-12 days.
Add to View Price
#29 BRACKET 3
5SL-27443-00-00
Superseded by 5SL-27443-01-00
$57.99
Available: Ships in 7-12 days.
Add to View Price
#30 FOOTREST
5SL-27461-00-00
$44.99
Available: Ships in 7-12 days.
Add to View Price
#31 FOOTREST 1
5JJ-27411-01-00
$51.99
Available: Ships in 7-12 days.
Add to View Price
#32 SPRING, TORSION
90508-18135-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#33 PIN
90243-08029-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#34 WASHER, PLATE
90201-06042-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 BOLT
90109-08018-00
Superseded by 90109-08177-00
$6.49
Unavailable
#36 BOLT, HEXAGON SOCKET HEAD
90149-08296-00
Superseded by 90110-08220-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#37 WASHER, PLATE
90201-13008-00
$6.49
In Stock: Ready to ship.
Add to View Price
#38 PLATE 2
5SL-27446-00-00
$104.99
Available: Ships in 7-12 days.
Add to View Price
#39 BOLT, BUTTON HEAD
90149-06233-00
Superseded by 92017-06012-00
$5.99
Unavailable
#40 BOLT
90109-085G6-00
$2.15
Unavailable
#41 REAR FOOTREST ASSY 1
5SL-27430-00-00
Superseded by 5SL-27430-02-00
$123.99
Available: Ships in 7-12 days.
Add to View Price
#42 SPRING, COMPRESSION
90501-12743-00
$3.30
In Stock: Ready to ship.
Add to View Price
#43 BALL
93501-04011-00
$6.49
In Stock: Ready to ship.
Add to View Price
#44 WASHER, SPECIAL
5JJ-27437-00-00
Superseded by 5JJ-27437-01-00
$5.49
In Stock: Ready to ship.
Add to View Price
#45 BOLT, HEXAGON SOCKET HEAD
91314-06035-00
$6.49
In Stock: Ready to ship.
Add to View Price
#46 NUT, U FLANGE
95604-06200-00
$6.49
In Stock: Ready to ship.
Add to View Price
#47 COLLAR
90387-06697-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#48 REAR FOOTREST ASSY 2
5SL-27440-00-00
Superseded by 5SL-27440-02-00
$135.99
Available: Ships in 7-12 days.
Add to View Price
#49 SPRING, COMPRESSION
90501-12743-00
$3.30
Unavailable
#50 BALL
93501-04011-00
$6.49
Unavailable
#51 WASHER, SPECIAL
5JJ-27437-00-00
Superseded by 5JJ-27437-01-00
$5.49
Unavailable
#52 BOLT, HEXAGON SOCKET HEAD
91314-06035-00
$6.49
Unavailable
#53 NUT, U FLANGE
95604-06200-00
$6.49
Unavailable
#54 COLLAR
90387-06697-00
$11.99
Unavailable
#55 DAMPER, FOOTREST 2
5SL-27424-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#56 COLLAR
90387-08020-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#57 BOLT, HEXAGON SOCKET HEAD
90110-08220-00
$5.49
Unavailable
#58 BOLT, FLANGE
90105-08053-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#59 WASHER, PLATE
90201-08034-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#60 NUT, U FLANGE
95604-08200-00
$2.20
In Stock: Ready to ship.
Add to View Price
