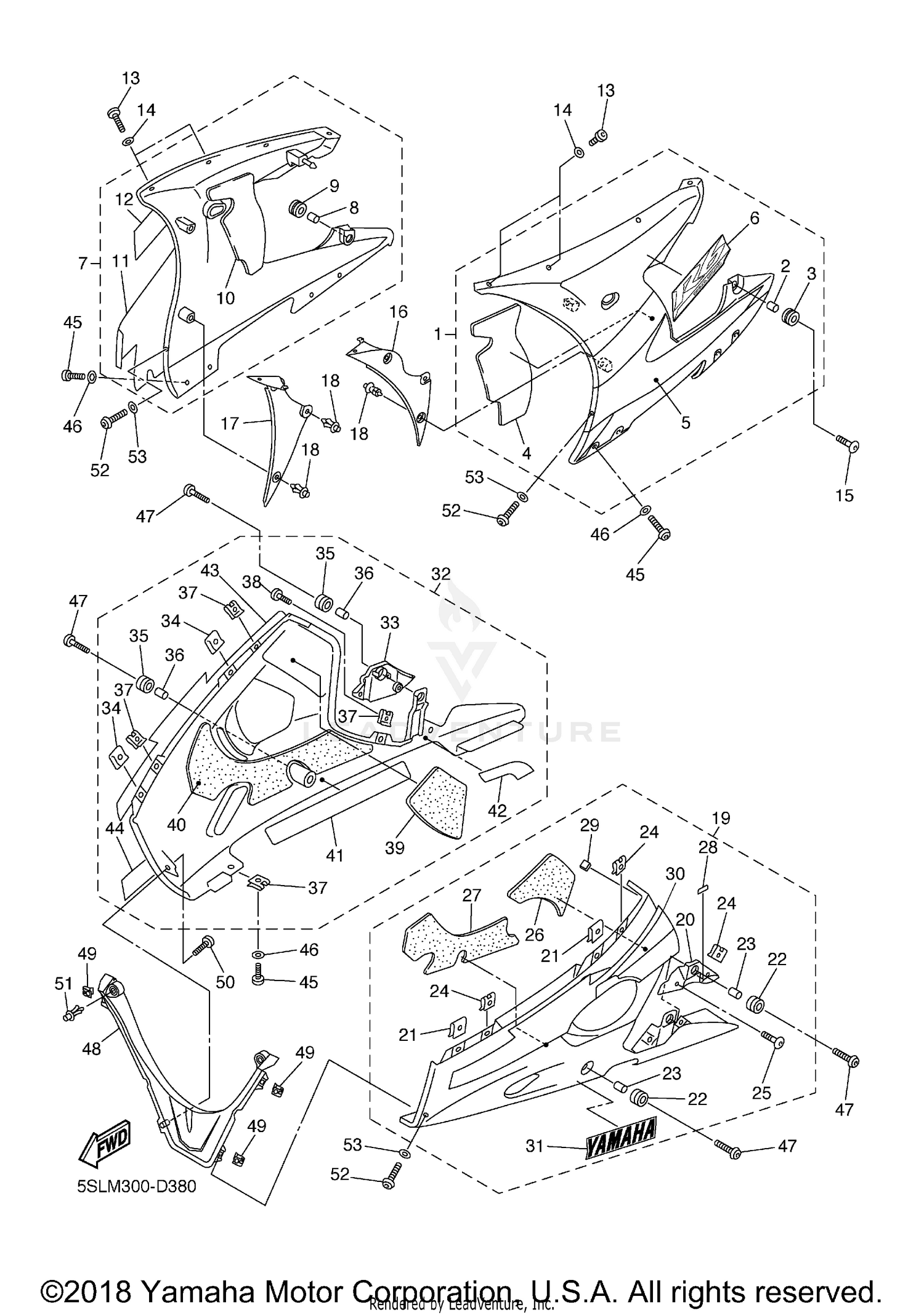

2005 Yamaha YZF R6 COWLING 2 OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 PANEL ASSEMBLY 1 5SL-Y283U-F0-P2	$545.99
Available: Ships in 7-12 days. Add to View Price
#1 PANEL ASSEMBLY 1 5SL-Y283U-G0-P1	$564.99
Available: Ships in 7-12 days. Add to View Price
#1 PANEL ASSEMBLY 1 5SL-Y283U-H0-P0	$383.99
Available: Ships in 7-12 days. Add to View Price
#2 COLLAR 90387-06057-00	$6.49
In Stock: Ready to ship. Add to View Price
#3 GROMMET 90480-14003-00	$6.49
In Stock: Ready to ship. Add to View Price
#4 DAMPER, LOCATING 1 5SL-2836T-00-00	$8.49
Available: Ships in 7-12 days. Add to View Price
#5 GRAPHIC 1 5SL-28391-30-00	$115.99
Available: Ships in 7-12 days. Add to View Price
#5 GRAPHIC 1 5SL-28391-40-00	$100.99
Available: Ships in 7-12 days. Add to View Price
#6 EMBLEM 1 5SL-2834C-B0-00	$19.49
Available: Ships in 7-12 days. Add to View Price
#6 EMBLEM 1 5SL-2834C-C0-00	$22.99
Available: Ships in 7-12 days. Add to View Price
#6 EMBLEM 1 5SL-2834C-D0-00	$16.49
Available: Ships in 7-12 days. Add to View Price
#7 PANEL ASSEMBLY 2 5SL-Y283V-F0-P2	$431.99
Available: Ships in 7-12 days. Add to View Price
#7 PANEL ASSEMBLY 2 5SL-Y283V-G0-P1	$564.99
Available: Ships in 7-12 days. Add to View Price
#7 PANEL ASSEMBLY 2 5SL-Y283V-H0-P0	$364.99
Available: Ships in 7-12 days. Add to View Price
#8 COLLAR 90387-06057-00	$6.49
Unavailable
#9 GROMMET 90480-14003-00	$6.49
Unavailable
#10 DAMPER, LOCATING 2 5SL-2836U-00-00	$8.49
Available: Ships in 7-12 days. Add to View Price
#11 GRAPHIC 2 5SL-28392-30-00	$115.99
Available: Ships in 7-12 days. Add to View Price
#11 GRAPHIC 2 5SL-28392-40-00	$115.99
Available: Ships in 7-12 days. Add to View Price
#12 EMBLEM 1 5SL-2834C-C0-00	$22.99
Unavailable
#12 EMBLEM 1 5SL-2834C-B0-00	$19.49
Unavailable
#12 EMBLEM 1 5SL-2834C-D0-00	$16.49
Unavailable
#13 BOLT, HEXAGON SOCKET HEAD 90111-05003-00	$6.49
In Stock: Ready to ship. Add to View Price
#14 WASHER, PLATE 90202-05180-00	$6.49
In Stock: Ready to ship. Add to View Price
#15 BOLT, HEX. SOCKET BUTTON 90111-06040-00	$3.30
In Stock: Ready to ship. Add to View Price
#16 PANEL, INNER 1 5SL-2836K-00-00	$46.99
Available: Ships in 7-12 days. Add to View Price
#17 PANEL, INNER 2 5SL-2836L-00-00	$46.99
Available: Ships in 7-12 days. Add to View Price
#18 RIVET 90269-06008-00	$6.49
In Stock: Ready to ship. Add to View Price
#19 COVER ASSY, UNDER 5SL-Y2808-60-P0	$400.99
Available: Ships in 7-12 days. Add to View Price
#19 COVER ASSY, UNDER 5SL-Y2808-80-P0	$400.99
Available: Ships in 7-12 days. Add to View Price
#19 COVER ASSY, UNDER 5SL-Y2808-70-P1	$400.99
Available: Ships in 7-12 days. Add to View Price
#20 COVER 3 5SL-2843J-00-00	$6.49
Available: Ships in 7-12 days. Add to View Price
#21 NUT, SPRING 90183-05024-00 Superseded by 90183-051A0-00	$3.30
Available: Ships in 7-12 days. Add to View Price
#22 GROMMET 90480-14003-00	$6.49
Unavailable
#23 COLLAR 90387-06057-00	$6.49
Unavailable
#24 NUT, SPRING 90183-05061-00	$4.35
Available: Ships in 7-12 days. Add to View Price
#25 BOLT, HEX. SOCKET BUTTON 90111-05002-00	$6.49
Available: Ships in 7-12 days. Add to View Price
#26 DAMPER 3 5SL-2834E-00-00	$3.30
Available: Ships in 7-12 days. Add to View Price
#27 DAMPER 5 5SL-2837J-00-00	$12.99
Available: Ships in 7-12 days. Add to View Price
#28 PLATE, DAMPER 1HX-27415-00-00	$6.49
Available: Ships in 7-12 days. Add to View Price
#29 DAMPER 5SL-21649-00-00	$6.49
Available: Ships in 7-12 days. Add to View Price
#30 GRAPHIC, UNDER COVER 1 5SL-283A1-00-00	$79.31
Available: Ships in 7-12 days. Add to View Price
#31 EMBLEM, YAMAHA 99241-00280-00	$12.99
Available: Ships in 7-12 days. Add to View Price
#31 EMBLEM, YAMAHA 99247-00280-00	$14.99
In Stock: Ready to ship. Add to View Price
#32 COVER ASSY 2, UNDER 5SL-Y2809-60-P0	$400.99
Available: Ships in 7-12 days. Add to View Price
#32 COVER ASSY 2, UNDER 5SL-Y2809-70-P1	$400.99
Available: Ships in 7-12 days. Add to View Price
#32 COVER ASSY 2, UNDER 5SL-Y2809-80-P0	$388.99
Available: Ships in 7-12 days. Add to View Price
#33 COVER 4 5SL-2844J-00-00	$8.49
Available: Ships in 7-12 days. Add to View Price
#34 NUT, SPRING 90183-05024-00 Superseded by 90183-051A0-00	$3.30
Unavailable
#35 GROMMET 90480-14003-00	$6.49
Unavailable
#36 COLLAR 90387-06057-00	$6.49
Unavailable
#37 NUT, SPRING 90183-05061-00	$4.35
Unavailable
#38 BOLT, HEX. SOCKET BUTTON 90111-05002-00	$6.49
Unavailable
#39 DAMPER 5SL-2834F-00-00	$3.30
Available: Ships in 7-12 days. Add to View Price
#40 DAMPER 6 5SL-2837K-00-00	$12.99
Available: Ships in 7-12 days. Add to View Price
#41 SEAT 1 5SL-2838G-00-00	$10.99
Available: Ships in 7-12 days. Add to View Price
#42 SEAT 2 5SL-2848K-00-00	$6.49
Available: Ships in 7-12 days. Add to View Price
#43 GRAPHIC, UNDER COVER 2 5SL-283A2-00-00	$82.99
Available: Ships in 7-12 days. Add to View Price
#44 EMBLEM, YAMAHA 99241-00280-00	$12.99
Unavailable
#44 EMBLEM, YAMAHA 99247-00280-00	$14.99
Unavailable
#45 BOLT, HEXAGON SOCKET HEAD 90111-05003-00	$6.49
Unavailable
#46 WASHER, PLATE 90202-05180-00	$6.49
Unavailable
#47 BOLT, HEX. SOCKET BUTTON 90111-06040-00	$3.30
Unavailable
#48 PANEL, INNER 3 5SL-2836M-10-00	$70.99
Available: Ships in 7-12 days. Add to View Price
#49 NUT, SPRING 90183-05061-00	$4.35
Unavailable
#50 SCREW, TRUSS HEAD TAPPING 97707-50016-00	$3.30
In Stock: Ready to ship. Add to View Price
#51 RIVET 90269-07007-00	$3.30
In Stock: Ready to ship. Add to View Price
#52 BOLT, HEXAGON SOCKET HEAD 90111-05003-00	$6.49
Unavailable
#53 WASHER, PLATE 90202-05180-00	$6.49
Unavailable
