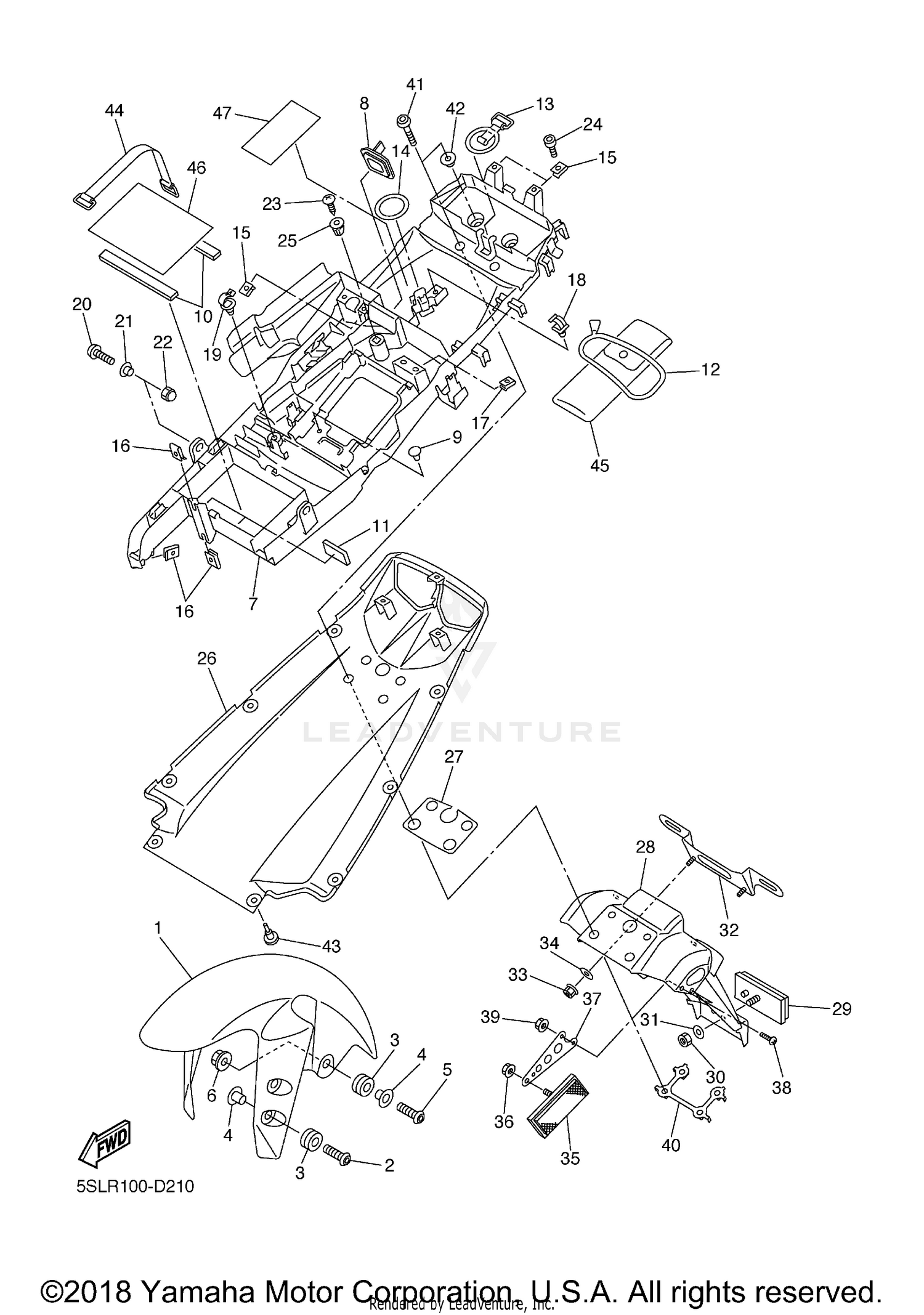

2005 Yamaha YZF R6 FENDER OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 FENDER, FRONT
5PW-21511-00-P1
Superseded by 5PW-21511-02-P1
$183.99
Unavailable
#1 FENDER, FRONT
5PW-21511-00-P0
Superseded by 5PW-21511-01-P0
$191.99
Available: Ships in 7-12 days.
Add to View Price
#1 FENDER, FRONT
5PW-21511-00-P6
Superseded by 5PW-21511-02-P6
$114.99
Available: Ships in 7-12 days.
Add to View Price
#2 BOLT, HEXAGON SOCKET BUTTON
90111-06043-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#3 GROMMET
90480-12072-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 COLLAR
90387-065J6-00
Superseded by 90387-06159-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 BOLT, HEXAGON SOCKET BUTTON
90111-06030-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#6 NUT, FLANGE
95707-06500-00
$0.95
Available: Ships in 7-12 days.
Add to View Price
#7 BOX, BATTERY 1
5SL-8212B-01-00
$144.99
Available: Ships in 7-12 days.
Add to View Price
#8 COVER, TAILLIGHT
5MT-2172X-00-00
$4.65
Available: Ships in 7-12 days.
Add to View Price
#9 PLUG
90338-06018-00
Superseded by 90338-07180-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 DAMPER 1
1AE-2834E-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#11 DAMPER, SEAT
3KJ-24723-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#12 BAND, TOOL
3YX-21376-00-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#13 BAND
5SL-21646-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#14 BAND
5SL-21647-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#15 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#16 NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#17 NUT, spring
90183-04039-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#18 CLAMP
90464-07259-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#19 CLAMP
90464-13249-00
$2.80
Available: Ships in 7-12 days.
Add to View Price
#20 BOLT, BUTTON HEAD
90111-06007-00
Superseded by 92017-06016-00
$6.49
In Stock: Ready to ship.
Add to View Price
#21 COLLAR
90387-06022-00
Superseded by 90387-06106-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#22 NUT, CROWN
90176-06055-00
$6.49
In Stock: Ready to ship.
Add to View Price
#23 SCREW, TAPPING
97707-60020-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#24 BOLT
91317-05012-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#25 PLUG
90338-08226-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#26 FENDER, REAR
5SL-21611-00-P0
$138.99
Available: Ships in 7-12 days.
Add to View Price
#26 FENDER, REAR
5SL-21611-00-P1
$154.99
Available: Ships in 7-12 days.
Add to View Price
#26 FENDER, REAR
5SL-21611-00-P4
$150.99
Available: Ships in 7-12 days.
Add to View Price
#27 SEAL
5SL-21669-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#28 GUARD, MUD
5SL-21629-11-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#29 REAR REFLECTOR ASSY
3Y6-85130-02-00
$19.99
Available: Ships in 7-12 days.
Add to View Price
#30 NUT, U
95607-05100-00
Superseded by 95617-05100-00
$6.49
In Stock: Ready to ship.
Add to View Price
#31 WASHER, PLATE
90201-05725-00
$6.49
In Stock: Ready to ship.
Add to View Price
#32 BRACKET, LICENSE
5MT-84751-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#33 NUT, U
95607-06100-00
Superseded by 95617-06100-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#34 WASHER, PLATE
90201-06057-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#35 REAR REFLECTOR ASSY
3Y6-85130-02-00
$19.99
Unavailable
#36 NUT, FLANGE
95707-05500-00
$6.49
In Stock: Ready to ship.
Add to View Price
#37 BRACKET, REAR STAY
5PW-21688-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#38 SCREW, ROUND HEAD
90150-04041-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#39 NUT, U
95607-04100-00
Superseded by 95617-04100-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#40 BRACKET 6
5PW-2161G-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#41 BOLT, BUTTON HEAD
92017-06020-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#42 COLLAR
90387-065G0-00
Superseded by 90387-07391-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#43 RIVET
90269-07077-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#44 BAND, BATTERY
5JJ-82131-00-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#45 TOOL KIT
5SL-28100-00-00
$99.99
Available: Ships in 7-12 days.
Add to View Price
#46 MAT 1
5EB-14733-00-00
$25.99
Unavailable
#47 PLATE, EPA 1 (NON CALIFORNIA)
5SL-2179V-20-00
$4.25
Unavailable
#47 PLATE, EPA 2 (CALIFORNIA)
5SL-2179R-20-00
$5.99
Unavailable
