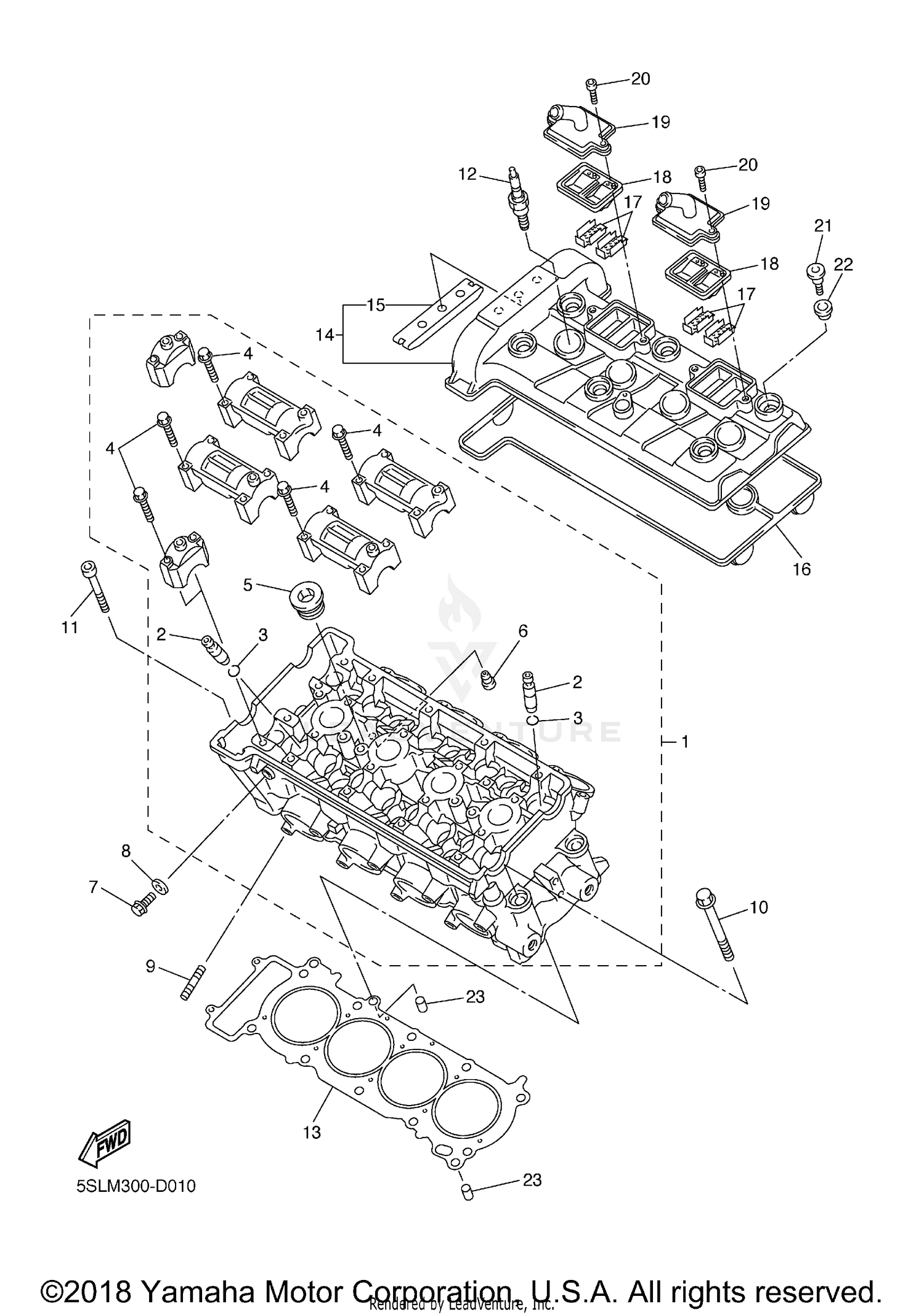

2005 Yamaha YZF R6 CYLINDER OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 CYLINDER HEAD ASSY
5SL-11101-10-00
$1,313.39
Available: Ships in 7-12 days.
Add to View Price
#2 GUIDE, VALVE 1
5EB-11133-10-00
$38.99
Available: Ships in 7-12 days.
Add to View Price
#3 CIRCLIP
93440-10153-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 BOLT, FLANGE
90105-06027-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 PLUG, STRAIGHT SCREW
90340-20090-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#6 NOZZLE 1
11H-15138-00-00
$3.99
Available: Ships in 7-12 days.
Add to View Price
#7 BOLT, FLANGE
95027-08012-00
$6.49
In Stock: Ready to ship.
Add to View Price
#8 GASKET
90430-08119-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#9 BOLT, STUD
95617-08625-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 BOLT, WITH WASHER
90119-10003-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#11 BOLT
91317-06060-00
$3.30
In Stock: Ready to ship.
Add to View Price
#12 CR10EK NGK SPLUG 1
94701-00402-00
Superseded by CR1-0EK00-00-00
$9.49
Available: Ships in 7-12 days.
Add to View Price
#13 GASKET, CYLINDER HEAD 1
5SL-11181-00-00
$87.99
Available: Ships in 7-12 days.
Add to View Price
#14 COVER, CYLINDER HEAD 1
5SL-11191-01-00
$276.99
Available: Ships in 7-12 days.
Add to View Price
#15 GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
$23.99
Available: Ships in 7-12 days.
Add to View Price
#16 GASKET, HEAD COVER 1
5SL-11193-00-00
$43.99
Available: Ships in 7-12 days.
Add to View Price
#17 PLATE
5SL-1482K-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#18 REED VALVE ASSY
5SL-14890-00-00
$76.99
Available: Ships in 7-12 days.
Add to View Price
#19 CAP, CASE
5SL-14899-00-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#20 BOLT
90110-06118-00
Superseded by 91317-06025-00
$6.49
In Stock: Ready to ship.
Add to View Price
#21 BOLT
90109-066F0-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#22 RUBBER, MOUNT 1
4KG-1111G-00-00
Superseded by 5EA-1111G-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#23 PIN, DOWEL
99530-10114-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
