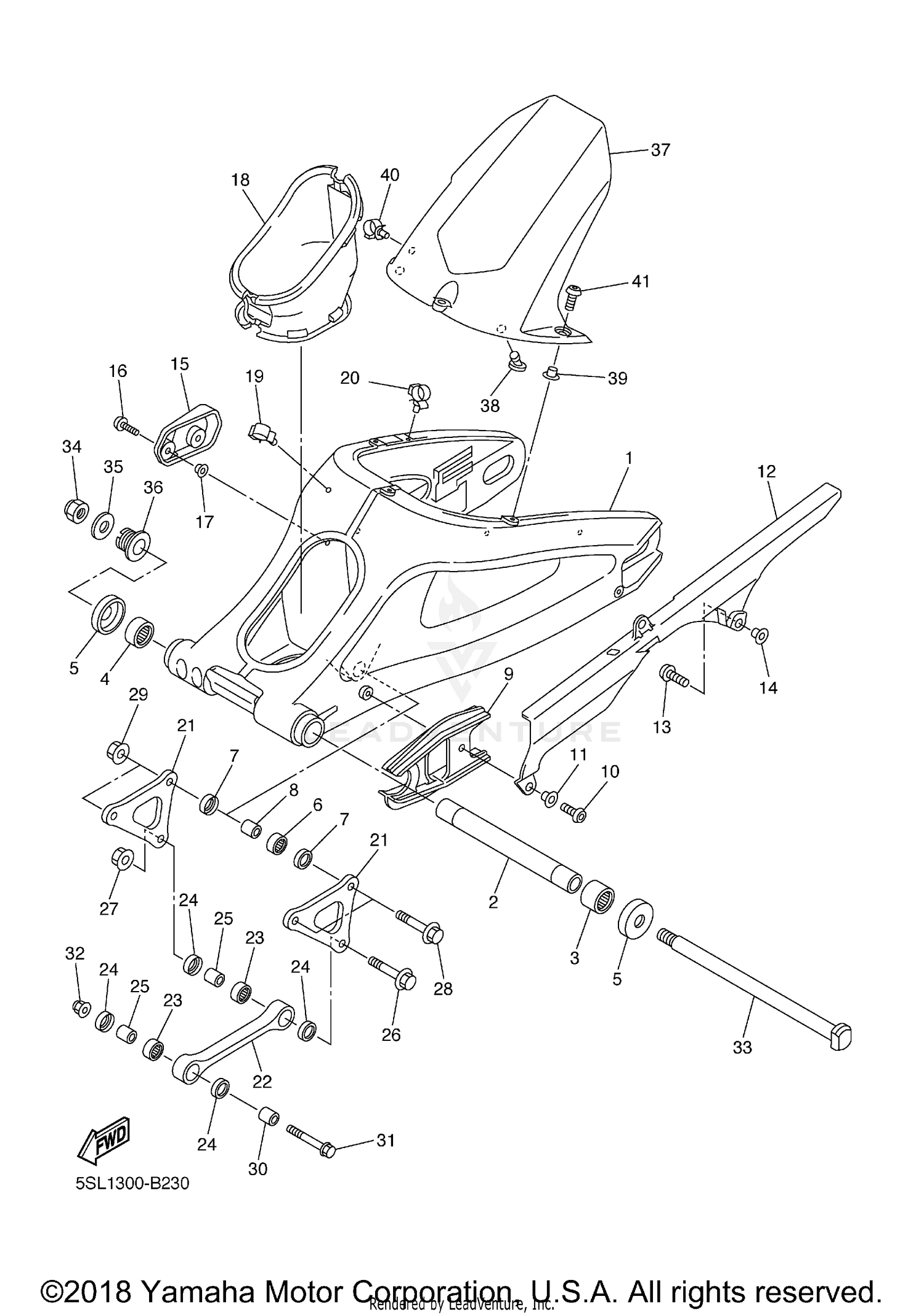

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5SL-22110-01-00
|
$1,432.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
5EB-22184-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-42550-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93315-42536-00
Superseded by 93317-425B7-00
|
$45.99 | ||
|
Unavailable |
|||
|
#5
COVER, THRUST 1
5JJ-22128-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93315-41762-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-1012A-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
5SL-22151-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COLLAR
90387-062X0-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CASE, CHAIN
5SL-22311-00-00
Superseded by 5SL-22311-01-00
|
$96.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06102-00
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COLLAR
90387-06009-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 1
5SL-22381-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
90387-06681-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER
5SL-2219X-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-16012-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLAMP
90464-16011-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, RELAY
5SL-2217A-10-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ARM 1
5SL-2217M-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93315-31758-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
COLLAR
90387-1012A-00
|
$23.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
90105-10017-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-10017-00
|
$24.99 | ||
|
Unavailable |
|||
|
#29
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-1013U-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-10018-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
SHAFT, PIVOT
4FN-22141-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-186M4-00
Superseded by 90201-18264-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
5PW-22125-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
REAR FENDER COMP.
5SL-21650-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER 2
5SL-21639-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-07717-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-16012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
Unavailable |
|||
