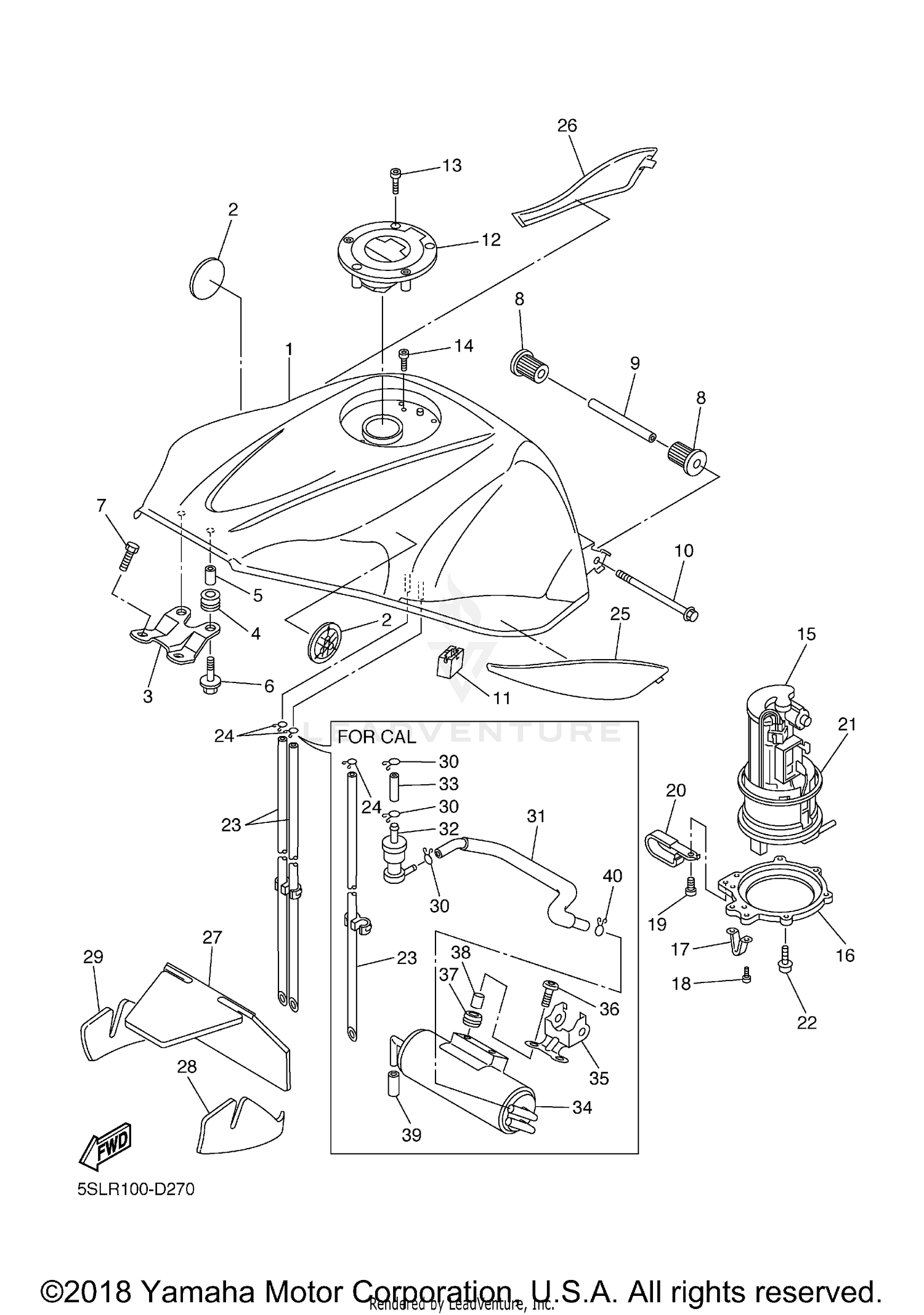

2005 Yamaha YZF R6 FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5SL-YK241-30-P0
|
$880.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
FUEL TANK COMP.
5SL-YK241-30-P2
|
$1,122.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
FUEL TANK COMP.
5SL-YK241-30-P5
|
$947.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
EMBLEM
5SL-2413B-00-00
|
$35.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BRACKET, FUEL TANK 1
5SL-24191-00-00
|
$13.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GROMMET
90480-15483-00
|
$4.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COLLAR
90387-06054-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06062-00
Superseded by 90119-06234-00
|
$4.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-06079-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
DAMPER, LOCATING 3
5SL-24183-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COLLAR
90387-06055-00
|
$3.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT, FLANGE
95827-06090-00
Superseded by 95817-06090-00
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
DAMPER, LOCATING 2
5SL-24182-00-00
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CAP ASSY
5JJ-24602-00-00
Superseded by 39P-24602-00-00
|
$204.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
FUEL PUMP COMP.
5PW-13907-01-00
Superseded by 5PW-13907-04-00
|
$591.99 | ||
|
Unavailable |
|||
|
#16
BRACKET, FUEL PUMP
5SL-24491-10-00
|
$82.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BRACKET, FUEL TANK 2
5PW-24192-00-00
|
$10.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW, BIND
98907-05008-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, BIND
90154-05012-00
Superseded by 98907-05008-00
|
$2.20 | ||
|
Unavailable |
|||
|
#20
CLAMP
90461-10009-00
|
$8.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
O-RING
5JW-24486-00-00
Superseded by 19B-24486-01-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
HOSE ASSY 2
5SL-22907-00-00
|
$8.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
HOSE ASSY 1
5SL-22906-00-00
|
$16.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
COVER, SIDE 1
5SL-24129-00-00
|
$23.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
COVER, SIDE 2
5SL-24139-00-00
|
$23.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
DAMPER, PLATE 1
5SL-2414H-00-00
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
DAMPER, PLATE 2
5SL-2414J-00-00
|
$8.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
DAMPER, PLATE 3
5SL-2414K-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
PIPE 4
5SL-24314-00-00
Superseded by 5SL-24314-01-00
|
$41.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$99.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
HOSE (L120)
90445-11732-00
Superseded by 90445-113E8-00
|
$3.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
CANISTER ASSY
5SL-24170-00-00
|
$695.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
BRACKET, CANISTOR
5SL-2419F-00-00
|
$40.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
GROMMET
90480-13018-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
COLLAR
90387-062L2-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HOSE (L70)
90445-11418-00
Superseded by 90445-112E0-00
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
