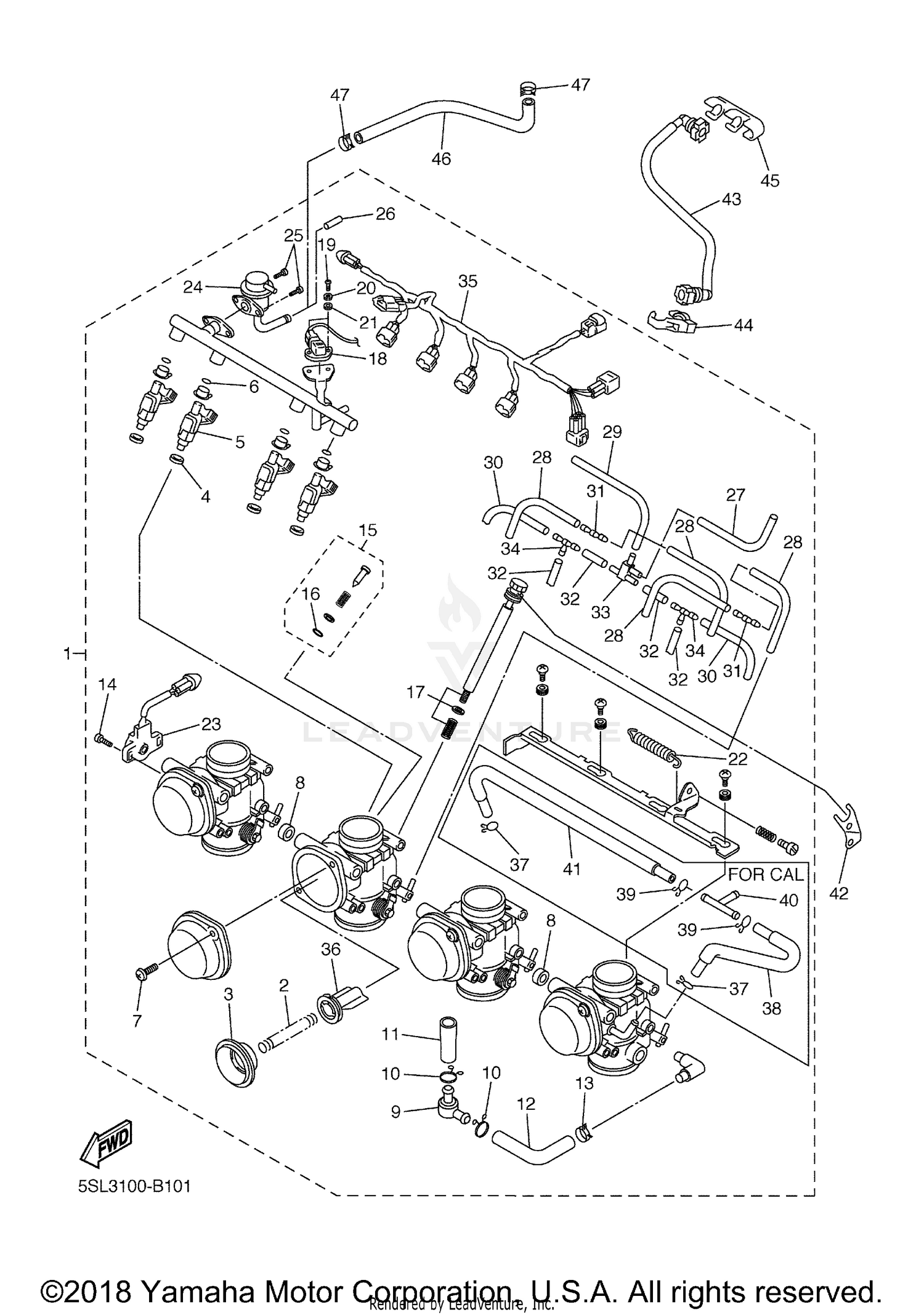

2005 Yamaha YZF R6 INTAKE 2 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 THROTTLE BODY ASSY
5SL-13750-30-00
$1,660.99
Unavailable
#1 THROTTLE BODY ASSY
5SL-13750-40-00
$1,426.99
Unavailable
#2 SPRING, DIAPHRAGM
4SV-14933-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#3 DIAPHRAGM
5SL-24411-00-00
$46.99
Available: Ships in 7-12 days.
Add to View Price
#4 GASKET
5SL-13556-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#5 INJECTOR
5SL-13761-00-00
$198.99
Available: Ships in 7-12 days.
Add to View Price
#6 O-RING
5FL-14147-00-00
$12.99
In Stock: Ready to ship.
Add to View Price
#7 SCREW
4KM-14216-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 HOSE
5SL-14987-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#9 NET, FILTER 2
3LN-24515-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#10 CLIP
90467-15012-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#11 PIPE
5SL-14148-00-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#12 PIPE 1
5SL-14348-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#13 CLIP
90467-15001-00
$4.90
In Stock: Ready to ship.
Add to View Price
#14 SCREW
8CC-14216-10-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#15 AIR SCREW SET
5JW-14104-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#16 O-RING
3H1-14147-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#17 THROTTLE SCREW SET
5SL-14103-00-00
$86.99
Available: Ships in 7-12 days.
Add to View Price
#18 SENSOR, PRESSURE
5JW-82380-00-00
$269.99
Available: Ships in 7-12 days.
Add to View Price
#19 SCREW, WITH WASHER
98507-05016-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#20 WASHER, SPRING
92907-05100-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#21 WASHER, PLATE
92907-05600-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#22 SPRING
5JW-14589-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#23 THROTTLE SENSOR ASSY
5SL-85885-00-00
$220.99
Available: Ships in 7-12 days.
Add to View Price
#24 REGULATOR, PRESSURE
5SL-13906-10-00
$182.99
Available: Ships in 7-12 days.
Add to View Price
#25 SCREW, PAN HEAD
98507-05008-00
$3.30
In Stock: Ready to ship.
Add to View Price
#26 CAP
5JW-14118-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#27 PIPE
5SL-14349-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#28 PIPE
5PW-14396-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#29 PIPE
5PW-14349-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#30 HOSE, VACUUM SENSING 4
68V-13533-00-00
$9.35
Available: Ships in 7-12 days.
Add to View Price
#31 NIPPLE
5PW-14251-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#32 PIPE 1
5FL-14348-10-00
$4.50
Available: Ships in 7-12 days.
Add to View Price
#33 CONNECTOR
5PW-1410F-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#34 PIPE, JOINT 1
68V-24376-00-00
$17.99
Available: Ships in 7-12 days.
Add to View Price
#35 EXTENSION, WIRE HARNESS
5SL-82386-00-00
$167.99
Available: Ships in 7-12 days.
Add to View Price
#36 VALVE, THROTTLE 1
5PW-14112-00-00
$98.99
Available: Ships in 7-12 days.
Add to View Price
#37 CLIP
4LE-14137-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#38 PIPE
5SL-14465-00-00
Superseded by 5SL-14465-01-00
$52.99
Available: Ships in 7-12 days.
Add to View Price
#39 CLIP
90467-10008-00
Superseded by 90467-100A1-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#40 WAY 3
90413-08012-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#41 PIPE
5SL-14466-00-00
$17.99
Unavailable
#42 STAY
5SL-14413-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#43 PIPE, FUEL 1
5SL-13971-00-00
Superseded by 5SL-13971-01-00
$77.99
Available: Ships in 7-12 days.
Add to View Price
#44 CLAMP
90464-16005-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#45 CLAMP
90464-16005-00
$10.99
Unavailable
#46 PIPE, FUEL 2
5SL-13972-00-00
Superseded by 5SL-13972-01-00
$82.99
Available: Ships in 7-12 days.
Add to View Price
#47 CLIP
90467-12003-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
