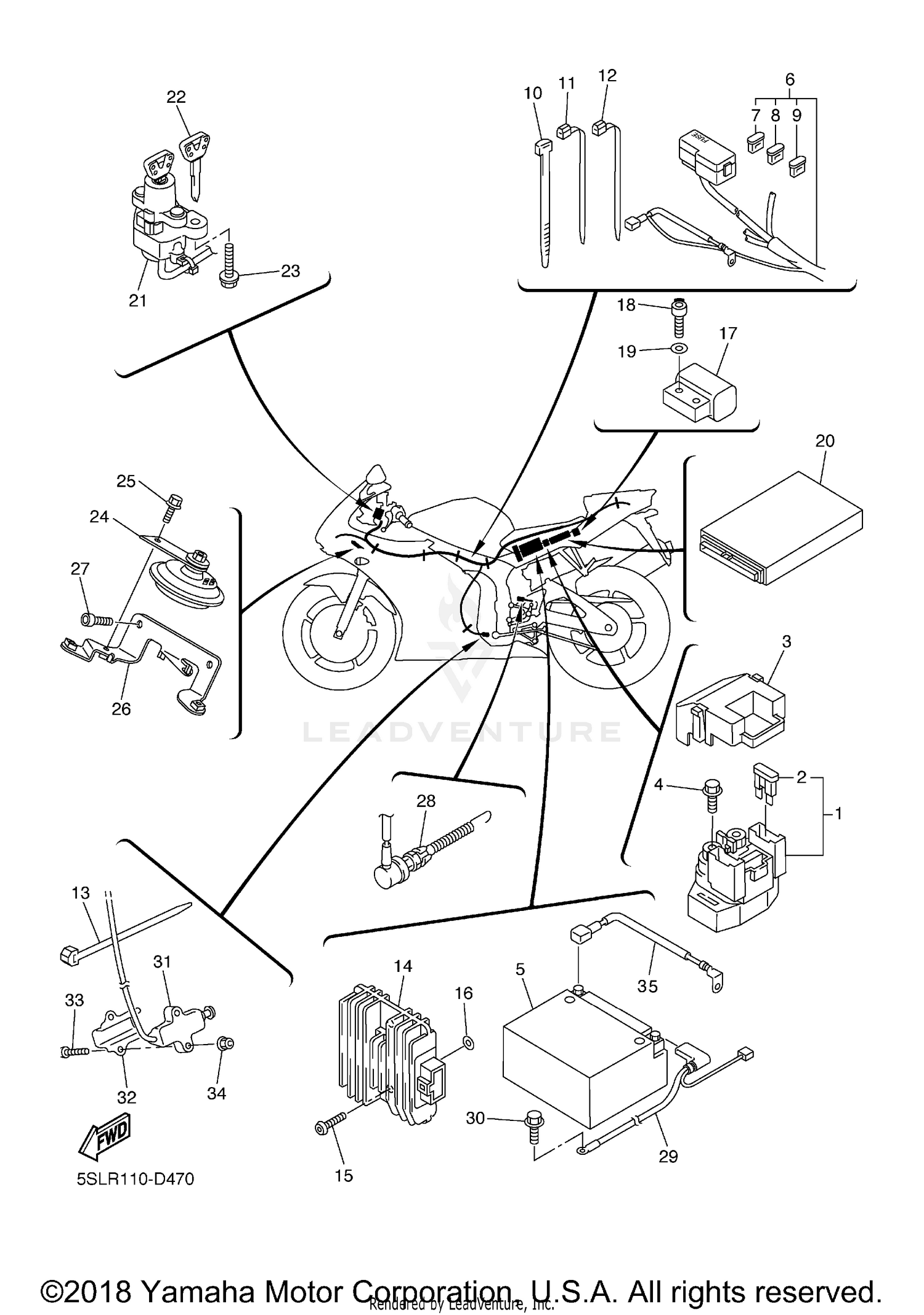

2005 Yamaha YZF R6 ELECTRICAL 2 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 STARTER RELAY ASSY (RC19-40)
5SL-81940-11-00
Superseded by 5SL-81940-12-00
$142.99
Available: Ships in 7-12 days.
Add to View Price
#2 FUSE (40A-BL)
5EA-82151-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#3 COVER, LEAD WIRE
5SL-82119-10-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 BOLT, FLANGE
95027-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 GT9B4 GS BATTERY -
5FL-82100-01-00
Superseded by GT9-B4000-00-00
$103.99
Available: Ships in 7-12 days.
Add to View Price
#6 WIRE HARNESS ASSY
5SL-82590-50-00
$588.04
Available: Ships in 7-12 days.
Add to View Price
#7 FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
$3.40
Available: Ships in 7-12 days.
Add to View Price
#8 FUSE (20A-BL)
5JJ-82151-20-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
$8.99
Available: Ships in 7-12 days.
Add to View Price
#10 CLAMP
90464-15195-00
$3.30
In Stock: Ready to ship.
Add to View Price
#11 CLAMP
3MA-82591-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#12 CLAMP
90464-13077-00
$6.49
In Stock: Ready to ship.
Add to View Price
#13 CLAMP
90464-13073-00
Superseded by 90464-15195-00
$3.30
Unavailable
#14 RECTIFIER & REGULATOR ASSY
5SL-81960-00-00
$205.99
Available: Ships in 7-12 days.
Add to View Price
#15 BOLT, BUTTON HEAD
92017-06025-00
$6.49
In Stock: Ready to ship.
Add to View Price
#16 WASHER, PLATE
90202-06001-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#17 EMERGENCY STOP SWITCH ASSY
5PS-82576-01-00
$92.99
Available: Ships in 7-12 days.
Add to View Price
#18 BOLT, HEX. SOCKET HEAD
91317-04025-00
$4.20
Available: Ships in 7-12 days.
Add to View Price
#19 WASHER, PLATE
90201-042E0-00
$4.49
In Stock: Ready to ship.
Add to View Price
#20 ENGINE CONTROL UNIT ASSY
5SL-8591A-C0-00
$1,286.99
Available: Ships in 7-12 days.
Add to View Price
#21 MAIN SWITCH STEERING LOCK
5SL-82501-11-00
$257.99
Available: Ships in 7-12 days.
Add to View Price
#22 BLANK KEY
4BH-82511-09-00
$24.99
In Stock: Ready to ship.
Add to View Price
#23 BOLT
90109-080G5-00
Superseded by 90109-08196-00
$6.49
In Stock: Ready to ship.
Add to View Price
#24 HORN
4TH-83371-00-00
$41.99
Available: Ships in 7-12 days.
Add to View Price
#25 BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#26 BRACKET, HORN
5SL-23377-10-00
$16.99
Unavailable
#27 BOLT, HEXAGON SOCKET HEAD
91317-06012-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#28 STOP SWITCH ASSY
5SL-82530-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#29 WIRE, MINUS LEAD
5SL-82116-01-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
#30 BOLT
91380-06012-00
$2.99
Available: Ships in 7-12 days.
Add to View Price
#31 SWITCH, SIDE STAND
5PX-82566-71-00
Superseded by 5PX-82566-72-00
$104.99
Available: Ships in 7-12 days.
Add to View Price
#32 PLATE
5JJ-82388-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#33 BOLT, BUTTON HEAD
92017-05030-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#34 NUT, S/L FLANGE
95607-05200-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 WIRE, PLUS LEAD
5SL-82115-00-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
