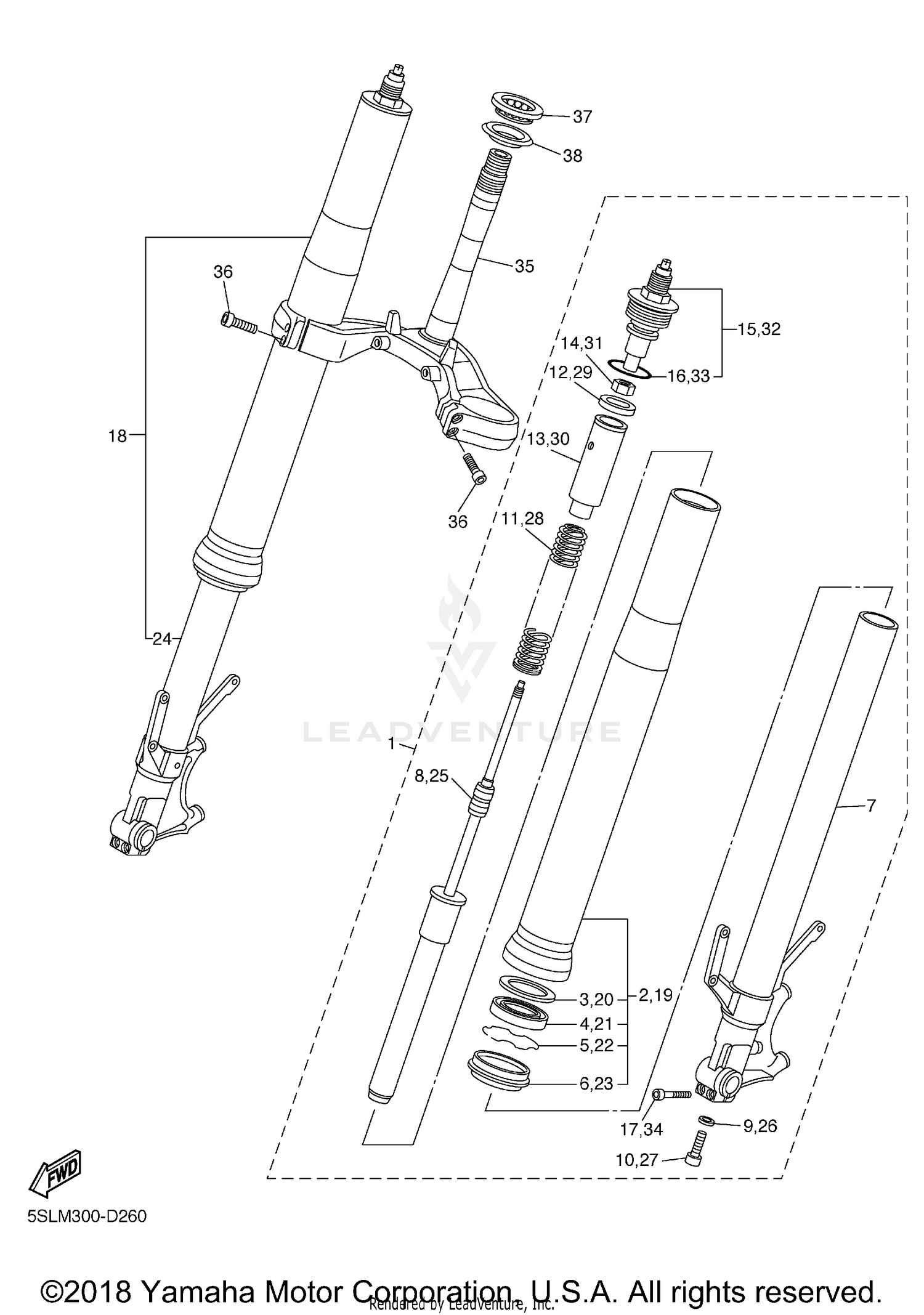

2005 Yamaha YZF R6 FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5SL-23102-30-00
|
$860.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
FRONT FORK ASSY (L.H)
5SL-23102-40-00
|
$860.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
TUBE, OUTER (RIGHT)
5SL-23136-31-00
|
$576.99 | ||
|
Unavailable |
|||
|
#3
WASHER, OIL SEAL
5JJ-23146-00-00
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
OIL SEAL
4XV-23145-00-00
Superseded by 4EB-23145-01-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
OIL SEAL
4EB-23145-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
26H-23156-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SEAL, DUST
4EB-23144-00-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
INNER TUBE COMP. 1
5SL-23110-20-00
|
$422.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
5SL-23170-20-00
|
$573.11 | ||
|
Unavailable |
|||
|
#9
GASKET
509-23158-L0-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING, FRONT FORK
5SL-23141-20-00
|
$63.99 | ||
|
Unavailable |
|||
|
#12
WASHER
5VY-12277-00-00
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPACER
5VY-23118-00-00
|
$44.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT, CAP
5SL-23111-21-00
|
$404.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT, CAP
5SL-23111-41-00
|
$279.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
O-RING
3XJ-23147-L0-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
5SL-23103-40-00
|
$903.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
5SL-23103-30-00
|
$860.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
TUBE, OUTER (RIGHT)
5SL-23136-31-00
|
$576.99 | ||
|
Unavailable |
|||
|
#20
WASHER, OIL SEAL
5JJ-23146-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#21
OIL SEAL
4EB-23145-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#21
OIL SEAL
4XV-23145-00-00
Superseded by 4EB-23145-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#22
CLIP, OIL SEAL
26H-23156-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
SEAL, DUST
4EB-23144-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#24
INNER TUBE COMP. 2
5SL-23120-20-00
|
$481.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CYLINDER COMP., FRONT FORK
5SL-23170-20-00
|
$573.11 | ||
|
Unavailable |
|||
|
#26
GASKET
509-23158-L0-00
|
$12.99 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
5UX-23181-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
SPRING, FRONT FORK
5SL-23141-20-00
|
$63.99 | ||
|
Unavailable |
|||
|
#29
WASHER
5VY-12277-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#30
SPACER
5VY-23118-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#31
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
5SL-23111-41-00
|
$279.99 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
5SL-23111-21-00
|
$404.99 | ||
|
Unavailable |
|||
|
#33
O-RING
3XJ-23147-L0-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
5SL-23340-20-00
|
$435.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BEARING
93399-99932-00
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SEAL, STEERING
3FV-23462-00-00
|
$18.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
FORK SEAL KIT
4EB-W003B-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
