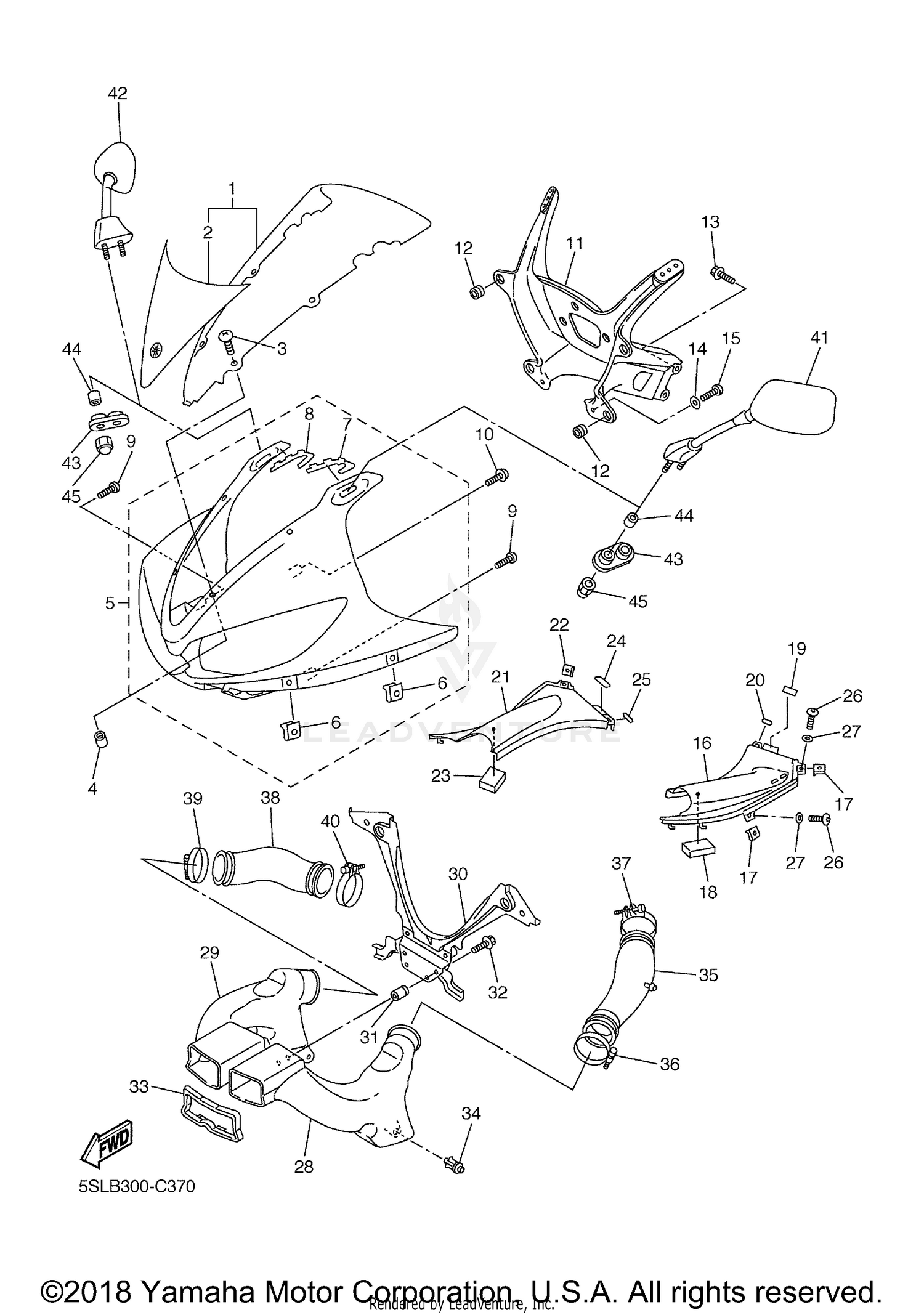

2005 Yamaha YZF R6 COWLING 1 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 WINDSHIELD
5SL-Y2881-10-00
Superseded by 5SL-Y2881-11-00
$125.99
Available: Ships in 7-12 days.
Add to View Price
#2 GRAPHIC 18
5SL-2832P-00-00
$57.99
Available: Ships in 7-12 days.
Add to View Price
#3 SCREW, ROUND HEAD
90150-05024-00
$3.05
In Stock: Ready to ship.
Add to View Price
#4 NUT
90179-05523-00
$6.49
In Stock: Ready to ship.
Add to View Price
#5 UPPER COWLING ASSY 1
5SL-28330-01-P5
$448.99
Available: Ships in 7-12 days.
Add to View Price
#5 UPPER COWLING ASSY
5SL-28330-01-P0
$424.99
Available: Ships in 7-12 days.
Add to View Price
#5 UPPER COWLING ASSY 1
5SL-28330-01-P1
$424.99
Available: Ships in 7-12 days.
Add to View Price
#6 NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#7 SEAL 1
5SL-28428-00-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#8 SEAL 2
5SL-28429-00-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#9 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#10 SCREW, ROUND TAPPING
90160-05007-00
$6.49
In Stock: Ready to ship.
Add to View Price
#11 STAY 1
5SL-28356-00-00
$395.99
Available: Ships in 7-12 days.
Add to View Price
#12 DAMPER
4XV-83513-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#13 BOLT, FLANGE
90105-08052-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#14 WASHER, PLATE
90202-05088-00
$6.35
Available: Ships in 7-12 days.
Add to View Price
#15 SCREW, TAPPING
90167-05078-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#16 PANEL, CONSOLE 1
5SL-2837L-01-00
$39.99
Available: Ships in 7-12 days.
Add to View Price
#17 NUT, SPRING
90183-05061-00
$4.35
In Stock: Ready to ship.
Add to View Price
#18 DAMPER
4XY-21649-00-00
$5.49
In Stock: Ready to ship.
Add to View Price
#19 DAMPER 2
1FK-84527-00-00
Superseded by 1HX-28227-00-00
$2.99
Available: Ships in 7-12 days.
Add to View Price
#20 DAMPER 2
5SL-28416-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#21 PANEL, CONSOLE 2
5SL-2837M-01-00
$39.99
Available: Ships in 7-12 days.
Add to View Price
#22 NUT, SPRING
90183-05061-00
$4.35
Unavailable
#23 DAMPER
4XY-21649-00-00
$5.49
Unavailable
#24 DAMPER 2
1FK-84527-00-00
Superseded by 1HX-28227-00-00
$2.99
Unavailable
#25 DAMPER 2
5SL-28416-00-00
$6.49
Unavailable
#26 BOLT, HEXAGON SOCKET HEAD
90111-05003-00
$6.49
In Stock: Ready to ship.
Add to View Price
#27 WASHER, PLATE
90202-05180-00
$6.49
In Stock: Ready to ship.
Add to View Price
#28 DUCT 2
5SL-2838R-00-00
$82.99
Available: Ships in 7-12 days.
Add to View Price
#29 DUCT 3
5SL-2838T-00-00
$79.99
Available: Ships in 7-12 days.
Add to View Price
#30 COVER, HEADLIGHT
5SL-2838E-00-00
$35.99
Available: Ships in 7-12 days.
Add to View Price
#31 NUT
90179-05523-00
$6.49
Unavailable
#32 BOLT, WITH WASHER
90119-05001-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#33 DAMPER
5SL-28371-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#34 RIVET
90269-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 JOINT, SURGE TANK 1
5EB-1446F-00-00
$39.99
Available: Ships in 7-12 days.
Add to View Price
#36 HOSE CLAMP ASSY
4TV-13575-00-00
Superseded by 90450-64004-00
$9.99
In Stock: Ready to ship.
Add to View Price
#37 HOSE CLAMP ASSY
90460-59211-00
Superseded by 90450-59009-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#38 JOINT, SURGE TANK 1
5EB-1446F-00-00
$39.99
Unavailable
#39 HOSE CLAMP ASSY
4TV-13575-00-00
Superseded by 90450-64004-00
$9.99
Unavailable
#40 HOSE CLAMP ASSY
90460-59211-00
Superseded by 90450-59009-00
$9.99
Unavailable
#41 REAR VIEW MIRROR ASSY (LEFT)
5SL-26280-00-00
$92.99
Available: Ships in 7-12 days.
Add to View Price
#42 REAR VIEW MIRROR ASSY (RIGHT)
5SL-26290-00-00
$99.99
Available: Ships in 7-12 days.
Add to View Price
#43 PLATE, MIRROR FITTING 1
5SL-26298-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#44 COLLAR
90387-06057-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#45 NUT, CROWN
90176-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
