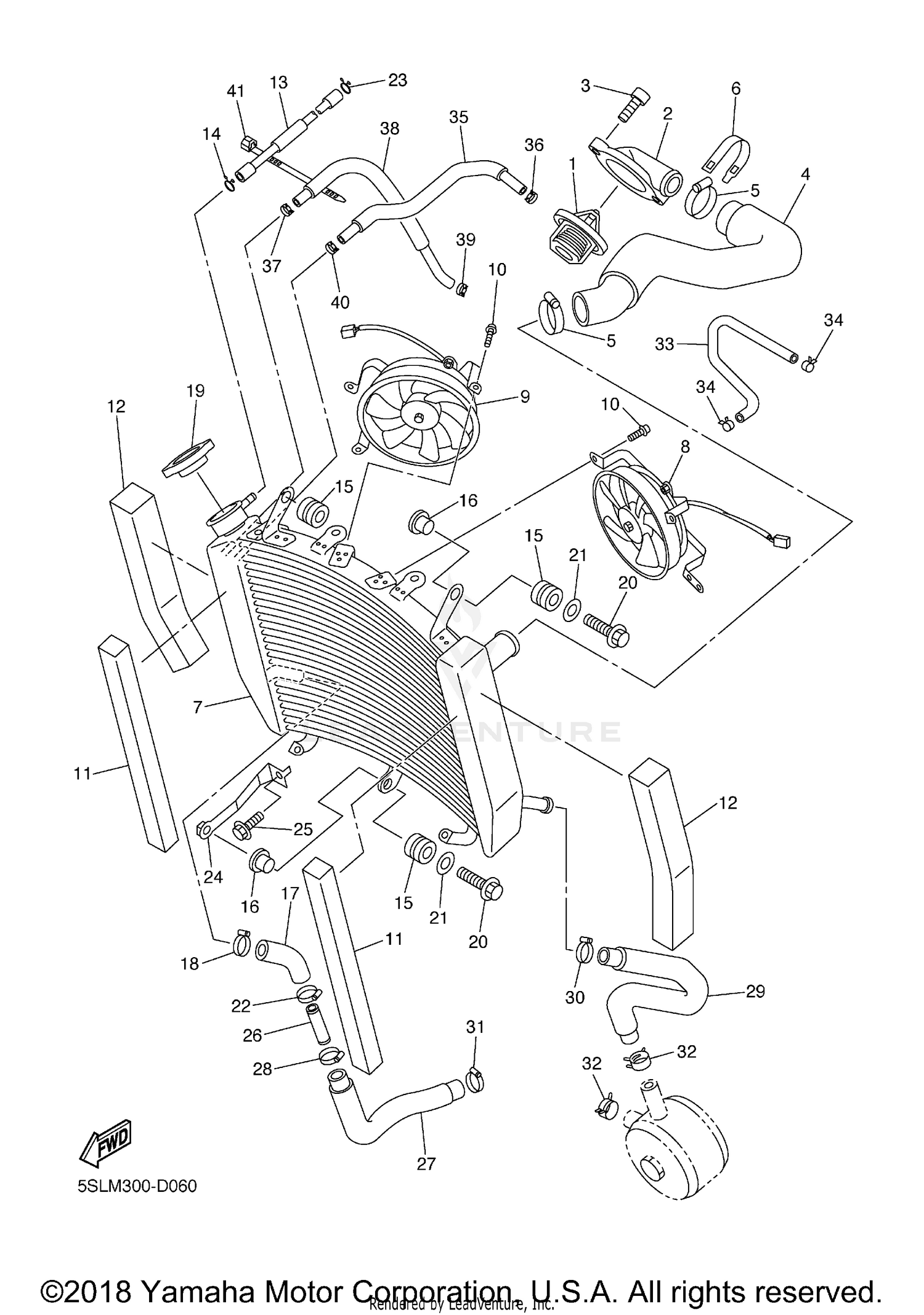

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
5SL-12410-00-00
Superseded by 5SL-12410-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, THERMOSTAT
5EB-12413-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOSE 3
5SL-12578-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER 2
5GV-1246E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RADIATOR ASSY
5SL-12461-10-00
|
$372.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLOWER ASSY
5SL-12405-10-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLOWER ASSY
5SL-12405-20-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BLOWER HOLDING
5GJ-12675-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, AIR SHROUD 2
5SL-12659-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, AIR SHROUD 3
5EB-12668-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-08016-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR
90387-07391-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 4
5SL-12579-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
BRACKET 1
5SL-1244E-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
JOINT, HOSE 2
5SL-12582-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE 7
5SL-12551-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
HOSE 6
5SL-12589-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-200A0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE 1
5SL-1243A-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE 2
5SL-1243E-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
HOSE, 4
5SL-1244G-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
CLAMP
90464-28002-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
