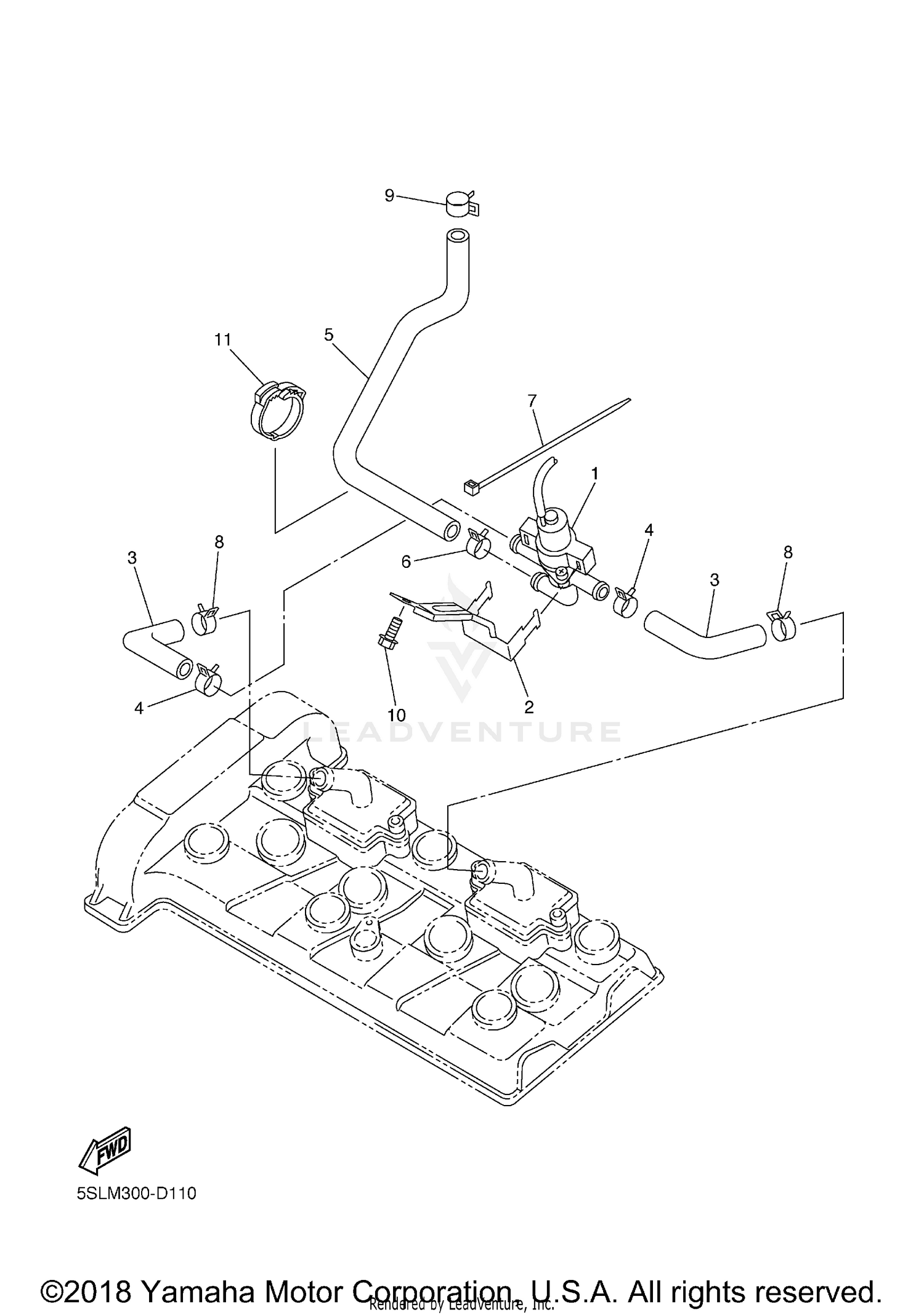

2005 Yamaha YZF R6 AIR INDUCTION SYSTEM OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 AIR CUT VALVE ASSY
5SL-14840-00-00
$209.99
Available: Ships in 7-12 days.
Add to View Price
#2 STAY
5SL-14834-10-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#3 HOSE, BEND 1
5SL-14881-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#4 CLIP
90467-18172-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#5 HOSE, BEND 2
5SL-14882-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#6 CLIP
90467-18172-00
$4.90
Unavailable
#7 CLAMP 1
5Y9-12491-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 CLIP
90467-180A0-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 CLIP
90467-17128-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#11 CLAMP
90464-28003-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
