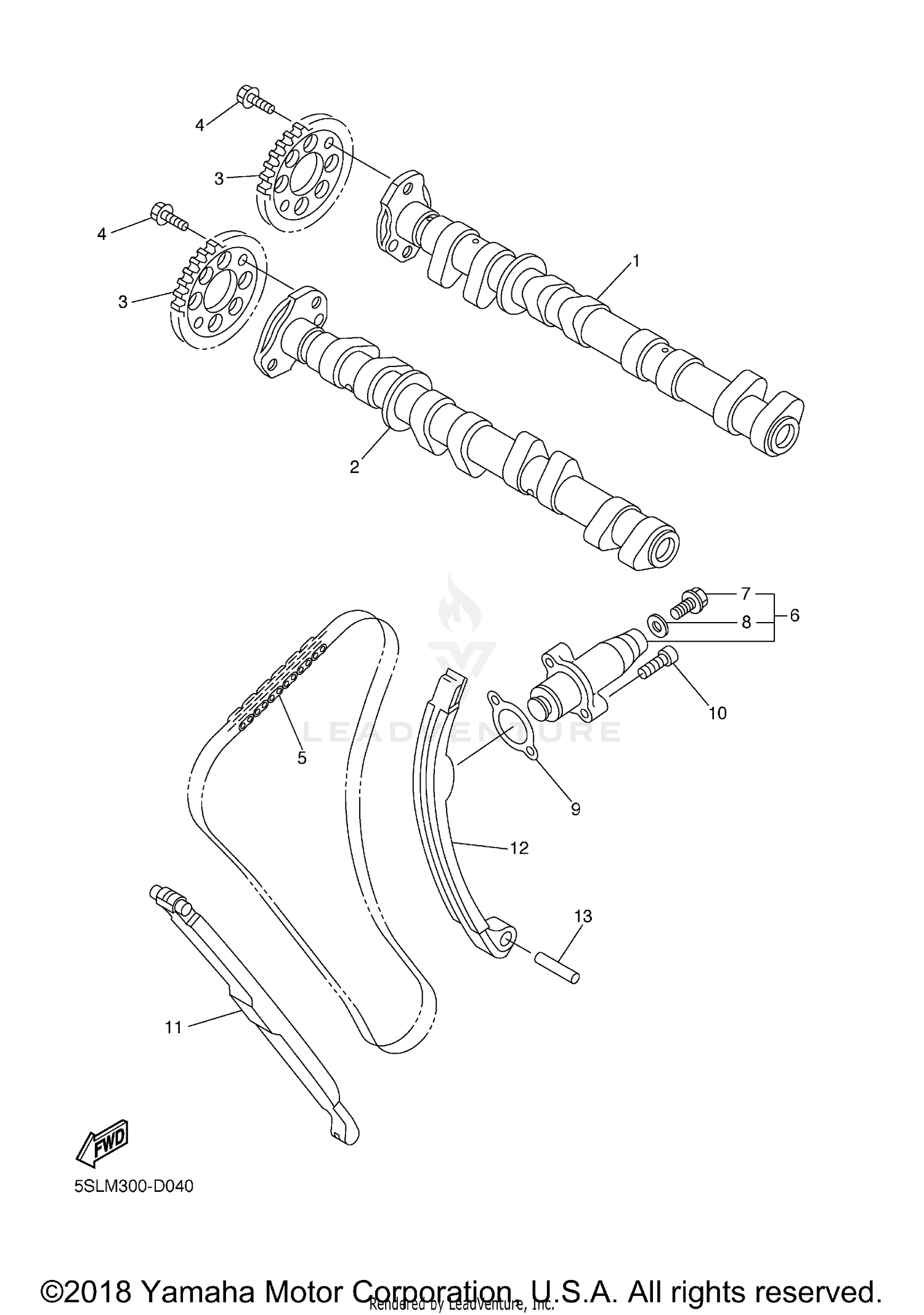

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
5SL-12170-00-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
5SL-12180-00-00
|
$313.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, CAM CHAIN
5EB-12176-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-07004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN
94591-49120-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER ASSY.
5SL-12210-10-00
Superseded by 5SL-12210-11-00
|
$233.99 | ||
|
Unavailable |
|||
|
#7
BOLT
5EL-12228-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
5SL-12214-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
DAMPER, CHAIN 1
5EB-12251-00-00
Superseded by 5EB-12251-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, CHAIN 2
5EB-12252-10-00
Superseded by 5EB-12252-11-00
|
$84.99 | ||
|
Unavailable |
|||
|
#13
PIN, DOWEL
93607-44190-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
