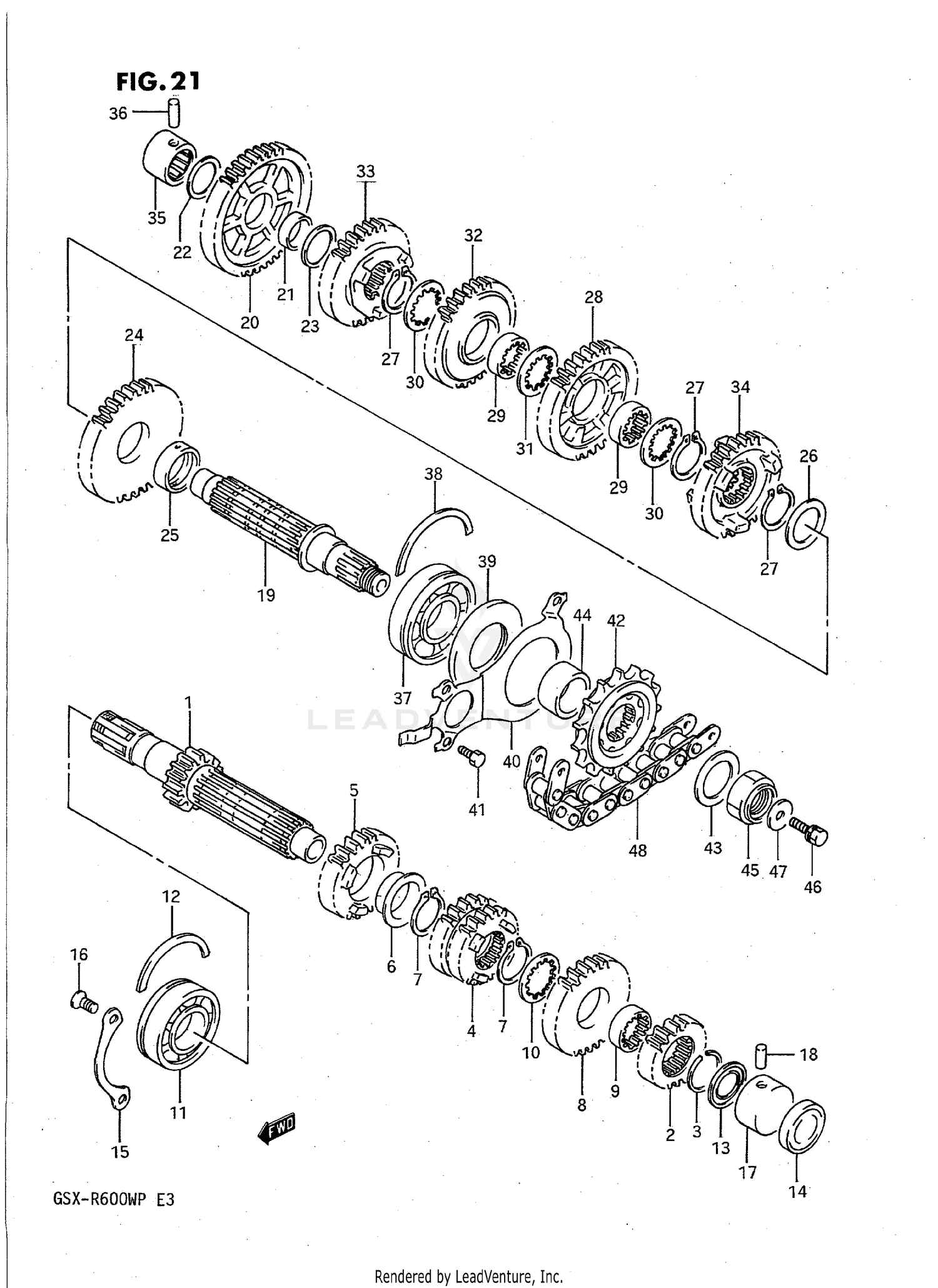

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:15)
24121-17E01
Superseded by 24120-17E20
|
$203.82 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:17)
24221-17E00
|
$78.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 3/4TH DRIVE (NT:20/21)
24231-17E00
|
$140.08 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
24251-17E01
Superseded by 24251-17E11
|
$176.29 | ||
|
Unavailable |
|||
|
#6
BUSH
09301-28001
|
$21.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
09380-27001
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
MAR. 6TH DRIVE (NT:25)
24261-17E01
Superseded by 24261-17E10
|
$168.27 | ||
|
Unavailable |
|||
|
#9
BUSH, 3RD DRIVEN
24262-17E00
Superseded by 24262-17E01
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09167-27001
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
C RING
09390-62006
Superseded by 09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CAP, COUNTER SHAFT
23116-27A30
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, BEARING
24741-27A00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
.BEARING (20X34X17.5)
09263-20069
|
$56.65 | ||
|
Unavailable |
|||
|
#18
PIN
04221-07129
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, DRIVE
24131-17E01
Superseded by 24131-17E10
|
$186.73 | ||
|
Unavailable |
|||
|
#20
GEAR, 1ST DRIVEN (NT:43)
24311-17E01
|
$119.26 | ||
|
Unavailable |
|||
|
#21
BUSH
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, RH
08211-20341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LH
08211-22341
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR,2ND DRIVEN
24321-17E02-0A0
Superseded by 24321-17E02
|
$106.12 | ||
|
Unavailable |
|||
|
#25
BUSH
09300-28003-0A0
Superseded by 09300-28003
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
.SHIM (28X38X1)
08211-28381
Superseded by 09181-28195
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
09380-27001
|
$2.59 | ||
|
Unavailable |
|||
|
#28
GEAR, 3RD DRIVEN (NT:33)
24331-17E02
|
$155.81 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH
24332-17E02
|
$27.32 | ||
|
Unavailable |
|||
|
#30
WASHER
09167-27001
|
$4.65 | ||
|
Unavailable |
|||
|
#31
WASHER
09167-27002
|
$4.32 | ||
|
Unavailable |
|||
|
#32
NO DESCRIPTION AVAILABLE
24341-17E02
Superseded by 24341-17E04
|
$141.48 | ||
|
Unavailable |
|||
|
#33
GEAR, 5TH DRIVEN (NT:29)
24351-17E02
|
$103.31 | ||
|
Unavailable |
|||
|
#34
GEAR, 6TH DRIVEN (NT:28)
24361-17E10
|
$114.92 | ||
|
Unavailable |
|||
|
#35
BEARING (20X34X20)
09263-20040
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN (L:20)
04221-07209
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, LH
09262-28025
|
$163.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
C RING (67.6X75X2)
09390-70001
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (36X70X6)
09283-36008
|
$26.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLATE
24751-17E00
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
01107-06107
Superseded by 01500-06107
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPROCKET, ENGINE (NT:14)
27511-27A11
Superseded by 27510-21E00
|
$64.89 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER (25X40X1.5)
08211-25402
Superseded by 09181-25268
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPACER (25X36X17.7)
09180-25098
|
$19.91 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
01147-06168
Superseded by 01570-06167
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER
08212-06222
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#48
CHAIN ASSY (RK50GSVZ3,108L)
27600-17C20-108
Superseded by 27600-24F20-108
|
$267.62 | ||
|
Available to order. Add to View Price |
|||
