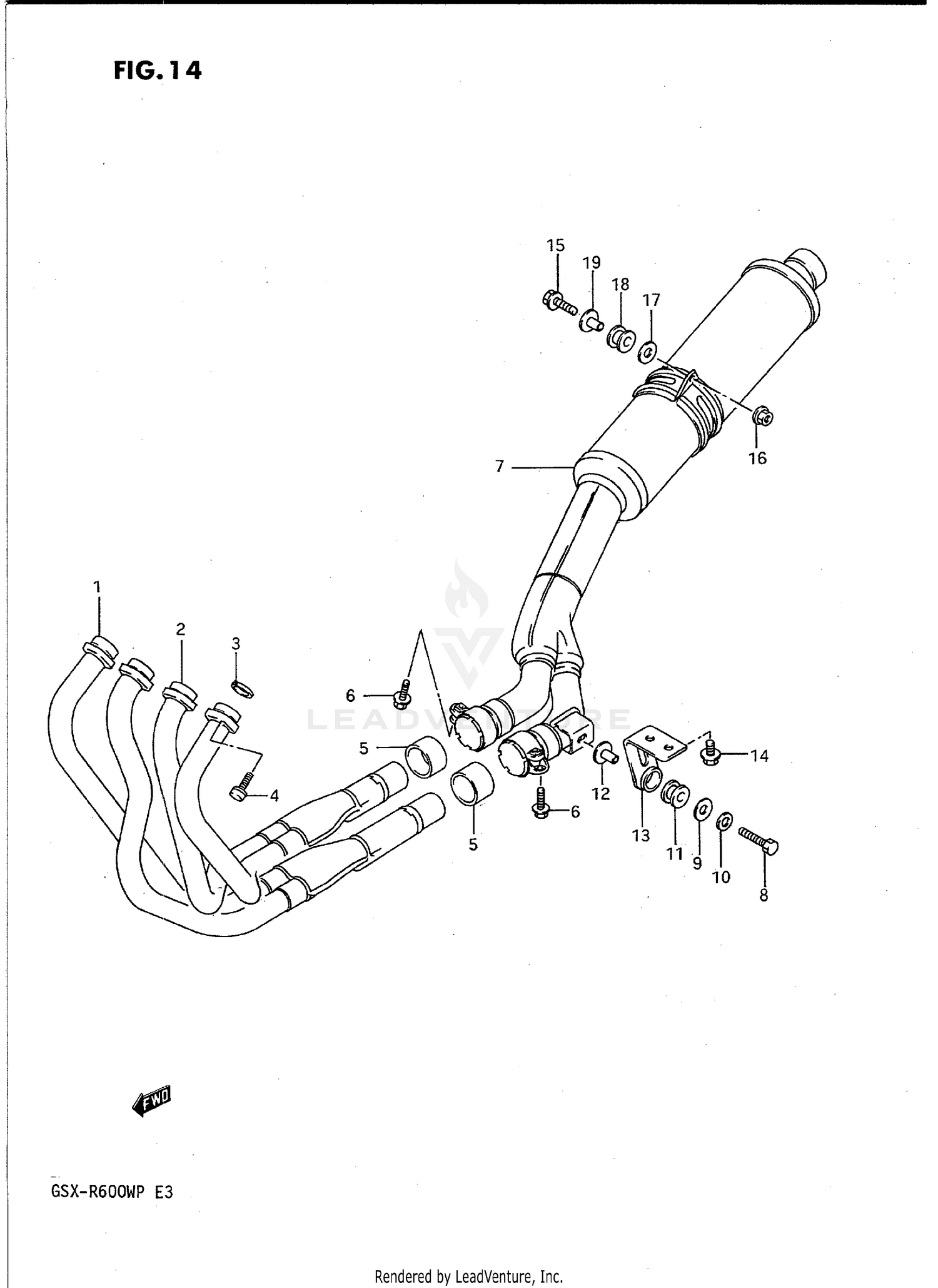

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST RH
14150-18E00
|
$360.95 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST LH
14160-18E00
|
$360.93 | ||
|
Unavailable |
|||
|
#3
GASKET, EXHAUST PIPE
14181-17E00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07110-08255
Superseded by 07130-0825B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR, MUFFLER
14771-44B00
|
$27.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01517-08407
Superseded by 01550-08407
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY, MUFFLER
14305-17E32-H01
Superseded by 14305-17E14-H01
|
$1,080.17 | ||
|
Unavailable |
|||
|
#8
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (8X40)
09118-08138
Superseded by 09118-08145
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CUSHION
09320-12048
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
14770-17E02
Superseded by 14770-17E03
|
$19.38 | ||
|
Unavailable |
|||
|
#13
DAMPER
14770-17E03
|
$19.38 | ||
|
Unavailable |
|||
|
#14
BOLT (8X20)
01517-08205
Superseded by 01550-0820A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, MUF SPRT,RR
01517-08457
Superseded by 01550-08457
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08361-25088
Superseded by 08361-2508A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (8.5X33X1.5)
09160-08106
Superseded by 09160-08146
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION
09320-12049
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
09180-08156
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
