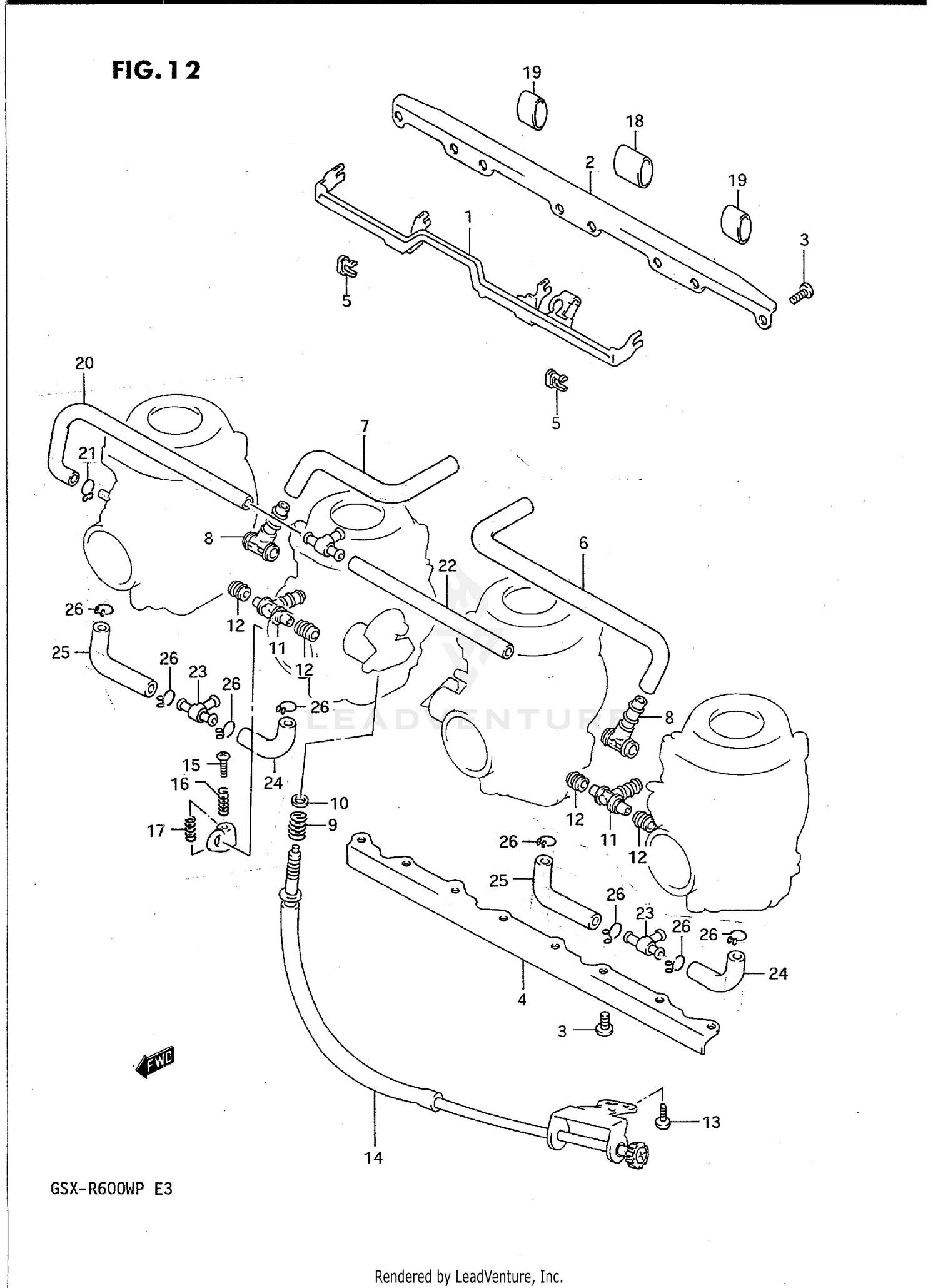

Carburetor Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER, STARTER
13413-17E00
|
$31.82 | ||
|
Unavailable |
|||
|
#2
PLATE
13628-17E10
|
$22.55 | ||
|
Unavailable |
|||
|
#3
SCREW
13602-05128
Superseded by 02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
NO DESCRIPTION AVAILABLE
13628-17E00
Superseded by 13620-17EV0
|
$49.31 | ||
|
Unavailable |
|||
|
#5
HOLDER
13439-17C00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE
13684-17E00
|
$44.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE
13684-17E10
|
$42.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13684-20C10
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
13268-43410
Superseded by 13375-14D10
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
13427-38300
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
NIPPLE
13685-44B00
|
$15.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
13673-44B00
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
13602-05108
Superseded by 02112-05107
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
ADJUSTER ASSY
13279-17E00
|
$57.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
13267-44B00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
13271-44B00
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
13268-17C10
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE
13684-17C00
Superseded by 13684-43440
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE
13684-17C10
Superseded by 13684-43440
|
$6.36 | ||
|
Unavailable |
|||
|
#20
HOSE
13684-18E00
Superseded by 13684-20C00
|
$36.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
13684-20C30
Superseded by 13684-20C00
|
$36.58 | ||
|
Unavailable |
|||
|
#21
.CLIP
13671-05A30
Superseded by 09401-08410
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (5X9X600)
13683-48B10
Superseded by 09352-50901-600
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
NIPPLE
13685-48B00
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE
13684-48B00
Superseded by 13684-48B11
|
$20.61 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE
13684-18E10
Superseded by 13684-48B11
|
$20.61 | ||
|
Unavailable |
|||
|
#26
CLIP
13671-48B10
Superseded by 09401-10401
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
