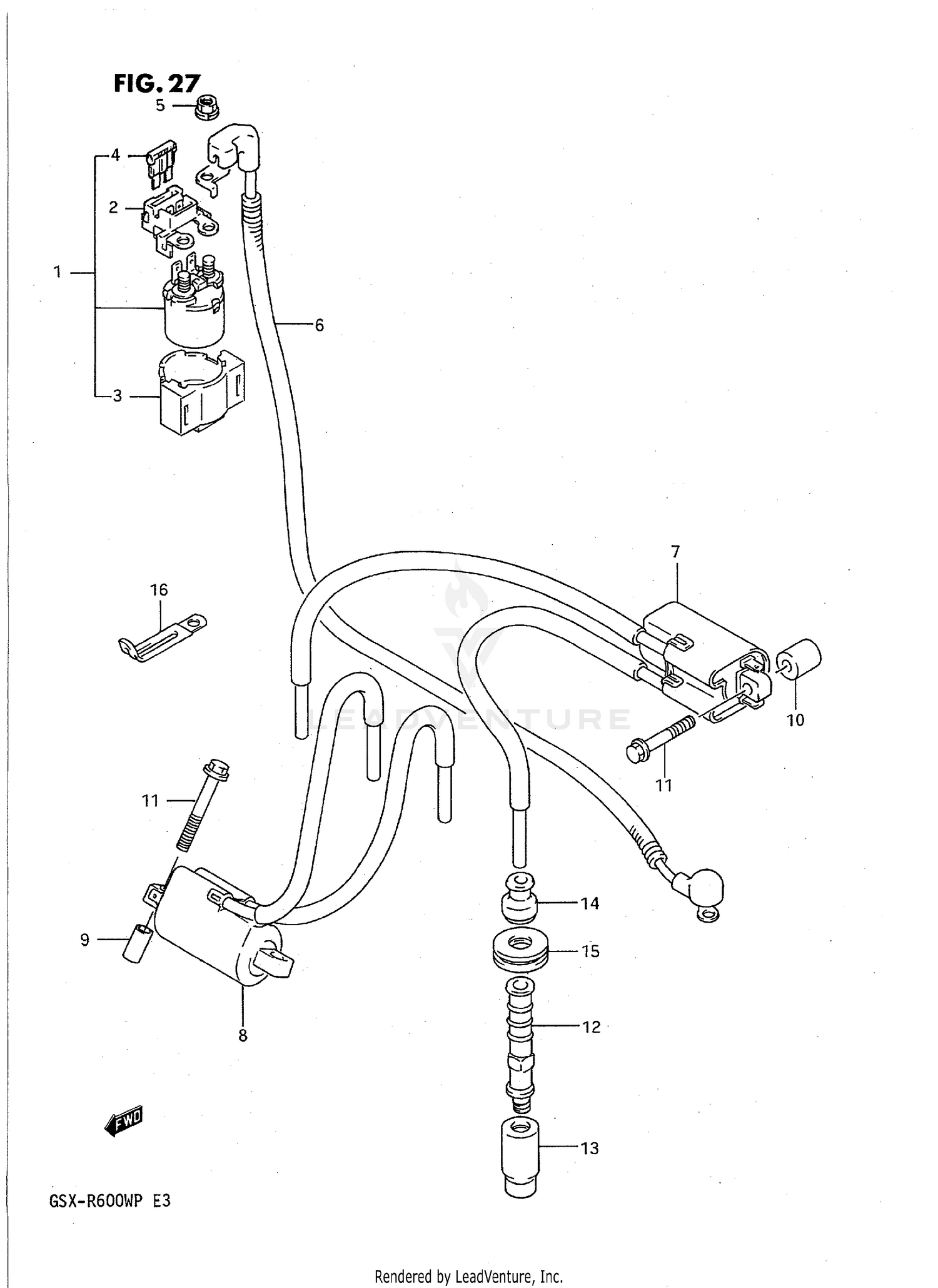

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY, STARTING MOTOR
31800-07D00
|
$110.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL
31841-07D00
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER
31892-07D00
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE (30A)
09481-30201
|
$3.25 | ||
|
Unavailable |
|||
|
#5
NUT
08361-35066
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEAD WIRE, STARTING MOTOR
33810-17E00
Superseded by 33810-46E01
|
$40.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL, IGNITION NO.1
33410-17E00
|
$160.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL, IGNITION NO.2
33420-17E00
|
$147.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
09180-06072
Superseded by 09180-06271
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPACER, IGNITION COIL 2-3
33419-17E00
|
$4.50 | ||
|
Unavailable |
|||
|
#11
BOLT
01517-06408
Superseded by 01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, SPARK PLUG
33510-17E00
|
$39.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, PLUG
33541-20C00
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER
33543-17E00
Superseded by 33543-17E01
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
09404-06402
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
