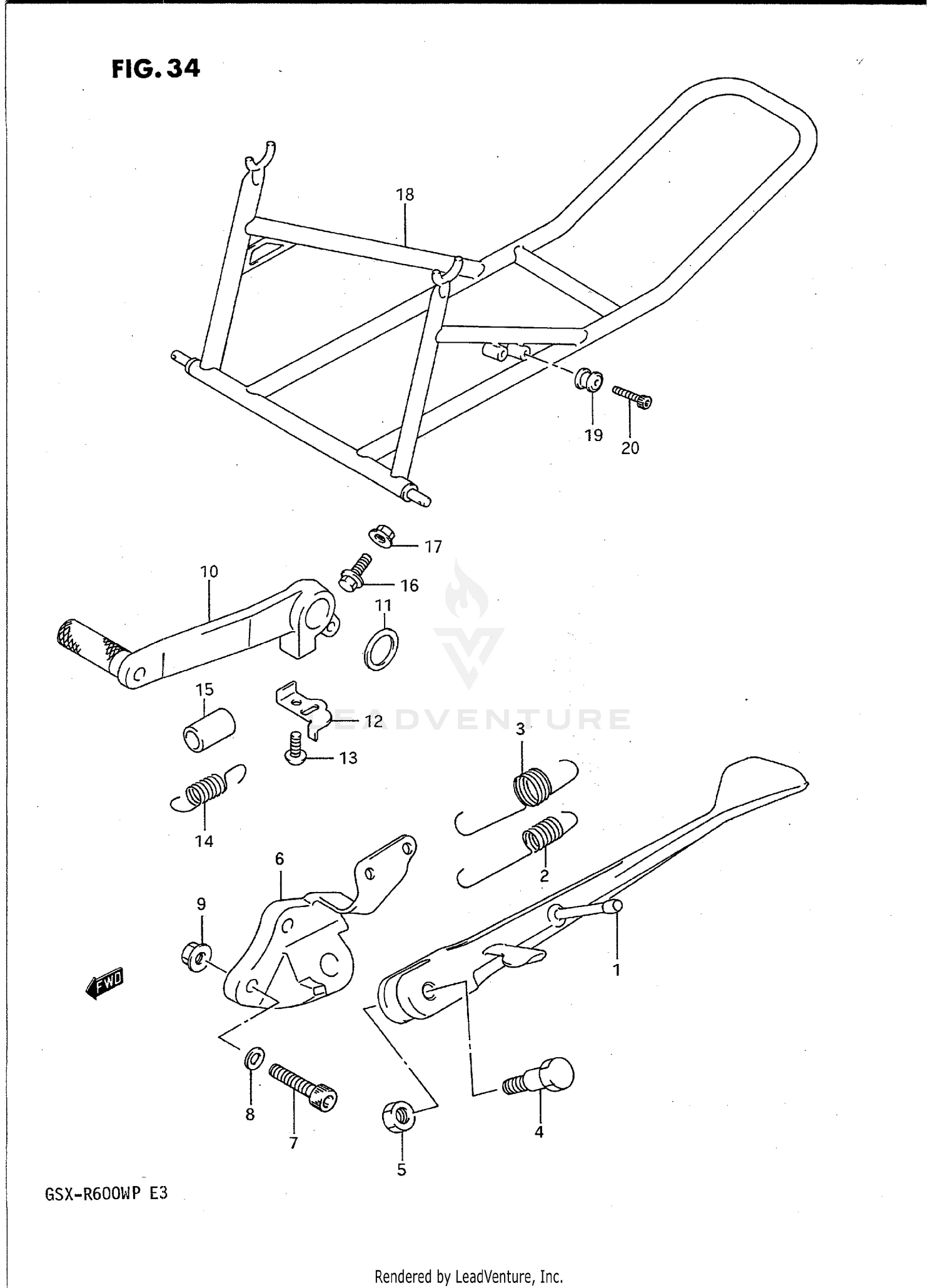

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-17E00
|
$157.12 | ||
|
Unavailable |
|||
|
#2
SPRING, INNER
09443-14058
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, OUTER
09443-19011
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
09111-10036
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08310-22107
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, PROP STAND
42330-17E00
|
$106.50 | ||
|
Unavailable |
|||
|
#7
BOLT
07110-08358
Superseded by 07130-08357
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT (CHROME)
08316-16088
Superseded by 08316-10087
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PEDAL, BRAKE
43110-17E00
|
$125.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
09160-18022
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOOK, RETURN
43563-17E00
|
$8.99 | ||
|
Unavailable |
|||
|
#13
BOLT
09139-06027
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09443-13018
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, SPRING
43261-17C00
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT
01104-05206
Superseded by 01500-0520B
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08310-11057
Superseded by 08310-00057
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
NO DESCRIPTION AVAILABLE
42100-17C00
Superseded by 99950-70043-RAC
|
$174.95 | ||
|
Unavailable |
|||
|
#19
HOLDER, STAND
61165-27A30
|
$21.83 | ||
|
Unavailable |
|||
|
#20
BOLT, STEERING DAMPER
07110-08305
Superseded by 07130-0830A
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
