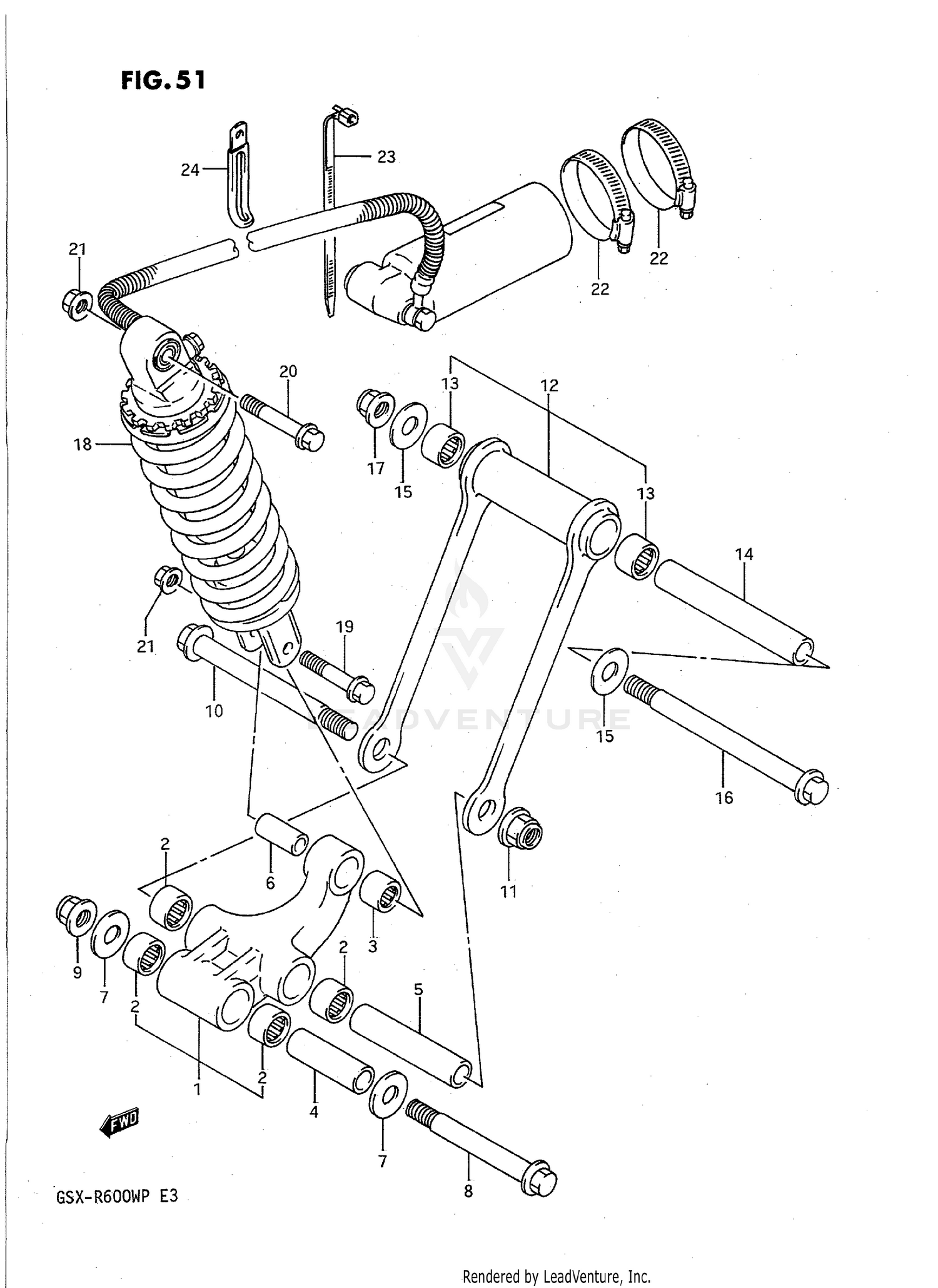

Rear Cushion Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-40830
|
$204.16 | ||
|
Unavailable |
|||
|
#2
BEARING
09263-20071
|
$32.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (17X24X26)
09263-17034
Superseded by 09263-17057
|
$26.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, FRONT
62317-17C00
|
$31.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, CENTER
62317-40C10
|
$28.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REAR
62684-40A10
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, FRONT
08211-14323
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FRONT
62621-17C00
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08319-31148
Superseded by 08319-3114A
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, CENTER
62658-40C10
|
$22.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08319-31148
Superseded by 08319-3114A
|
$12.36 | ||
|
Unavailable |
|||
|
#12
ROD SET, REAR CUSHION LEVER
62600-17840
|
$231.10 | ||
|
Unavailable |
|||
|
#13
BEARING
09263-20071
|
$32.97 | ||
|
Unavailable |
|||
|
#14
SPACER, ROD
09180-14022
|
$23.62 | ||
|
Unavailable |
|||
|
#15
WASHER, ROD
08211-14321
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, ROD
09103-14019
|
$16.49 | ||
|
Unavailable |
|||
|
#17
NUT
08319-31148
Superseded by 08319-3114A
|
$12.36 | ||
|
Unavailable |
|||
|
#18
NO DESCRIPTION AVAILABLE
62100-18E00
Superseded by 62100-17E00
|
$1,502.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, LOWER
09103-10027
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, UPPER
09103-10032
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08319-31107
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
.CLAMP
09402-57501
Superseded by 09402-57511
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLAMP
09404-08402
Superseded by 09404-08420
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
