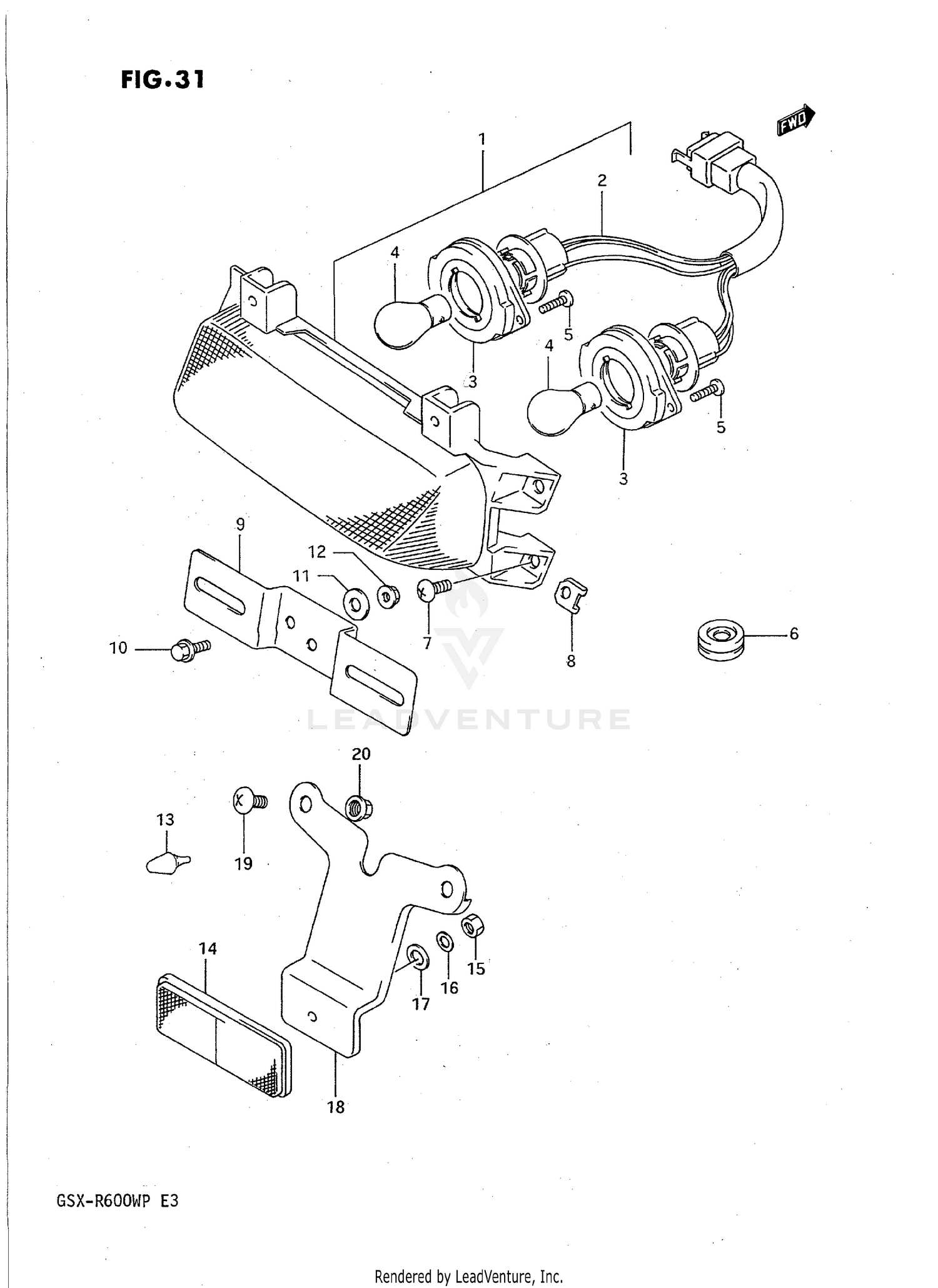

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-17E30
|
$144.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
SOCKET & CORD
35718-17E00
|
$82.51 | ||
|
Unavailable |
|||
|
#3
CUSHION
35765-48B21
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,21/5W)
09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
03211-04126
Superseded by 03211-0412A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
09308-07013
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW
02142-05124
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09148-05023
Superseded by 09148-05021
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, LICENSE PLATE
35927-17E30
Superseded by 35927-00A10
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-06164
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.6)
09160-06059
Superseded by 09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08316-26066
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CUSHION
09321-06026
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
REFLECTOR, REAR
35970-00A21
Superseded by 35970-00A10
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
.NUT
08310-22055
Superseded by 09140-05006
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
.NUT
08310-11056
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK WASHER
08321-21055
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
08322-21055
Superseded by 08322-0105A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BRACKET, REAR REFLECTOR
35974-18D00
|
$6.68 | ||
|
Unavailable |
|||
|
#19
SCREW
02142-06125
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08316-26065
Superseded by 08316-2006A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
