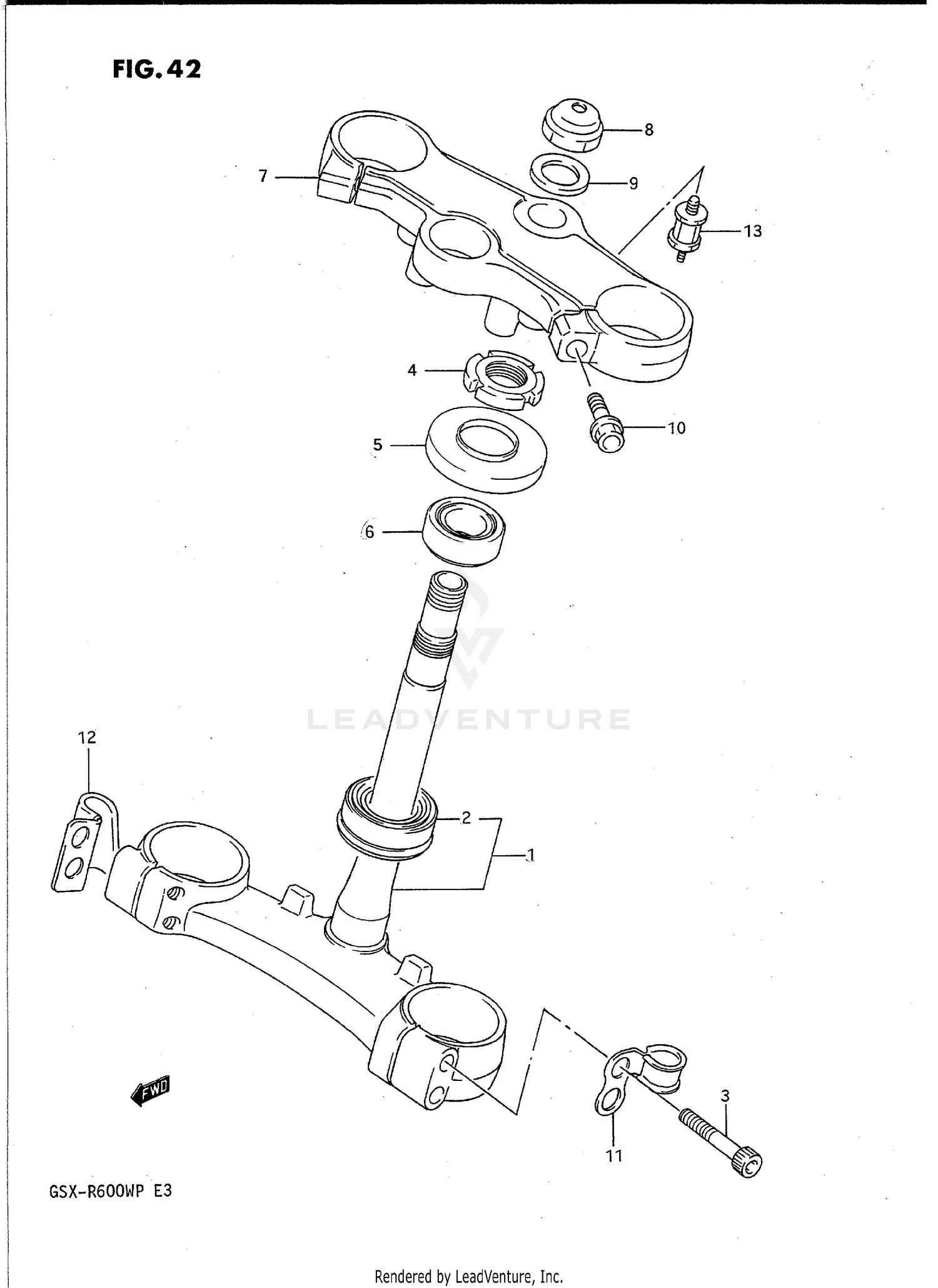

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM, STEERING
51410-17E00
|
$573.16 | ||
|
Unavailable |
|||
|
#2
RT 30X55X17 BEA
09265-30009
Superseded by 09265-30034
|
$72.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,10X45
09106-10022
Superseded by 09106-10022-XC0
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,STEERING STEM (25X44X10)
51631-28000
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL
09285-34006
Superseded by 09285-34013
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
09265-25008
|
$28.88 | ||
|
Unavailable |
|||
|
#7
BRACKET, UPPER
51311-17E00
|
$321.01 | ||
|
Unavailable |
|||
|
#8
NUT
51353-17C00
Superseded by 51353-28A10
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, STEM
51354-17C00
Superseded by 51356-24B01
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (10X40)
01517-10408
Superseded by 01550-10407
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, METER CABLE
34938-17E10
|
$8.89 | ||
|
Unavailable |
|||
|
#12
CLAMP, CLUTCH CABLE
58285-17C00
|
$1.97 | ||
|
Unavailable |
|||
|
#13
CUSHION, METER
17788-10D00
|
$9.78 | ||
|
Unavailable |
|||
