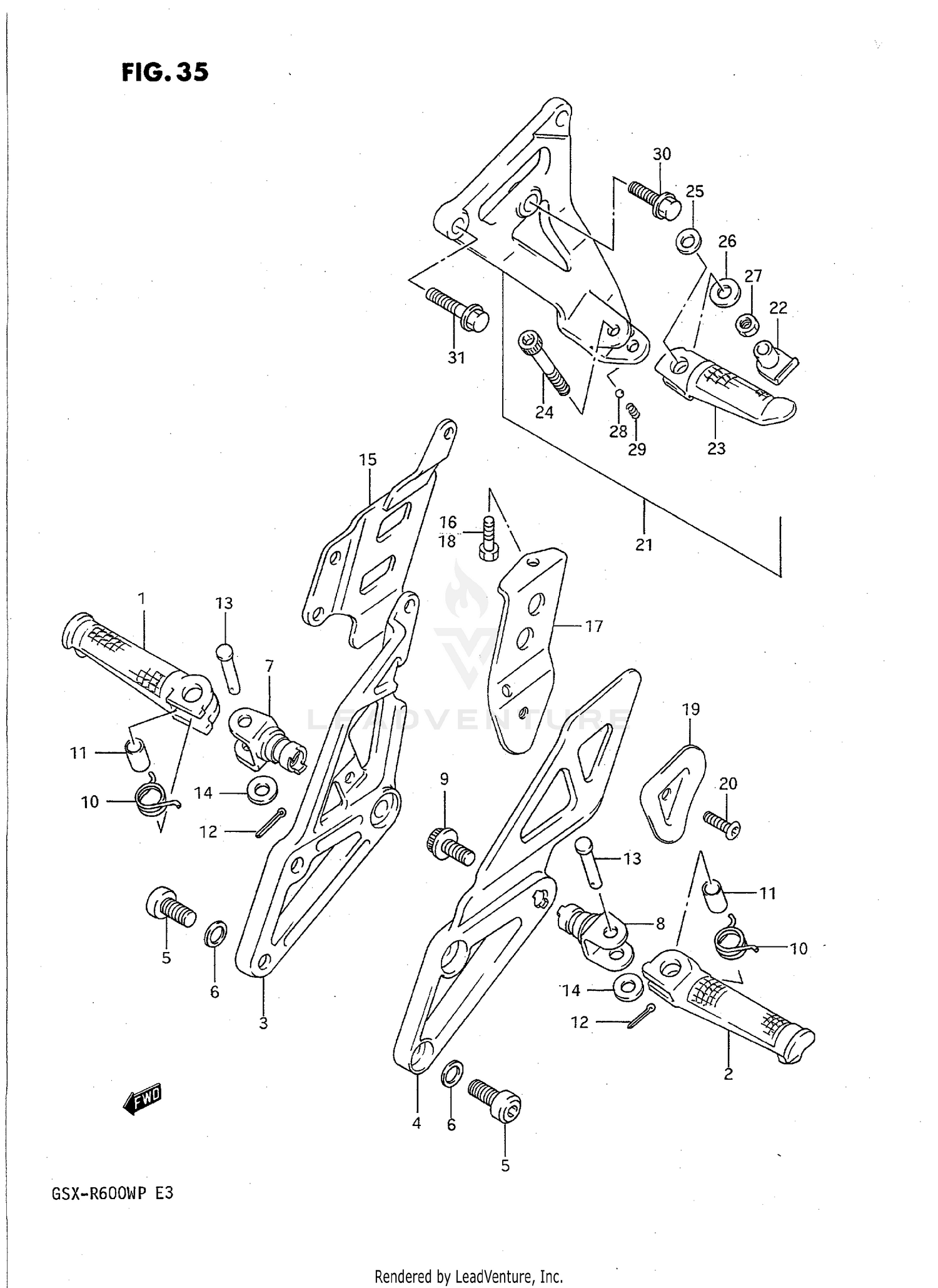

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRONT FOOTREST RH
43511-17C02
|
$58.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, FRONT FOOTREST LH
43521-17C02
|
$64.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST RH
43511-17E00
Superseded by 43511-17E01
|
$158.62 | ||
|
Unavailable |
|||
|
#4
BRACKET, FOOTREST LH
43522-17E00
Superseded by 43522-17E02
|
$155.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
43529-17E00
Superseded by 07130-1020B
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09164-10010
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, FOOTREST RH
43530-17E00
Superseded by 43530-17E01
|
$63.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, FRONT FOOTREST,LH
43540-17E00
|
$60.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FOOTREST HOLDER
09106-10052
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09448-19020
Superseded by 09448-18022
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, FRONT FOOTREST
09180-08149
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
04111-25158
Superseded by 04111-2515A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
09200-08057
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (8.5X18X1)
09160-08043
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FOOTREST RH
43570-17E00
|
$74.13 | ||
|
Unavailable |
|||
|
#15
GUARD, FOOTREST RH
43571-46E00
Superseded by 43570-17E00
|
$74.13 | ||
|
Unavailable |
|||
|
#16
BOLT
01174-06256
Superseded by 01580-06253
|
$1.22 | ||
|
Unavailable |
|||
|
#17
REINFORCEMENT, FOOTREST LH
43531-17E01
|
$35.89 | ||
|
Unavailable |
|||
|
#18
BOLT
01174-06256
Superseded by 01580-06253
|
$1.22 | ||
|
Unavailable |
|||
|
#19
PLATE, LH
43532-17E00
|
$10.65 | ||
|
Unavailable |
|||
|
#20
BOLT
09139-06027
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST ASSY, PILLION RH
43600-17E00
|
$190.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST ASSY, PILLION LH
43700-17E00
|
$190.20 | ||
|
Unavailable |
|||
|
#22
BOSS, PILLION FOOTREST RH
43590-17E00
|
$13.38 | ||
|
Unavailable |
|||
|
#22
BOSS, PILLION FOOTREST LH
43580-17E00
|
$13.38 | ||
|
Unavailable |
|||
|
#23
BAR, RH
43611-32C00
|
$61.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR, LH
43621-32C00
|
$51.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
07110-08508
Superseded by 07130-0850A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (8.5X18X1)
09160-08043
|
$2.12 | ||
|
Unavailable |
|||
|
#26
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT
08319-21088
Superseded by 08319-2108A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING
09440-05003
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, REAR LH
01517-08207
Superseded by 01550-08207
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
01517-08307
Superseded by 01550-08307
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
