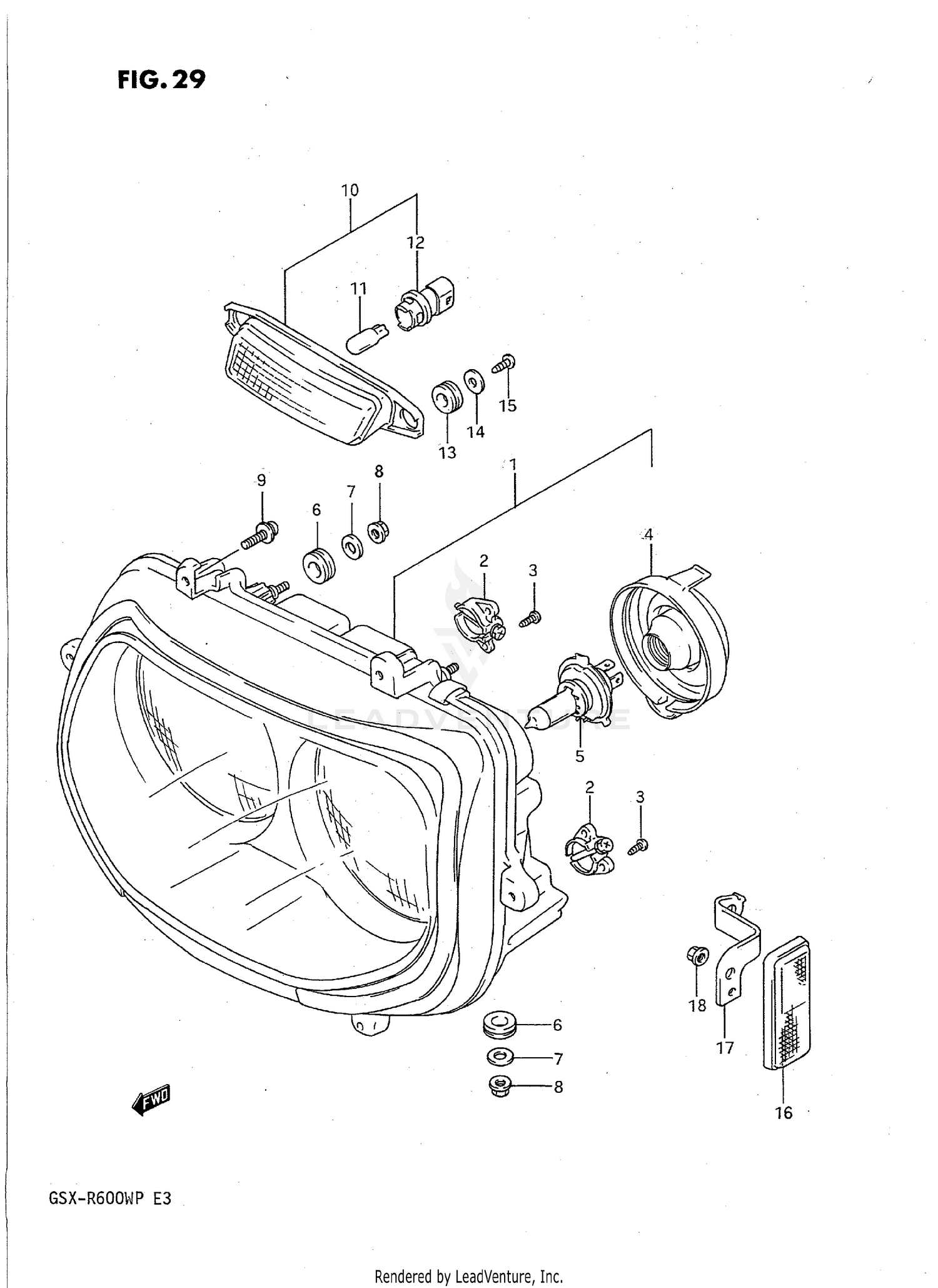

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-17E00-999
|
$571.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR UNIT ASSY
35250-33C10
|
$8.26 | ||
|
Unavailable |
|||
|
#3
SCREW
03511-04165
Superseded by 03511-0416A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
35173-41C00
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-09034
Superseded by 09320-09063
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (6.5X15X1.6)
09160-06092
Superseded by 09160-06128
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08310-11065
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02112-75165
Superseded by 02112-7516A
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
LAMP ASSY, FRONT POSITION
36110-17E00
|
$44.74 | ||
|
Unavailable |
|||
|
#11
.BULB (12V5W)
09471-12081
Superseded by 09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOCKET
36118-41C00
|
$11.32 | ||
|
Unavailable |
|||
|
#13
.CUSHION (8.4X18X6)
09320-08051
Superseded by 09320-08066
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (4.5X16X1.2)
09160-04014
Superseded by 09160-04026
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
03541-04105
Superseded by 03541-0410A
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLECTOR, FRONT SIDE
35950-43431
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, RH
35956-17D00
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, LH
35957-17D00
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08361-15055
Superseded by 08361-1505B
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
.NUT
08310-11056
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
