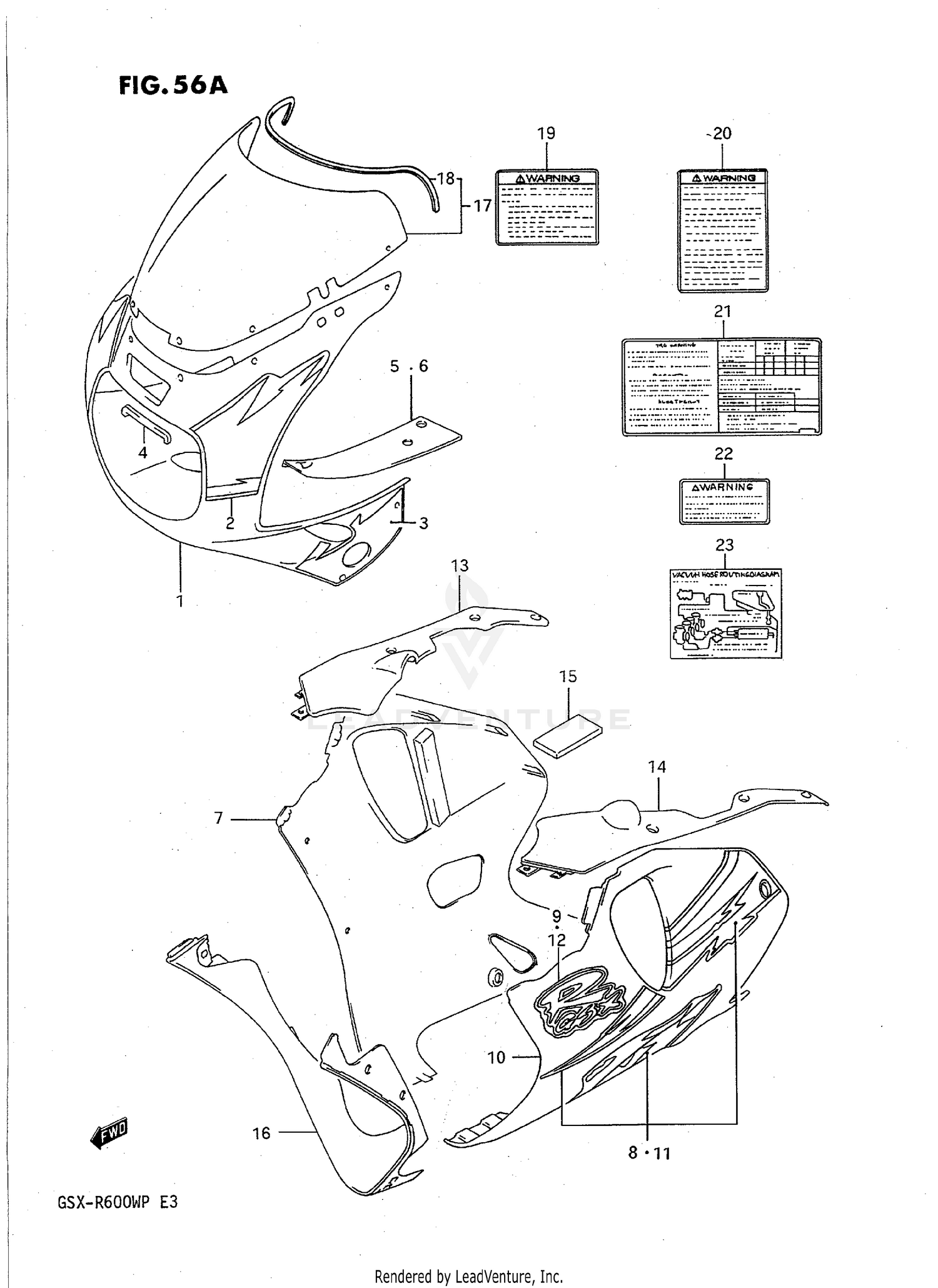

Cowling Body (model P 1jx Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWLING ASSY, BODY (WHITE)
94400-17E30-0YX
|
$531.46 | ||
|
Unavailable |
|||
|
#1
COWLING ASSY, BODY (WHITE)
94400-17E30-33J
|
$557.86 | ||
|
Unavailable |
|||
|
#2
TAPE SET, FRONT
68270-17E20-A8E
|
$78.30 | ||
|
Unavailable |
|||
|
#2
TAPE SET, FRONT
68270-17E20-A8F
|
$78.30 | ||
|
Unavailable |
|||
|
#3
TAPE SET, SIDE
68280-17E11-1MW
|
$38.31 | ||
|
Unavailable |
|||
|
#3
TAPE SET, SIDE
68280-17E11-1LE
|
$56.37 | ||
|
Unavailable |
|||
|
#4
CUSHION, FRONT POSITION LAMP
94418-17E00
|
$3.98 | ||
|
Unavailable |
|||
|
#5
PANEL, UPPER, RH
94415-17E00
|
$53.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL, UPPER, LH
94425-17E00
|
$55.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWLING ASSY, UNDER RH
94407-18E20-1MW
|
$424.55 | ||
|
Unavailable |
|||
|
#7
COWLING ASSY, UNDER RH
94407-18E20-1LE
|
$407.79 | ||
|
Unavailable |
|||
|
#8
TAPE SET, UNDER RH
68180-18E10-A8E
|
$75.97 | ||
|
Unavailable |
|||
|
#8
TAPE SET, UNDER RH
68180-18E10-A8F
|
$75.98 | ||
|
Unavailable |
|||
|
#9
EMBLEM
68181-17E00-A8G
|
$35.81 | ||
|
Unavailable |
|||
|
#9
EMBLEM
68181-17E00-A8H
|
$39.42 | ||
|
Unavailable |
|||
|
#10
COWLING ASSY, UNDER, LH
94408-18E20-1MW
|
$520.73 | ||
|
Unavailable |
|||
|
#10
COWLING ASSY, UNDER LH
94408-18E20-1LE
|
$416.19 | ||
|
Unavailable |
|||
|
#11
TAPE SET, UNDER LH
68190-18E10-A8E
|
$86.07 | ||
|
Unavailable |
|||
|
#11
TAPE SET, UNDER LH
68190-18E10-A8F
|
$86.07 | ||
|
Unavailable |
|||
|
#12
EMBLEM
68181-17E00-A8G
|
$35.81 | ||
|
Unavailable |
|||
|
#12
EMBLEM
68181-17E00-A8H
|
$39.42 | ||
|
Unavailable |
|||
|
#13
PANEL, LOWER RH
94416-17E00
|
$71.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
PANEL, LOWER LH
94426-17E00
|
$71.59 | ||
|
Unavailable |
|||
|
#15
CUSHION,TOOL HOLDER
69732-17C01
Superseded by 47451-38A01
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
COWLING, UNDER CENTER (BLACK)
94498-17E00-019
|
$148.94 | ||
|
Unavailable |
|||
|
#17
SCREEN SET, WIND
94610-17E00
|
$367.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
MOLDING
94631-19C30
Superseded by 94631-18D01
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL,GENERAL W
68319-40C00
Superseded by 68319-33E02
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL,SCREEN
68612-48B00
Superseded by 68922-14F01
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, TIIR AIR PRESSURE
68332-17E30
|
$6.19 | ||
|
Unavailable |
|||
|
#22
LABEL,WARNING S
68613-18E00
Superseded by 68613-18E01
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
LABEL, VACUUM HOSE ROUTING
68387-17E00
|
$4.33 | ||
|
Unavailable |
|||
