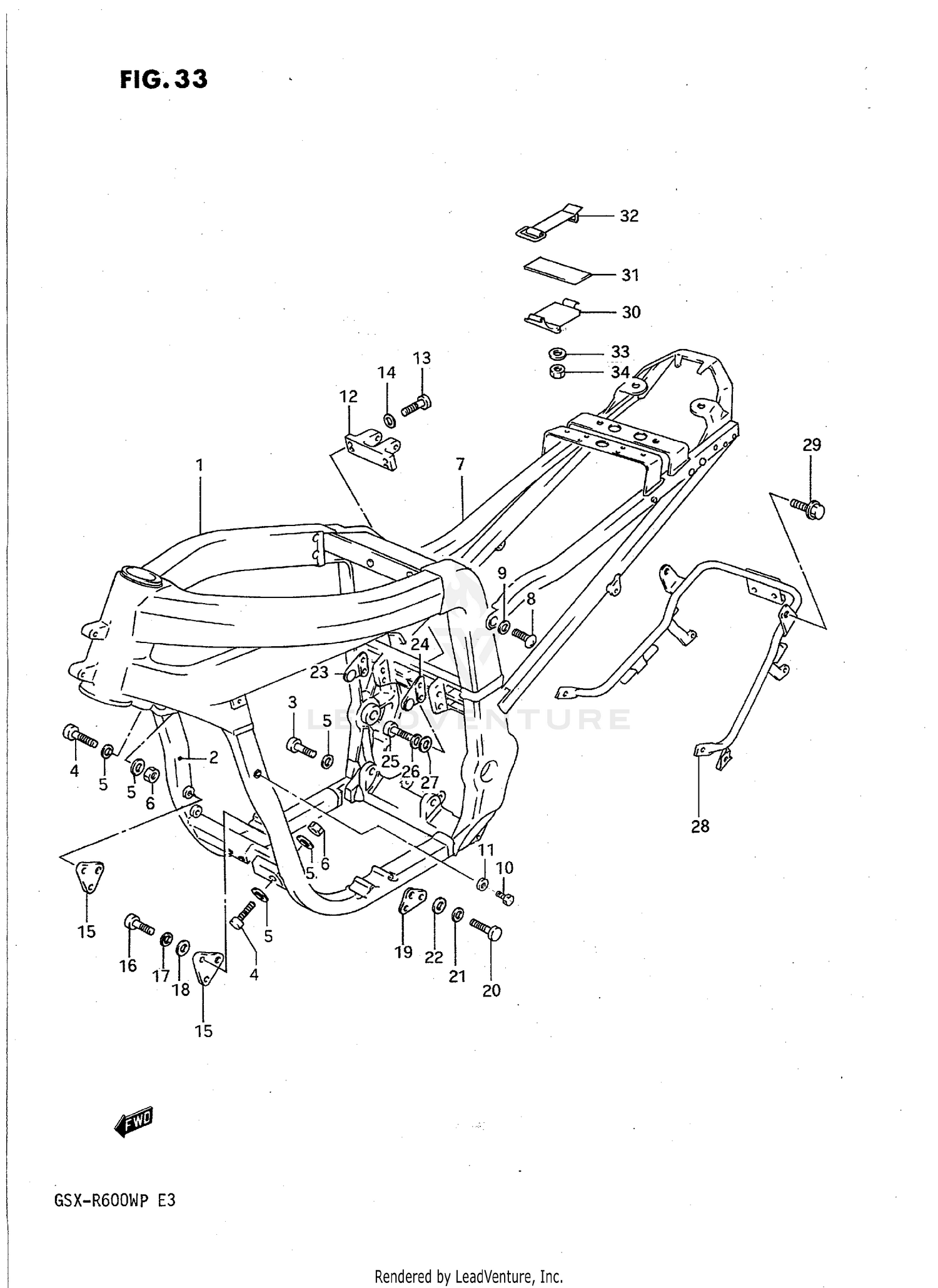

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SET
41101-17840
Superseded by 41101-17870
|
$3,087.92 | ||
|
Unavailable |
|||
|
#1
FRAME SET
41101-17850
|
$2,375.17 | ||
|
Unavailable |
|||
|
#2
TUBE, FRAME DOWN RH
41140-17E00
|
$296.67 | ||
|
Unavailable |
|||
|
#2
TUBE, FRAME DOWN RH
41140-17E10
|
$308.39 | ||
|
Unavailable |
|||
|
#3
BOLT, RH
01517-10308
Superseded by 01550-10307
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01927-10458
Superseded by 01550-1045B
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09160-10013
Superseded by 09160-10123
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
09159-10027
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
RAIL. SEAT
41200-17E00
Superseded by 41200-17E01
|
$1,539.00 | ||
|
Unavailable |
|||
|
#8
BOLT
43529-17D00
Superseded by 09139-10004
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09164-10010
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01107-06207
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET
09168-06001
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, REAR CUSHION UNIT
41762-17E00
|
$104.98 | ||
|
Unavailable |
|||
|
#13
BOLT, NO.1
09106-08056
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, ENGINE MOUNT NO.1
41911-17E00
|
$25.70 | ||
|
Unavailable |
|||
|
#16
BOLT
07110-08257
Superseded by 07130-08257
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
.WASHER
08321-31087
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER (8.5X20X1.6)
09160-08010
Superseded by 09160-08054
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, MOUNT NO.2 LH
41921-17E00
|
$8.52 | ||
|
Unavailable |
|||
|
#19
PLATE, MOUNT NO.2 RH
41931-17E00
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07110-08257
Superseded by 07130-08257
|
$4.38 | ||
|
Unavailable |
|||
|
#21
.WASHER
08321-31087
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#22
WASHER (8.5X20X1.6)
09160-08010
Superseded by 09160-08054
|
$1.78 | ||
|
Unavailable |
|||
|
#23
PLATE, ENGINE MOUNT NO.3 RH
41940-17E00
|
$17.40 | ||
|
Unavailable |
|||
|
#24
PLATE, ENGINE MOUNT NO.3 LH
41950-17E00
|
$17.40 | ||
|
Unavailable |
|||
|
#25
BOLT
09106-08005
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
.WASHER
08321-31087
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#27
WASHER (8.5X20X1.6)
09160-08010
Superseded by 09160-08054
|
$1.78 | ||
|
Unavailable |
|||
|
#28
GRIP, REAR
43980-17E10
Superseded by 43980-17E14
|
$135.27 | ||
|
Unavailable |
|||
|
#28
GRIP, REAR
43980-17E11
Superseded by 43980-17E14
|
$135.27 | ||
|
Unavailable |
|||
|
#29
BOLT, REAR LH
01517-08207
Superseded by 01550-08207
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, TOOL
41550-49200
Superseded by 41550-49201
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION
36920-02200
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND, TOOL
09462-00008
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
09160-06006
Superseded by 09160-06084
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#34
.NUT
08319-21066
Superseded by 08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
