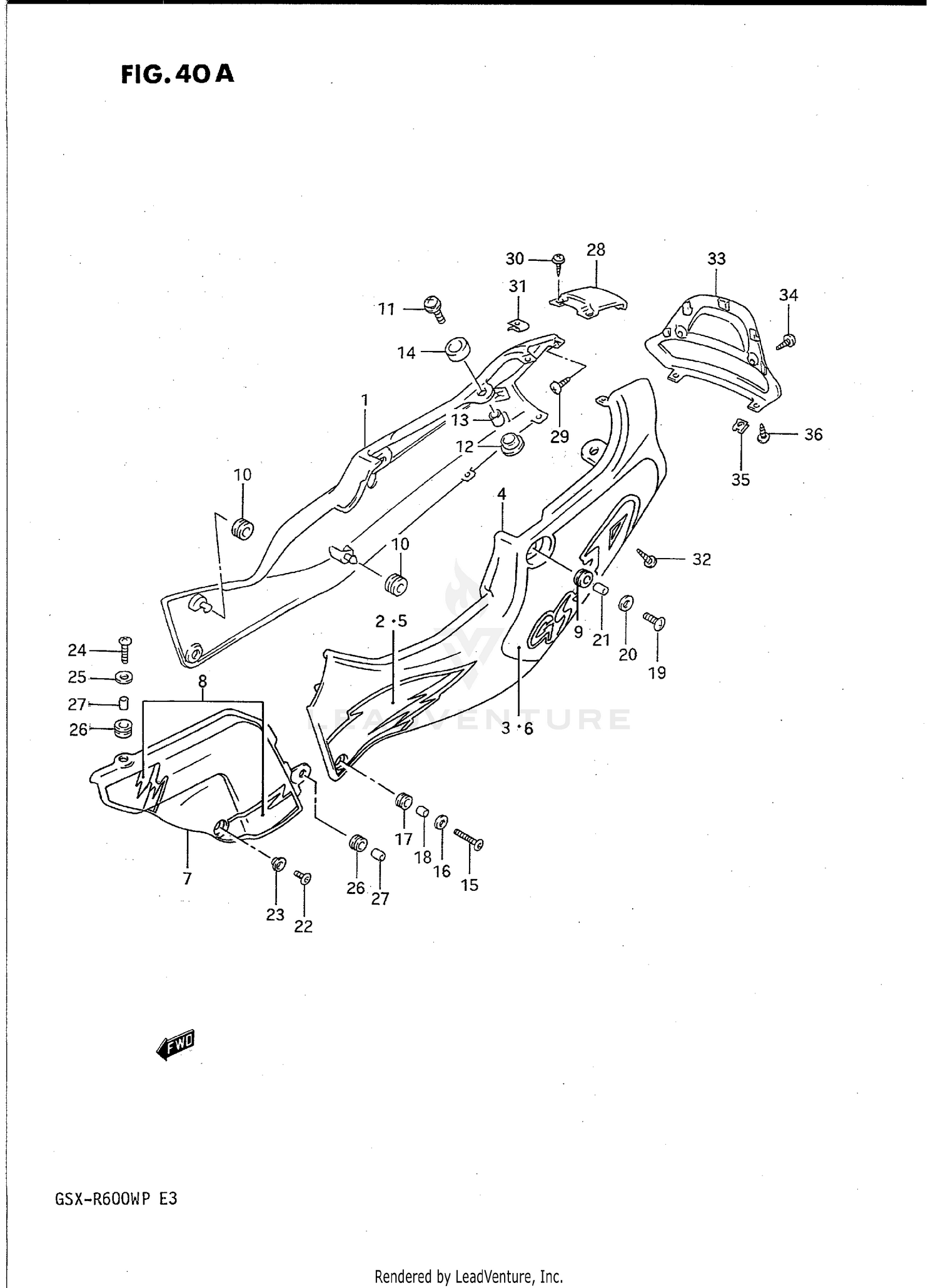

Frame Cover (model P) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (WHITE)
47100-18E20-0JW
|
$302.89 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (BLACK)
47100-18E20-33J
|
$295.78 | ||
|
Unavailable |
|||
|
#2
TAPE, COVER RH
68135-18E10-A8E
|
$33.15 | ||
|
Unavailable |
|||
|
#2
TAPE, COVER RH
68135-18E10-A8F
|
$38.02 | ||
|
Unavailable |
|||
|
#3
TAPE, COVER ZECKEN RH
68136-18E10-A8G
|
$69.69 | ||
|
Unavailable |
|||
|
#3
TAPE, COVER ZECKEN RH
68136-18E10-A8H
|
$65.82 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME LH (WHITE)
47200-18E20-0JW
|
$245.83 | ||
|
Unavailable |
|||
|
#4
COVER, FRAME LH (BLACK)
47200-18E20-33J
|
$295.78 | ||
|
Unavailable |
|||
|
#5
TAPE, COVER LH
68145-18E10-A8E
|
$33.15 | ||
|
Unavailable |
|||
|
#5
TAPE, COVER LH
68145-18E10-A8F
|
$38.02 | ||
|
Unavailable |
|||
|
#6
TAPE, COVER ZECKEN LH
68146-18E10-A8G
|
$70.36 | ||
|
Unavailable |
|||
|
#6
TAPE, COVER ZECKEN LH
68146-18E10-A8H
|
$70.36 | ||
|
Unavailable |
|||
|
#7
COVER, FRAME BODY RH (WHITE)
47500-18E20-0JW
|
$137.86 | ||
|
Unavailable |
|||
|
#7
COVER, FRAME BODY RH (BLACK)
47500-18E20-33J
|
$137.86 | ||
|
Unavailable |
|||
|
#7
COVER, FRAME BODY LH (WHITE)
47600-18E20-0JW
|
$137.86 | ||
|
Unavailable |
|||
|
#7
COVER, FRAME BODY LH (BLACK)
47600-18E20-33J
|
$120.98 | ||
|
Unavailable |
|||
|
#8
TAPE SET, BODY RH
68660-18E10-A8E
|
$40.32 | ||
|
Unavailable |
|||
|
#8
TAPE SET, BODY RH
68660-18E10-A8F
|
$40.32 | ||
|
Unavailable |
|||
|
#8
TAPE SET, BODY LH
68670-18E10-A8E
|
$37.71 | ||
|
Unavailable |
|||
|
#8
TAPE SET, BODY LH
68670-18E10-A8F
|
$40.32 | ||
|
Unavailable |
|||
|
#9
CUSHION
94433-26B00
Superseded by 94433-26B01
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, UPPER
09136-06083
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, CENTER LOWER
45326-17C00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-06143
Superseded by 09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, CENTER UPPER
45149-04A00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FRAME COVER FRONT
09139-06042
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
09160-06006
Superseded by 09160-06084
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.5X9X9)
09180-06011
Superseded by 09180-06263
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SIDE
09139-06050
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
09180-06027
Superseded by 09180-06258
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW (5X14)
09139-05025
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
09169-05013
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, BODY COVER UPPER
09125-06055
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
09160-06039
Superseded by 09160-06109
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
CUSHION
09320-09016
|
$2.45 | ||
|
Unavailable |
|||
|
#27
SPACER (6.5X9X9)
09180-06011
Superseded by 09180-06263
|
$2.57 | ||
|
Unavailable |
|||
|
#28
COVER, FRAME CENTER
47300-17E00-0JW
|
$70.56 | ||
|
Unavailable |
|||
|
#28
COVER, FRAME CENTER
47300-17E00-33J
|
$67.19 | ||
|
Unavailable |
|||
|
#29
SCREW, CENTER
09139-05021
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
03141-14125
Superseded by 03141-1412B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FRONT
09148-04024
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW (4x12)
03541-04125
Superseded by 03541-0412A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, FRAME REAR
47411-17E00
|
$35.17 | ||
|
Unavailable |
|||
|
#34
SCREW
09139-05021
|
$1.88 | ||
|
Unavailable |
|||
|
#35
NUT
09148-05023
Superseded by 09148-05021
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
02142-15125
Superseded by 02142-1512B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
