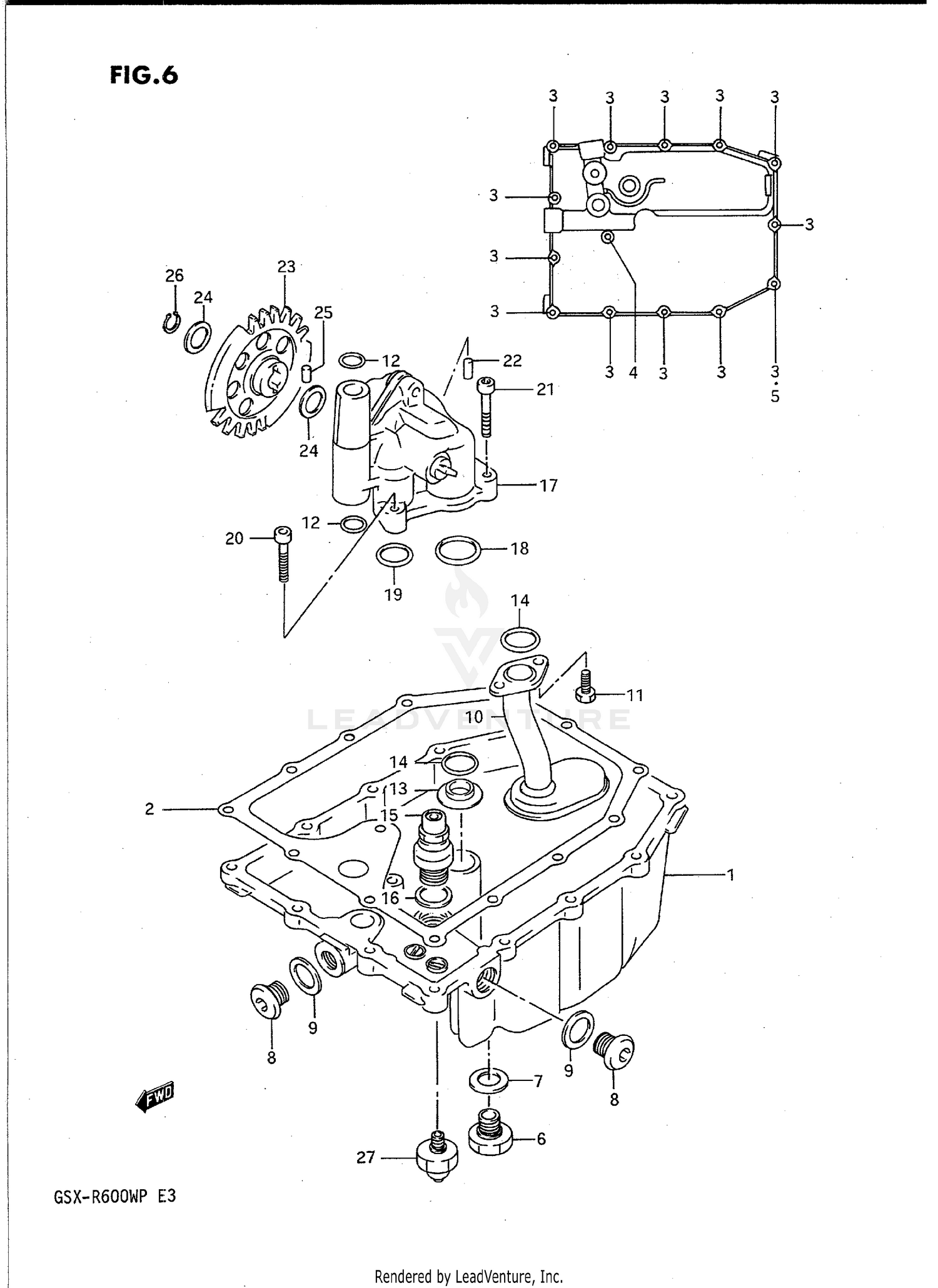

Oil Pan - Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11511-17E00
|
$248.07 | ||
|
Unavailable |
|||
|
#2
GASKET, OIL PAN
11489-17E00
Superseded by 11489-17E01
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-06257
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-06307
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
09168-06024
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLUG, OIL DRAIN
09248-16010
Superseded by 09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
09168-16002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRAINER, ENGINE OIL
16520-17E00
|
$51.06 | ||
|
Unavailable |
|||
|
#11
BOLT (6X16)
09128-06039
|
$0.43 | ||
|
Unavailable |
|||
|
#12
O-RING (D:2.4,ID:11.8)
09280-12012
|
$5.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET, OUTLET
16529-27A01
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING
09280-18009
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE ASSY, OIL RELIEF
16440-17C00
Superseded by 16440-17C10
|
$75.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
09168-16002
|
$2.37 | ||
|
Unavailable |
|||
|
#17
PUMP ASSY, ENGINE OIL
16400-17E00
|
$230.24 | ||
|
Unavailable |
|||
|
#18
O RING
09280-26005
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING
09280-18009
|
$7.31 | ||
|
Unavailable |
|||
|
#20
BOLT
07110-06307
Superseded by 07130-06307
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
NO DESCRIPTION AVAILABLE
07110-06357
Superseded by 07130-06357
|
$2.80 | ||
|
Unavailable |
|||
|
#22
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, OIL PUMP DRIVEN
16332-19C00
|
$83.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
08221-12205
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
09261-05006
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
08331-31126
Superseded by 08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SWITCH ASSY,OIL PRESSURE
37820-33D00
Superseded by 37820-33D11
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
