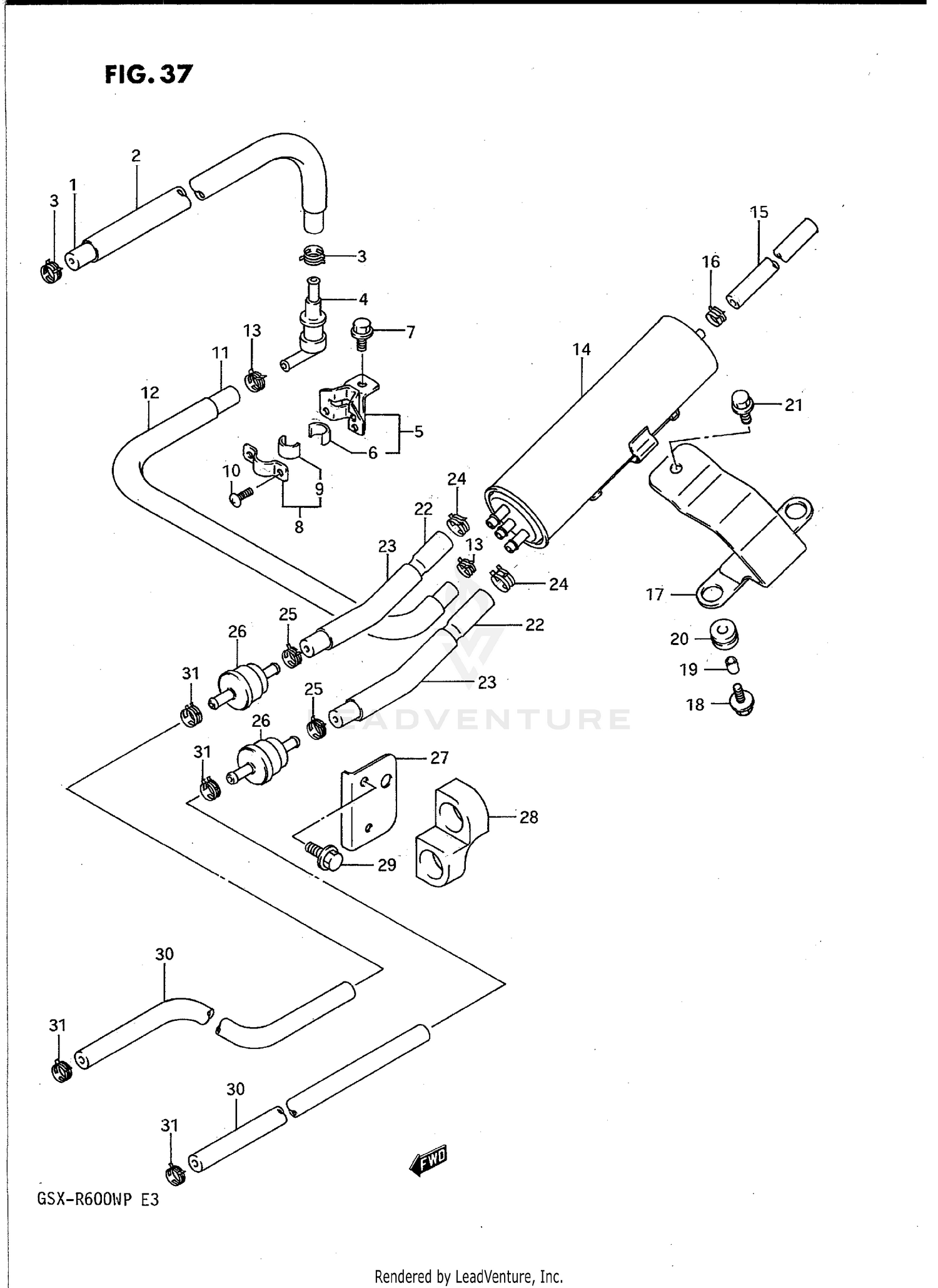

Canister (california Only) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, TANK & BREATHER VALVE
09358-54116-300
Superseded by 09355-54115-600
|
$17.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTORM,FUEL
44461-01D01
Superseded by 44461-24D00
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP (ID:11)
09401-11410
Superseded by 09401-11413
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE,FUEL TANK BREATHER
44240-17C00
|
$73.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, BREATHER VALVE
44890-17E00
|
$7.80 | ||
|
Unavailable |
|||
|
#6
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE,FUEL TANK BREATHER,NO.2
44892-24A00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Unavailable |
|||
|
#10
SCREW
02142-04103
Superseded by 02142-0410A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, TANK & BREATHER VALVE
09358-54116-600
Superseded by 09355-54115-600
|
$17.68 | ||
|
Unavailable |
|||
|
#12
PROTECTOR
44462-26D01
|
$8.77 | ||
|
Unavailable |
|||
|
#13
CLIP (ID:11)
09401-11410
Superseded by 09401-11413
|
$2.80 | ||
|
Unavailable |
|||
|
#14
CANISTER ASSY
17210-17E00
|
$160.48 | ||
|
Unavailable |
|||
|
#15
HOSE, 3 OUT/CANISTER
09343-07502
Superseded by 09343-07501
|
$20.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP (ID:11.5)
09401-12406
Superseded by 09401-11415
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BRACKET, CANISTER
44881-17E00
|
$19.84 | ||
|
Unavailable |
|||
|
#18
BOLT (6X16)
09116-06007
Superseded by 09116-06168
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
09180-06152
Superseded by 09180-06262
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01517-06164
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, CANISTER & PURGE
09359-54111-300
Superseded by 09359-54111-600
|
$28.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR
44462-17E00
|
$9.24 | ||
|
Unavailable |
|||
|
#23
PROTECTOR
44461-17E00
|
$3.14 | ||
|
Unavailable |
|||
|
#24
CLIP (ID:11.5)
09401-12406
Superseded by 09401-11415
|
$2.80 | ||
|
Unavailable |
|||
|
#25
CLIP (ID:11)
09401-11410
Superseded by 09401-11413
|
$2.80 | ||
|
Unavailable |
|||
|
#26
VALVE, CANISTER PURGE
44250-48B00
|
$63.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, PURGE VALVE
44883-17E00
|
$5.39 | ||
|
Unavailable |
|||
|
#28
CUSHION
44882-17C00
|
$8.34 | ||
|
Unavailable |
|||
|
#29
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$2.45 | ||
|
Unavailable |
|||
|
#30
HOSE, TANK & BREATHER VALVE
09354-54115-600
Superseded by 09355-54115-600
|
$17.68 | ||
|
Unavailable |
|||
|
#31
CLIP (ID:11)
09401-11410
Superseded by 09401-11413
|
$2.80 | ||
|
Unavailable |
|||
