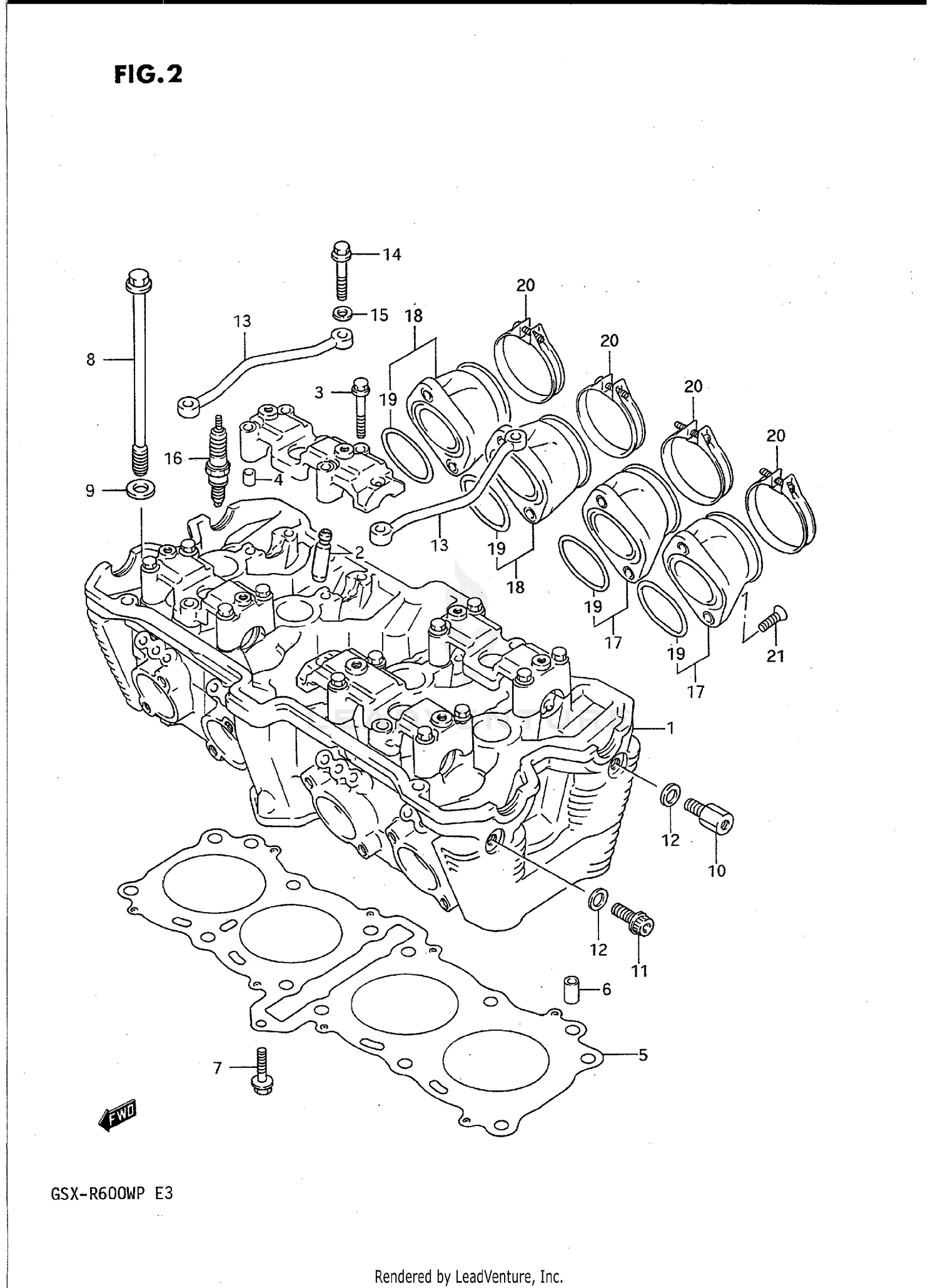

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-18E00
|
$966.29 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER
11100-18E10
|
$966.29 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
11115-17E70
|
$27.98 | ||
|
Unavailable |
|||
|
#3
BOLT (6X45)
09103-06013
Superseded by 09103-06165
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
11141-18E00
Superseded by 11141-18E01
|
$114.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-11189
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01517-06305
Superseded by 01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (10X160)
09103-10272
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09160-10082
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09119-08079
Superseded by 09119-08079-XC0
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-08165
Superseded by 07120-0816A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
09168-08015
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, OIL
11131-17E00
|
$47.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
.WASHER
08322-21064
Superseded by 08322-0106B
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG,SPARK (CR9EK)
09482-00410
|
$14.86 | ||
|
Unavailable |
|||
|
#16
SPARK PLUG (DENSO,U27ESR-N)
09482-00411
Superseded by 09482-00459
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG,SPARK (CR8EK)
09482-00412
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG,SPARK (U24ETR)
09482-00413
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR10EK)
09482-00462
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (ND,U31ETR)
09482-00463
|
$16.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE ASSY,INTAK
13101-17E10
Superseded by 13101-17E11
|
$71.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
NO DESCRIPTION AVAILABLE
13102-17E10
Superseded by 13102-17E11
|
$51.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING
09280-44007
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
.CLAMP
09402-52208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW (6X16)
09126-06014
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
